Epicor Rest API - Fails to Upload Image Files

Kinetic ERP
, ,
1

Hi Team, I am getting the following error when images uploaded to epicor…Unable to POST to Ice.BO.AttachmentSvc/UploadFile - 0 Unable to write data to the transport connection: An existing connection was forcibly closed by the remote host. Note: It works fine for very small text file…

try
{
    InitializeEpicRestAPI("V1");
    //Read file from Disk into a byte array
    Byte[] bytes = Function.FileToByteArray(filePath);
    //while (stream.DataAvailable == true)
    //{
    //    bytes[i] = ((byte)stream.ReadByte());
    //    i++;
    //}
    //data = System.Text.Encoding.ASCII.GetString(bytes, 0, i);

    String fileData = Convert.ToBase64String(bytes);
    //int i = 0;

    //Create the File Object to be uploaded to Epicor
    var file = new
    {
        fileName = System.IO.Path.GetFileName(filePath),
        data = fileData,
        docTypeID = "ECO",
        parentTable = "ProjectPhase",
        metadata = new
        {
            _Author = "Epicor PDF Importer",
            _TableName = "Erp.Project",
            _TableSysRowID = Guid.NewGuid()
        }
    };

    //System.Net.ServicePointManager.Expect100Continue = false;
    //System.Net.ServicePointManager.SecurityProtocol = SecurityProtocolType.Tls | SecurityProtocolType.Tls11 | SecurityProtocolType.Tls12;
    //System.Net.ServicePointManager.ServerCertificateValidationCallback = delegate (object sender, X509Certificate certificate, X509Chain chain, SslPolicyErrors sslPolicyErrors) { return true; };
    //Upload the file using the Attachment BO
    //EpicorRestV1.BearerToken = "";   //AsyncCallback

    var addedDocFile =  EpicorRestV1.DynamicPost("Ice.BO.AttachmentSvc", "UploadFile", file);

    //addedDocFile.ds.ToString()
    //Create the Epicor XFileRef
    var xFileRef = new { Company = Company, XFileName = addedDocFile.ds.ToString(), XFileDesc = file.fileName, DocTypeID = "ECO" };
    var addedXRef = EpicorRestV1.DynamicPost("Ice.BO.XFileRefSvc", "XFileRefs", xFileRef);

    // Once the XFileRef exists attach it to a UD103 record.
    var ProjPhaseAttch = new
    {
        Company = Company,
        ProjectID = ProjectID,
        PhaseID = PhaseID ,
        FileName = addedXRef.XFileName,
        DrawDesc = addedXRef.XFileDesc,
        DocTypeID = file.docTypeID,
        ForeignSysRowID = Guid.NewGuid(),
        RowMod = "U"
    };
    dynamic newUDAttch = EpicorRestV1.DynamicPost("Erp.BO.ProjectSvc", "ProjPhaseAttches", ProjPhaseAttch);

    //return strRetValue;

}
catch (Exception e)
{
    //Console.WriteLine(e + "");
    strResult = e.Message;
}
2

Hi… Any of you can advise on my query.

3

Generate your json and post it via swagger or postman.

Verify it’s not something with the library you are using.

4

thanks for reply… I am not sure what is causing issue but when i try as below, i could post document with out error…
try
{ var addedDocFile1 = EpicorRestV1.DynamicPost(“Ice.BO.AttachmentSvc”, “UploadFile”, null); }
catch
{ }
var addedDocFile = EpicorRestV1.DynamicPost(“Ice.BO.AttachmentSvc”, “UploadFile”, file);

Always when i run first time, i get error when dynamicpost method called, so i tried to use try catch mechanism to come out from the error. following to that , i call same method and also pass file (bytes) parameter. It’s executing successfully.

5

I have one more query related to file attachment. Is there any method exposed to download the file from attachment.

6

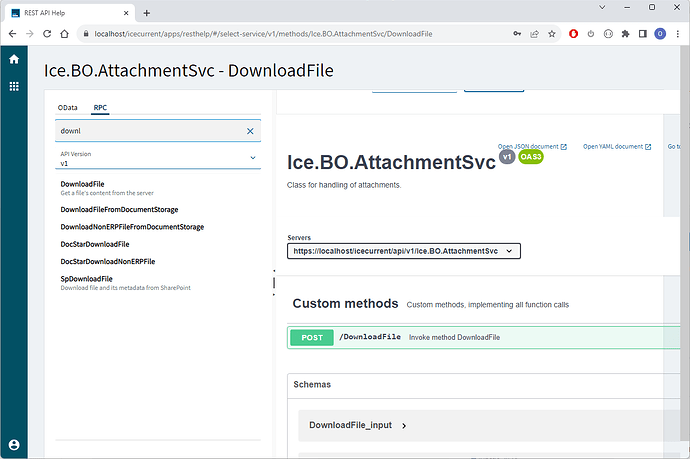

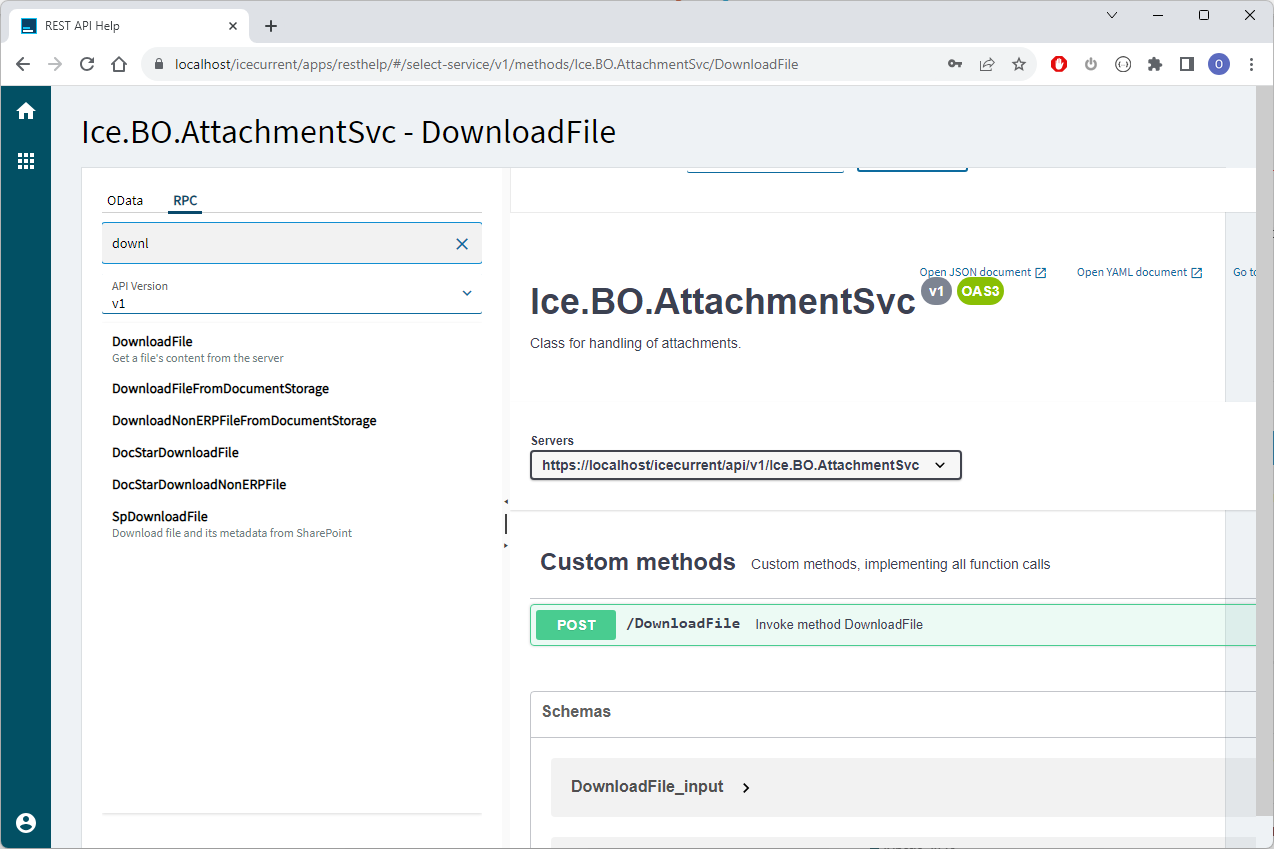

Go to the REST help for that Attachment service and search for the methods containing the word “download”, there will be several:

image1274×849 49.4 KB

1 Like
7

Thank you very much quick support… I used the following code to download file from file attachment table
var file = new
{
xFileRefNum = RefNumber
};
var docFile = EpicorRestV1.DynamicPost(“Ice.BO.AttachmentSvc”, “DownloadFile”, file);

if (((Newtonsoft.Json.Linq.JContainer)docFile).HasValues)
{
Byte[] byteArray = (Byte[])(((Newtonsoft.Json.Linq.JProperty)((Newtonsoft.Json.Linq.JContainer)docFile).First).Value);
File.WriteAllBytes(filePath, byteArray);
}
