Display a part image in a customization - Example Video

Experts' Corner
,
1

Here’s an example video of displaying a part image in a dashboard customization. The same idea can be applied to any screen or image type.

And of course the code:



public class Script
{
	// ** Wizard Insert Location - Do Not Remove 'Begin/End Wizard Added Module Level Variables' Comments! **
	// Begin Wizard Added Module Level Variables **

	private EpiDataView edvV_PartImage_1View;
	// End Wizard Added Module Level Variables **

	// Add Custom Module Level Variables Here **

	Erp.Adapters.ImageAdapter imageAdapter;

	public void InitializeCustomCode()
	{
		// ** Wizard Insert Location - Do not delete 'Begin/End Wizard Added Variable Initialization' lines **
		// Begin Wizard Added Variable Initialization

		this.edvV_PartImage_1View = ((EpiDataView)(this.oTrans.EpiDataViews["V_PartImage_1View"]));
		this.edvV_PartImage_1View.EpiViewNotification += new EpiViewNotification(this.edvV_PartImage_1View_EpiViewNotification);
		// End Wizard Added Variable Initialization

		// Begin Wizard Added Custom Method Calls

		// End Wizard Added Custom Method Calls

		imageAdapter = new Erp.Adapters.ImageAdapter(oTrans);
		imageAdapter.BOConnect();
	}

	public void DestroyCustomCode()
	{
		// ** Wizard Insert Location - Do not delete 'Begin/End Wizard Added Object Disposal' lines **
		// Begin Wizard Added Object Disposal

		this.edvV_PartImage_1View.EpiViewNotification -= new EpiViewNotification(this.edvV_PartImage_1View_EpiViewNotification);
		this.edvV_PartImage_1View = null;
		// End Wizard Added Object Disposal

		// Begin Custom Code Disposal
		imageAdapter.Dispose();
		imageAdapter = null;
		// End Custom Code Disposal
	}

	private void edvV_PartImage_1View_EpiViewNotification(EpiDataView view, EpiNotifyArgs args)
	{
		// ** Argument Properties and Uses **
		// view.dataView[args.Row]["FieldName"]
		// args.Row, args.Column, args.Sender, args.NotifyType
		// NotifyType.Initialize, NotifyType.AddRow, NotifyType.DeleteRow, NotifyType.InitLastView, NotifyType.InitAndResetTreeNodes
		if ((args.NotifyType == EpiTransaction.NotifyType.Initialize))
		{
			if ((args.Row > -1))
			{
				var imageBytes = imageAdapter.GetOriginalImage(view.dataView[args.Row]["Image_ImageID"].ToString());
                System.IO.MemoryStream ms = new System.IO.MemoryStream(imageBytes);
				partIb.Image = System.Drawing.Image.FromStream(ms);
			}
		}
	}
6 Likes
2

Thanks great video! :grinning:

But I guess I was looking for (and maybe also for the BAQreports) is that the thumbnail of the image be able to be a BAQ column…

Like add an image field to the BAQ ? so the images get shown on each line, not by clicking a line and show then the image…(but thanks it is a good start! ) So the reporting could use this as well… (like a report showing customer parts list with their pictures in a dashboard, or printed)

Pierre

Pierre

3

Maybe the Image Column wizard could create the foundation, and some custom code would replace the image with one from the file referenced.

4

There are two ways to get it into a BAQ report.

The easy way is to make a subreport that uses a data source that reads from the database directly. You could pass the subreport the image id and have it display the part image. The great thing about this method is it’s a generic subreport that can be reused any place you wanted to display an image like travelers or employee badges.

The other approach is to add a calculated field to the baq and append the image data to the filed in a GetList post process directive. Something like this:

            using (var imageSvc = Ice.Assemblies.ServiceRenderer.GetService<Erp.Contracts.ImageSvcContract>(Db))
            {
                var resultDt = result.Tables["Results"];
                foreach (DataRow row in resultDt.Rows)
                {
                    row["Calculated_ImageContent"] = Convert.ToBase64String(imageSvc.GetOriginalImage(row["Image_ImageID"].ToString()));

                }

            }


1 Like
6

How do you store the images in the database? Or can you store them in a UNC location?

7

Image Maintenance

2 Likes
8

Awesome!
Not sure I should go down this rabbit hole but it will be ok for TESTING.
Maybe i’ll work on compressing images before I get started.

Would be ideal for it to search UNC location with client access or store them as files on the server in my case, then I can have them updated automatically as they change.

1 Like
9

You might find this of interest too:

https://www.epiusers.help/t/images-from-alternate-storage-instead-of-db-blobs/107003

10

If you didn’t see my reply as we posted at the same time, look up 1 post.

11

I didnt read your post yet, but we currently attach PDF’s with UNC link as attachments, and I could DMT those in regardless if the JPG image exists, then have a button click to open it.
If a button can click it, im sure it can open and display OnLoad and I can get what I would like out of it also.

12

Just remember, you want be able to do UNC paths in the new UX / UI.

May have to come up with an alternate plan.

13

Good point!
UNC looks like it does work as a linked “File Attachment” in 2022.2 Kinetic.
You know anything more specific why it wont work in the future? I might go down this route because i can DMT those in.

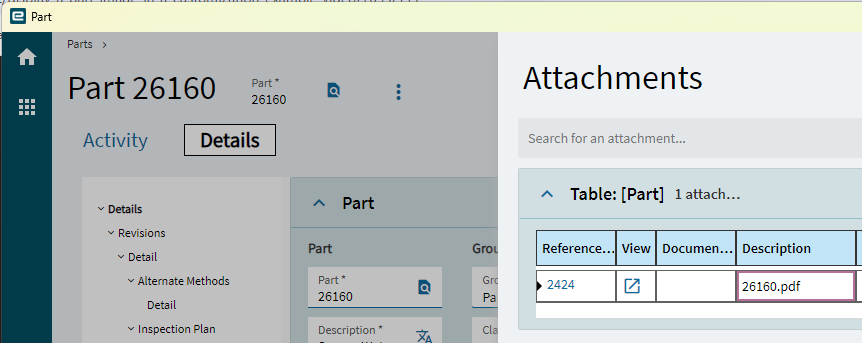

image862×343 22.5 KB

1 Like
14

Not in the browser, unless you install the Edge Client.

HTTP works with File Attachment links without the Edge Client. With HTTP, images/documents will cache in the browser, and they can be used by other systems other than Kinetic. Images/Documents in the database use more memory on your SQL Server and makes you a “noisy” neighbor in the cloud.

:takeout_box: for thought.

2 Likes
15

I think that really depends on the scale, but I see your point.

1 Like
