Panel Card Grid

So far as I can tell, this is the same as the Grid component.

Kinetic Control Compendium

Grid The formation of each driver’s starting position at the beginning of the ra-- …ope, nope. Not that one. Expandable container that displays a grid and allows interaction with the grid using additional components in the panel card header. [image] Property Group Property Description Basic Id Unique identifier for the control Basic Label Text Sets the Title of the grid found on the Panel Header. (Fig. A) Behavior On Panel Card Expand Hook into an event which o…

[hmwillett (Hannah Willett)]

Part Rev Description

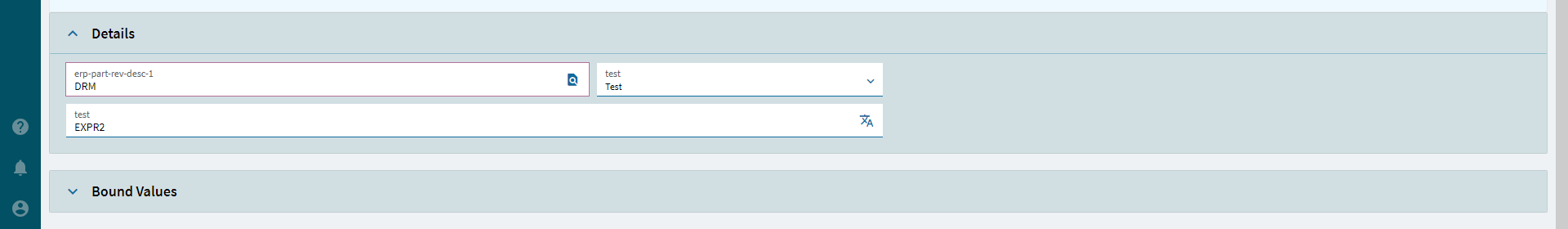

Allows a user to configure Part, Revision, and Description controls in a single, grouped widget.

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Basic	Label Part	Sets the label within the control for the Part. (Fig. A)
Basic	Label Revision	Sets the label within the control for the Rev. (Fig. A)
Basic	Label Description	Sets the label within the control for the Desc. (Fig. A)

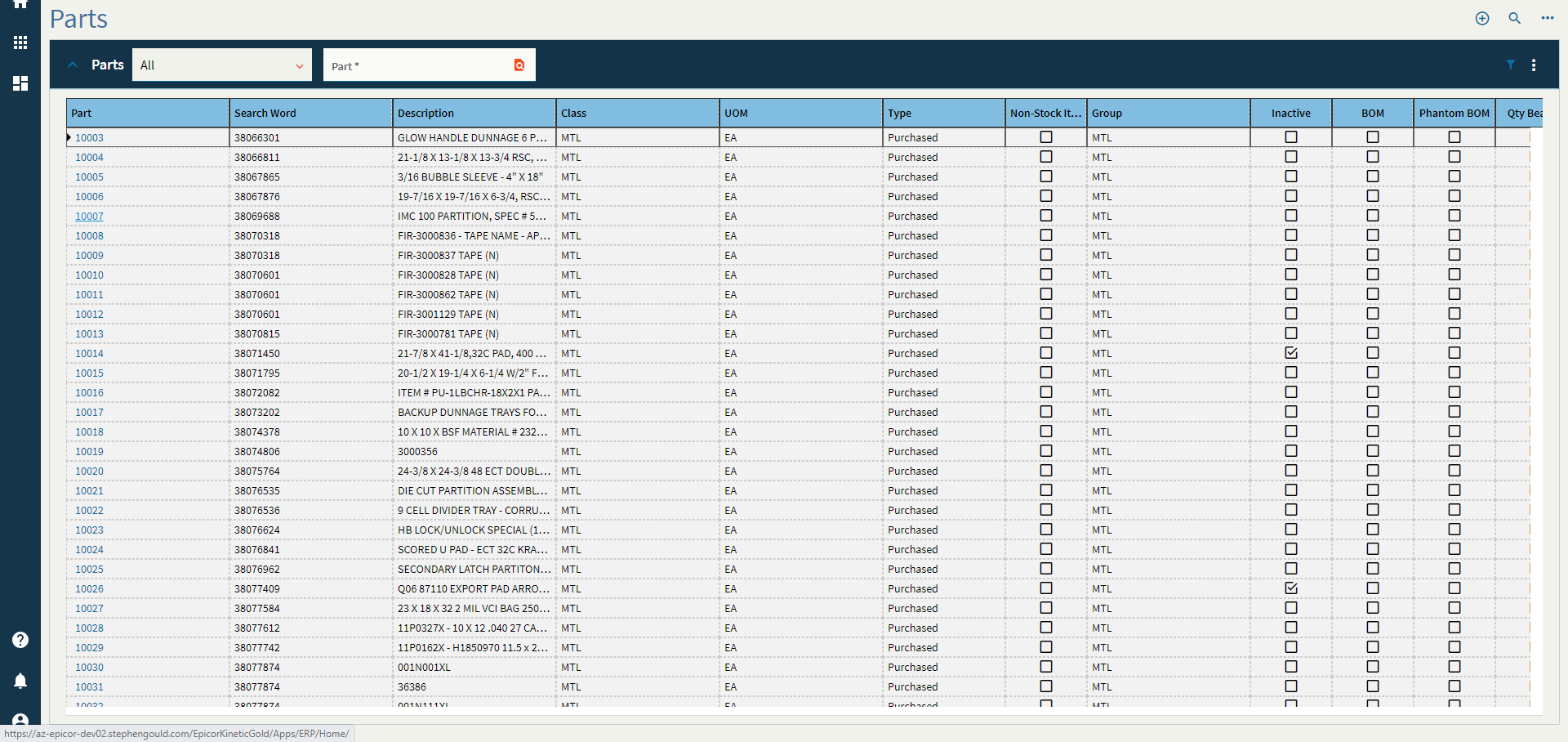

Behavior	On Search Click	Allows you to create an event when the search is clicked. This will override the base part search wired to this control. You will need to define the search params and bind the values manually.
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. B)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column. This will not display any data in the binding, but can be used to control the… control, lol. For example, you can use the EpBinding for OnClick events or Row Rules, etc.
Data	EpBinding PartNum	Binding to store the part number. Format: DataView.Column.
Data	EpBinding RevisionNum	Binding to store the revision num. Format: DataView.Column.
Data	EpBinding PartDesc	Binding to store the part description. Format: DataView.Column. Have the parts on my desc by noon.
Data	Allow Custom	Allows for a custom value to be entered into the Rev.
Layout	Alignment	Sets the alignment for the control. Does not work.
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
State	Auto Focus	When enabled, the control is automatically focused on creation.

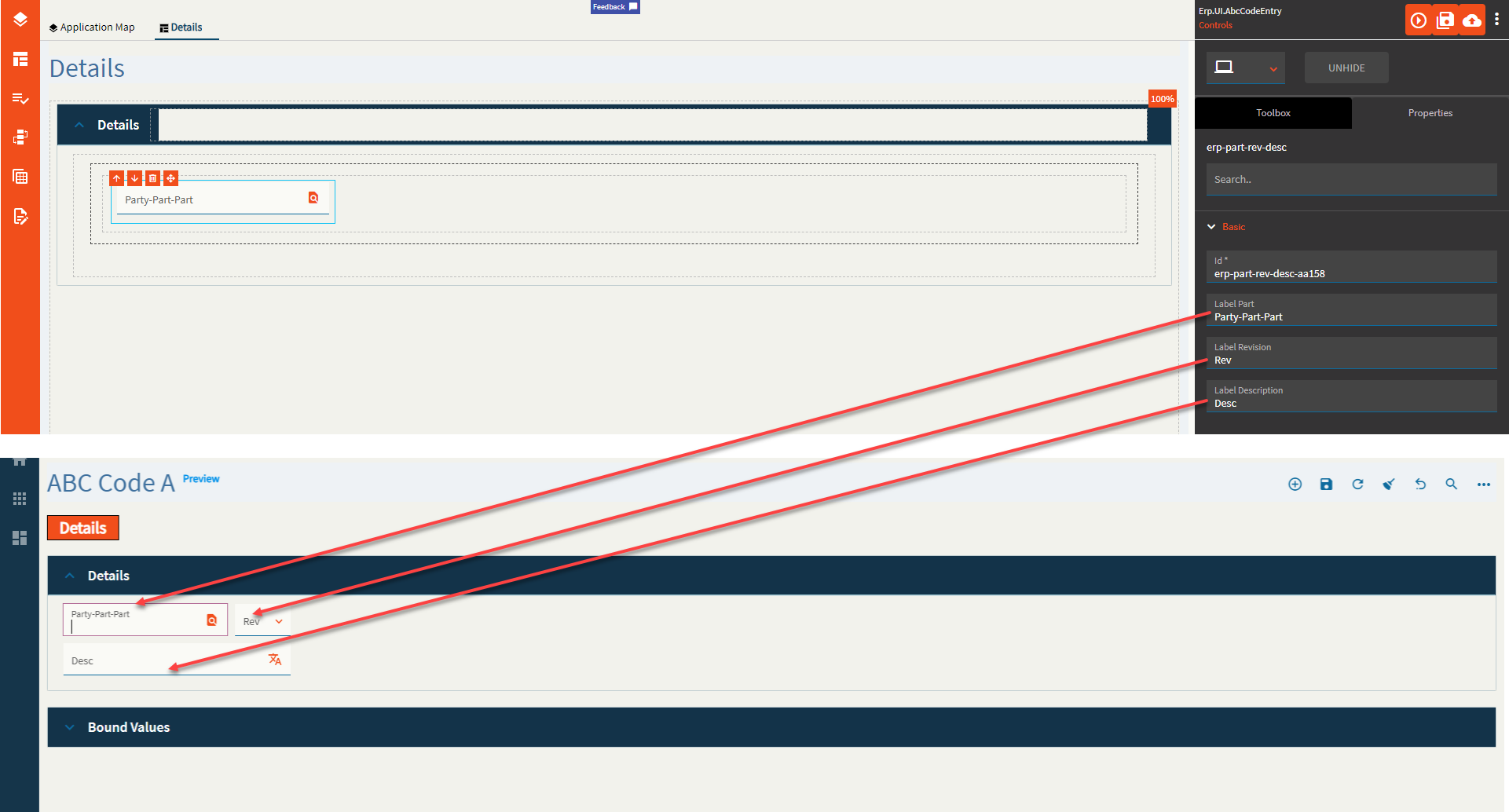

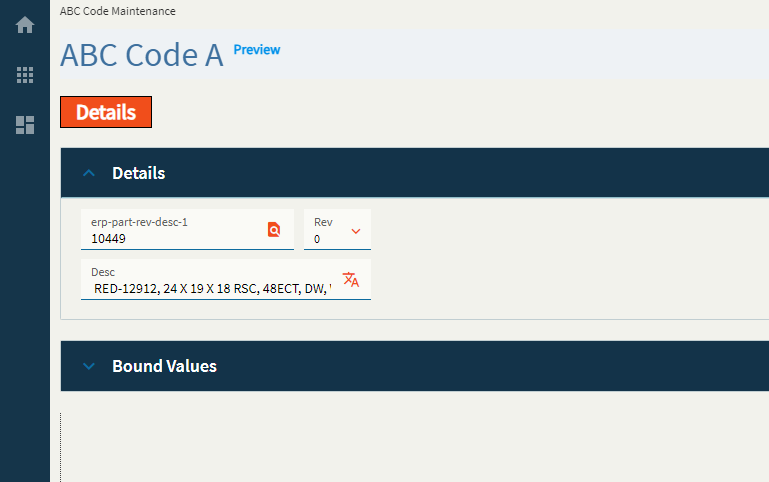

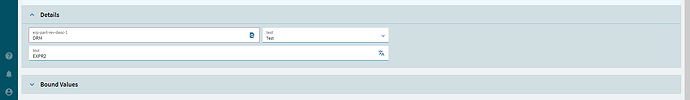

Figure A: Label Texts

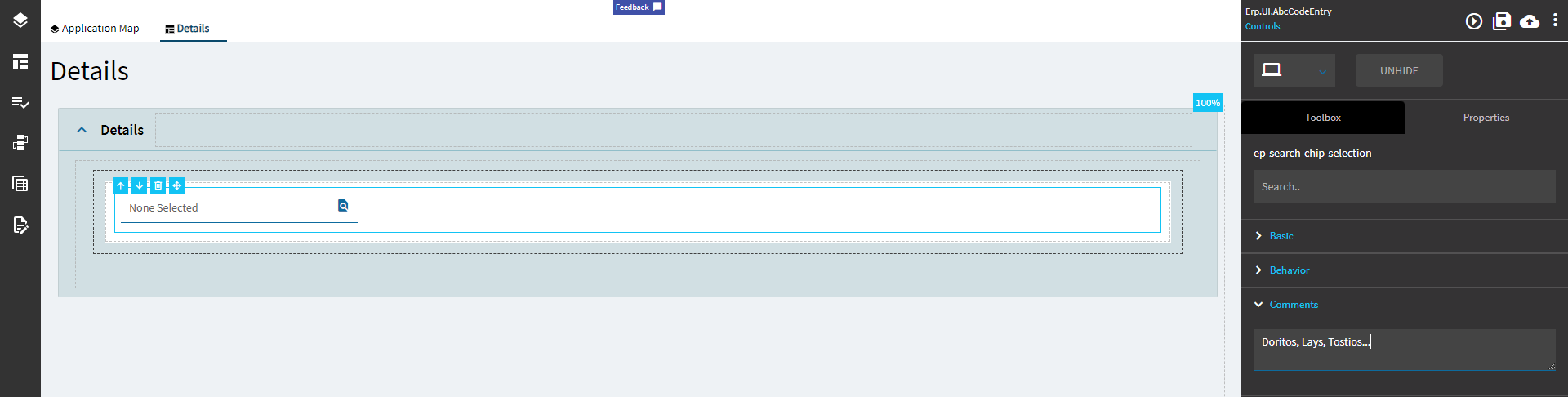

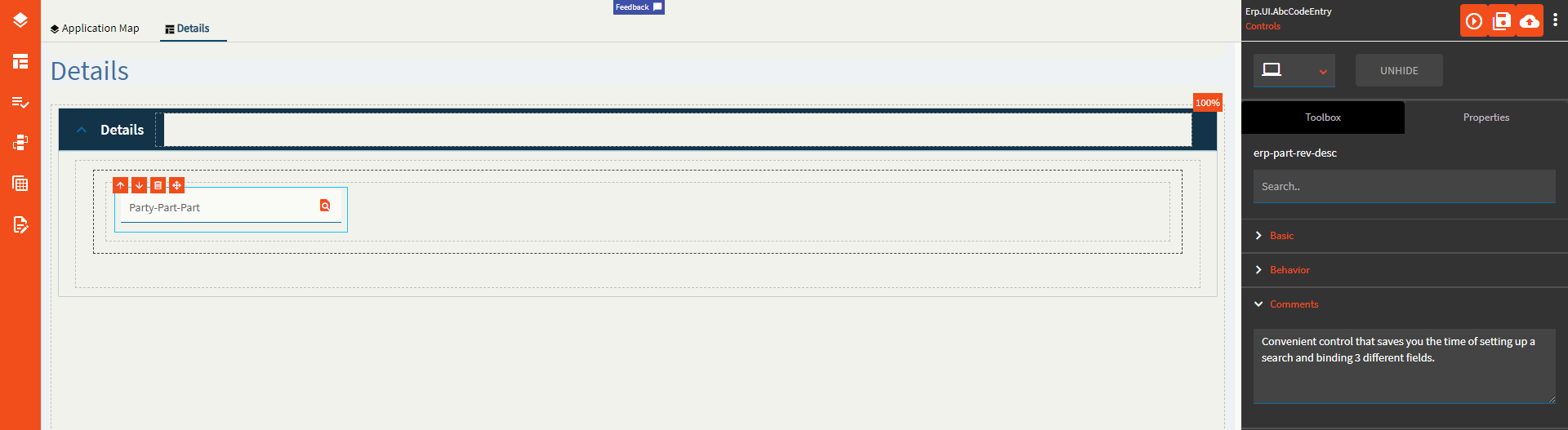

Figure B: Comments

[hmwillett (Hannah Willett)]

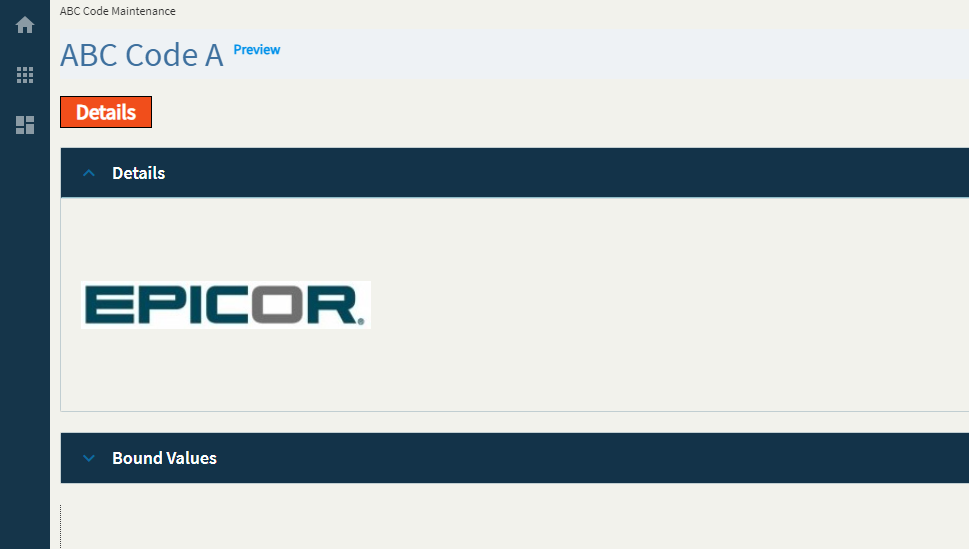

Picture Box

Allows a user to display a picture from various sources.

(Yes–the logo is old. Was the first image I found and was too lazy to find another!)

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Basic	Label Text	Sets the label within the control. Doesn’t do anything.
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. A)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column.
Layout	Width	Sets the specific width (pixels) for the control. (Fig. B)
Layout	Height	Sets the specific height (pixels) for the control. (Fig. B)
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
Advanced	Image Fill Type	Sets the type for the img tag to render. Valid options include: imageBlob, url, iconClass, fileStore. (Fig. C)
Advanced	Image Style	Sets the image style. Valid options include: None*, Circle, and Rounded Corners. Note, that if you select Circle or Rounded Corners, there’s no going back to None. You will need to delete the Picture Box and make a new one. (Fig. D)
Advanced	Hide Border	Check this to hide the border. This will also make the image fill the shape of where the border used to be. (Fig. E)
Advanced	Image Fill Type	Set the fill type. Zoom will zoom the image to fill all available space. Fit shows the whole image and leaves unused space blank. (Fig. F)
Advanced	Image	Set the source of the image. For imageBlob and fileStore, these will be bindings such as Image.ImageContent and Image.ImageSysRowID respectively. Url will hold, well, a URL. The classIcon type will be in the format of “mdi mdi-name” Example: mdi mdi-shark-off. Please put your phone in shark mode while on the boat. Thank you. Whatever data ends up here is what will show up in the binding. Alternatively, you can leave this blank and push the data into whatever the control is bound to.

Figure A: Comments

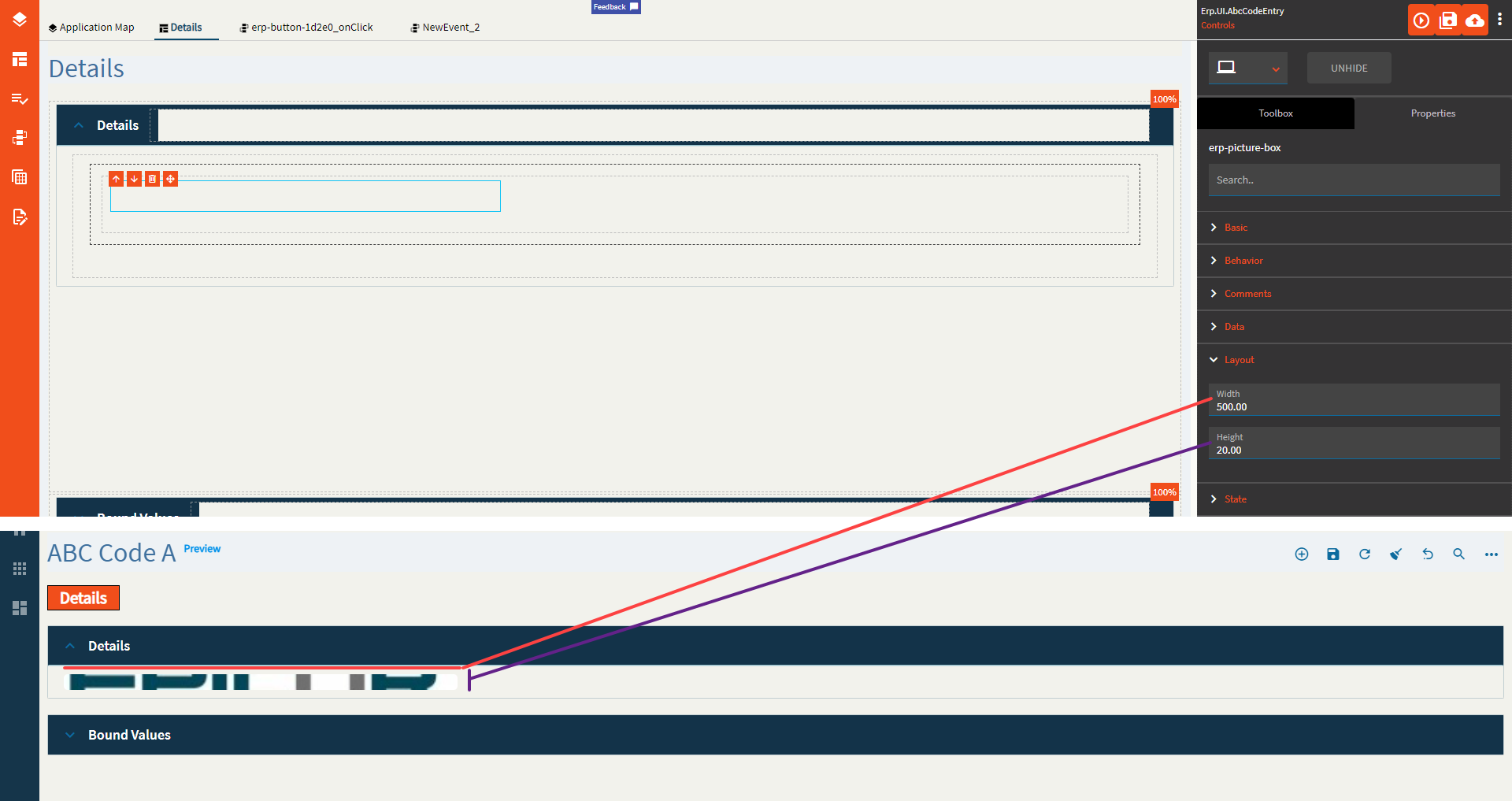

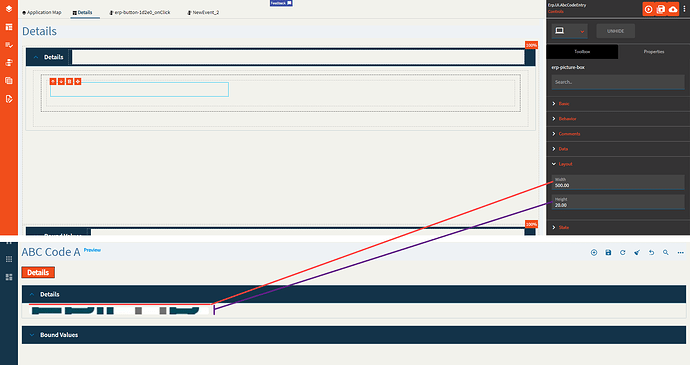

Figure B: Dimensions

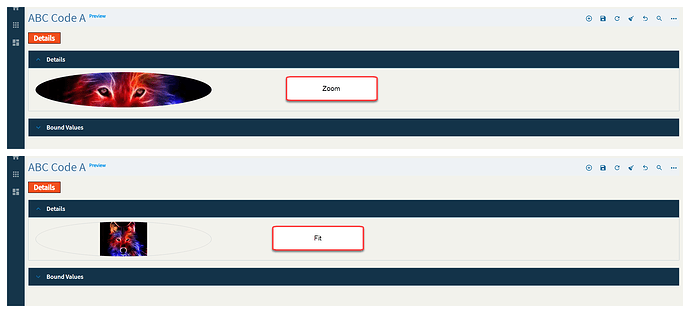

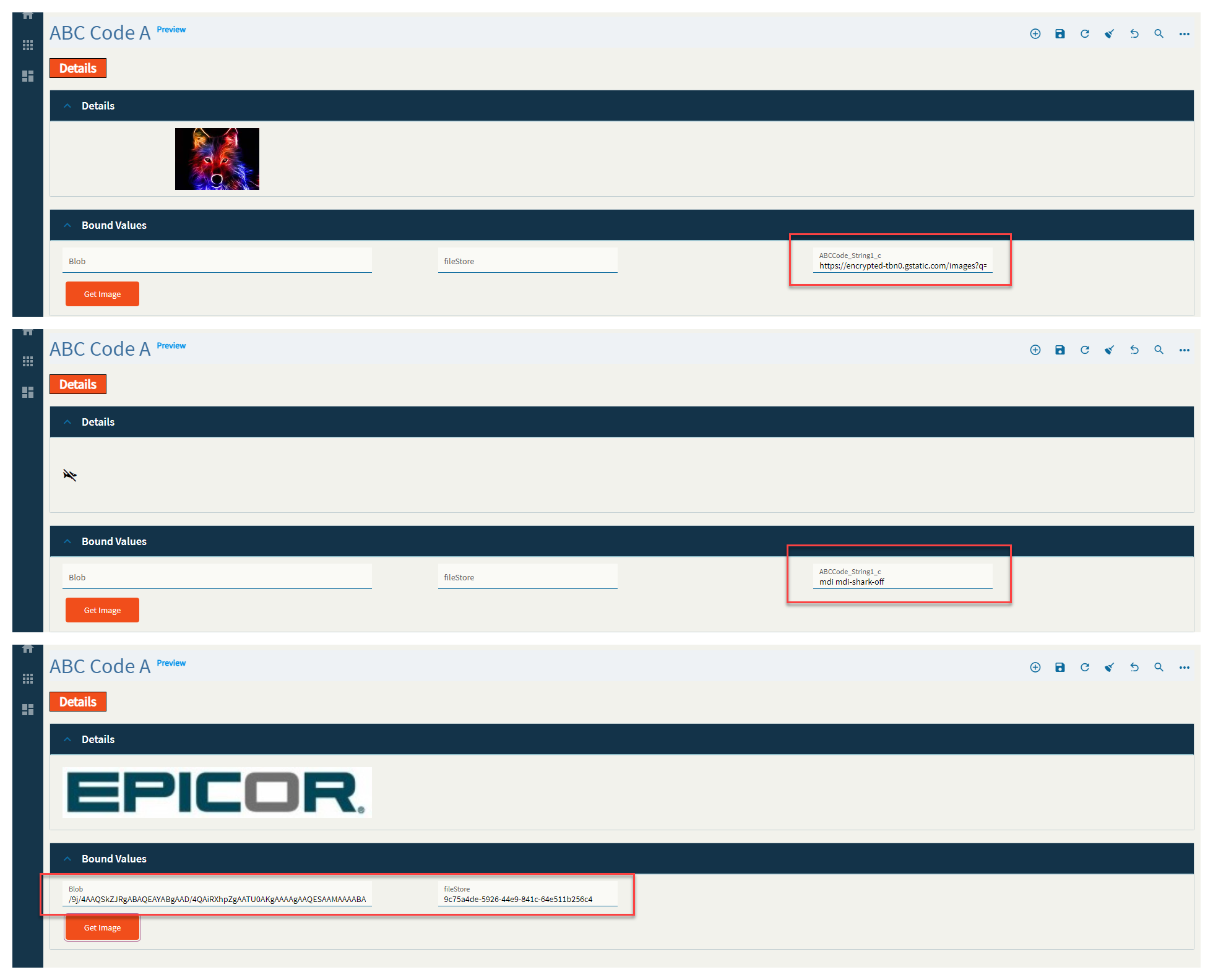

Figure C: Image Fill Type

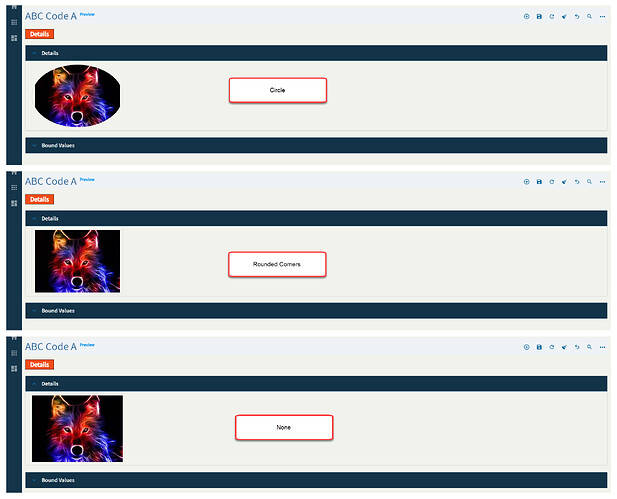

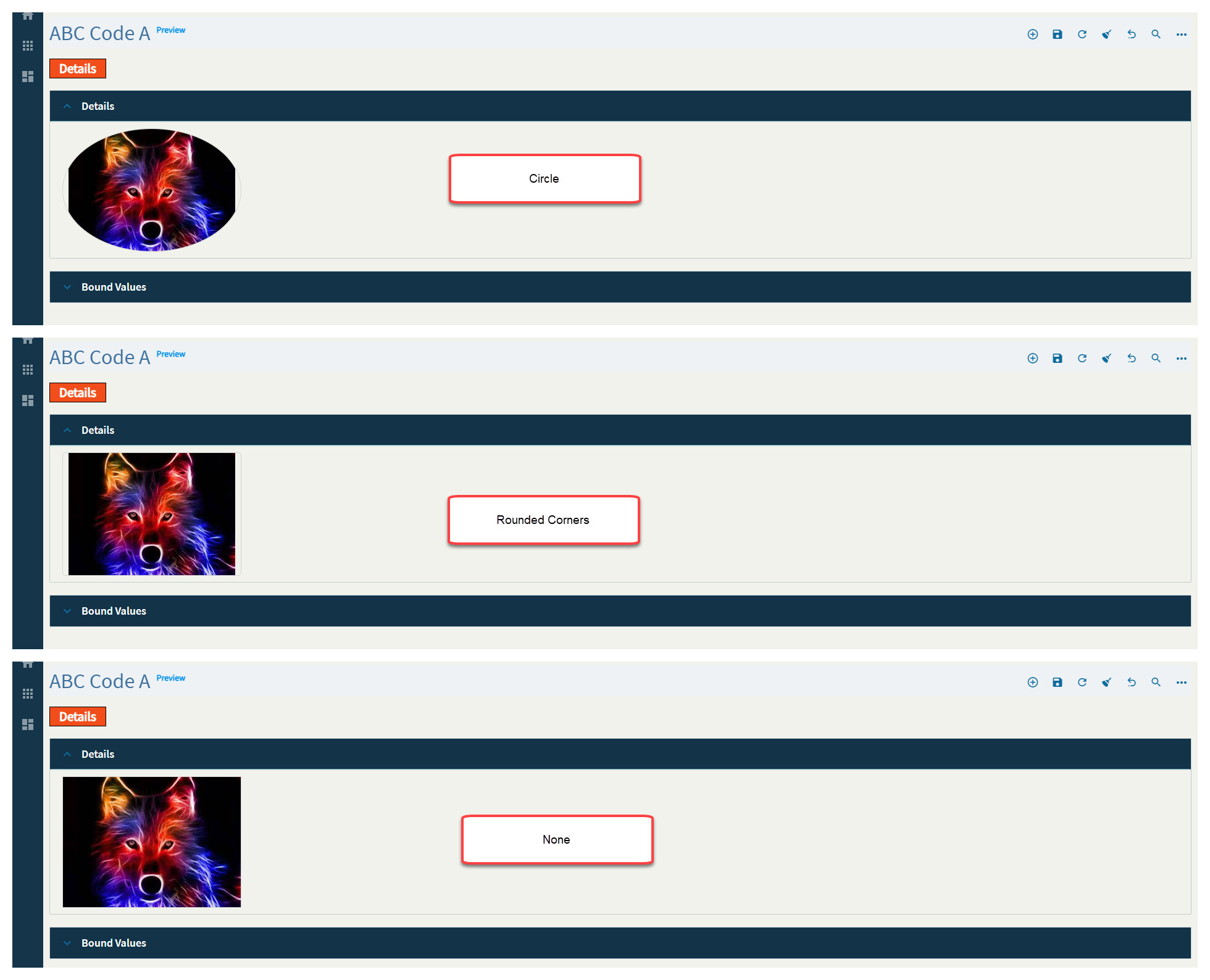

Figure D: Image Style

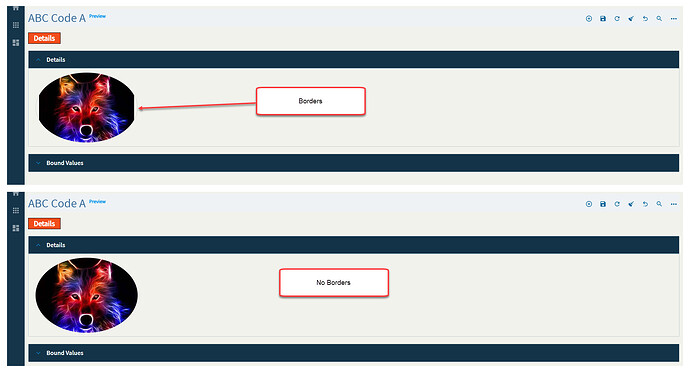

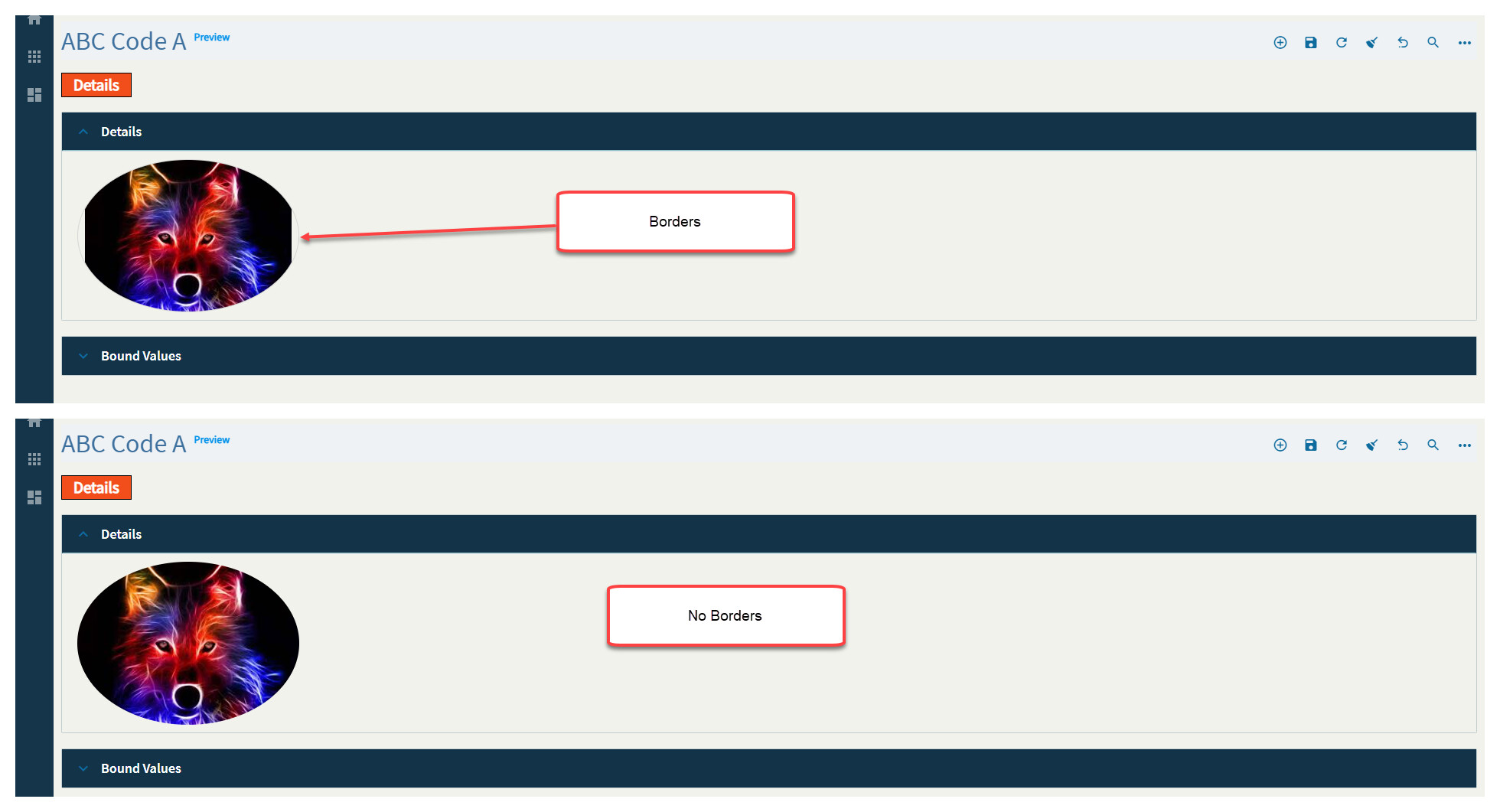

Figure E: Hide Border

Figure F: Image Fill Type

[hmwillett (Hannah Willett)]

Quantity UOM

This control is a combination of a numeric box and combo combined into one control.

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. A)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column.
Data > Quantity Model > Basic	Qty Label Text	Sets the label for the quantity portion of the control. (Fig. B)
Data > Quantity Model > Data	Qty EpBinding	Sets the data binding for the quantity potion of the control. Format is DataView.Column.
Data > Quantity Model > Advanced	All Properties	These are reviewed in the advanced section of the numeric control
Data > Combo Model > Basic	Combo Label Text	Sets the label of the combo portion of the control. (Fig C.)
Data > Combo Model > Data	EpBinding Text Column	Defines the column to get the label text value from, at least it’s supposed to. Narrator: It does not.
Data > Combo Model > Data	Combo EpBinding	Sets the data binding for the combo potion of the control. Format is DataView.Column.
Data > Combo Model > Reusable Combo	All Properties	Nothing needs to be set here. It pulls in the UOMs by default by using some unknown magic; it has some preset filters, but no known datasource. #Shrug If you care to override it, review the Reuseable Combo section of the Combo control here.
Data > Combo Model > Advanced	All Properties	Nothing needs to be set here. It pulls in the UOMs by default by using some unknown magic; it has some preset filters, but no known datasource. #Shrug If you care to override it, review the Reuseable Combo section of the Combo control here.
Layout	Alignment	Sets the alignment of the control. Does not seem to work.
State	Personalizable	If true, a user can personalize this component(hide/show)
—	—	—
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
State	Auto Focus	When enabled, the control is automatically focused on creation.

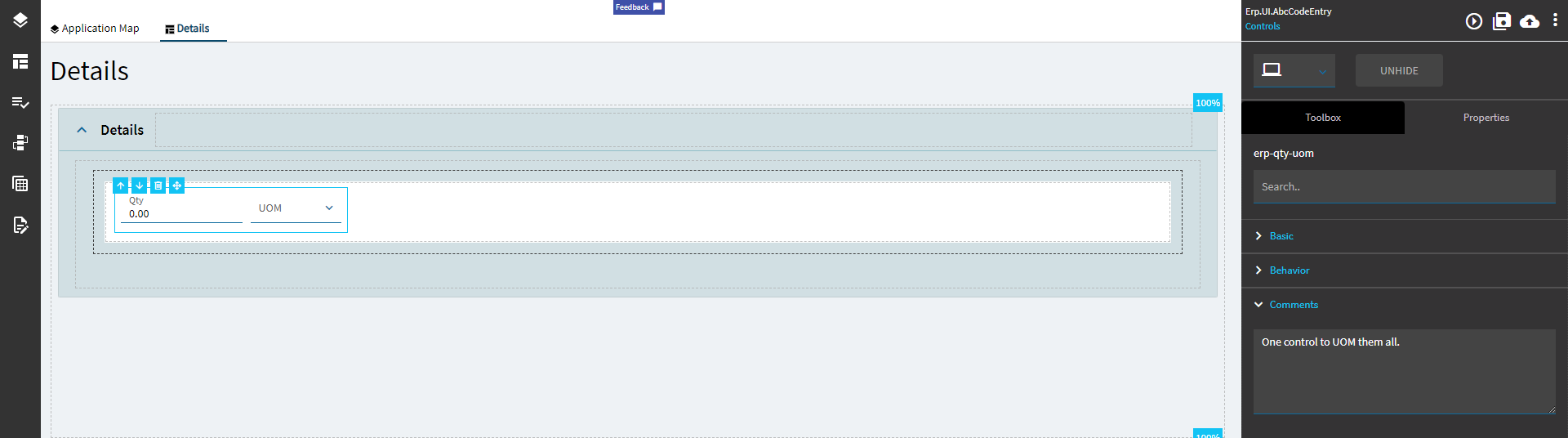

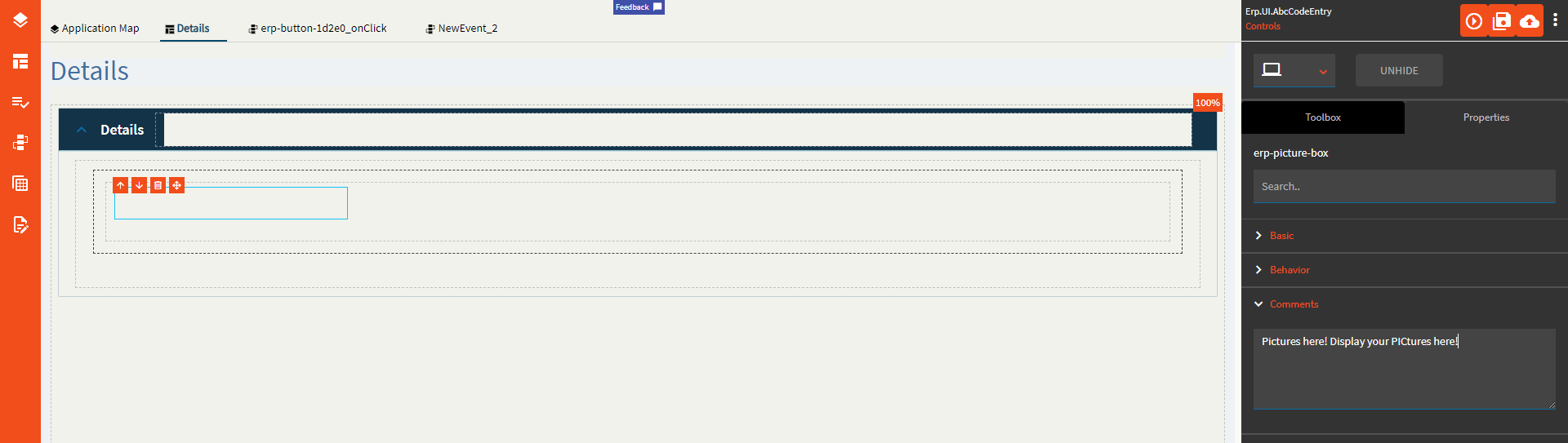

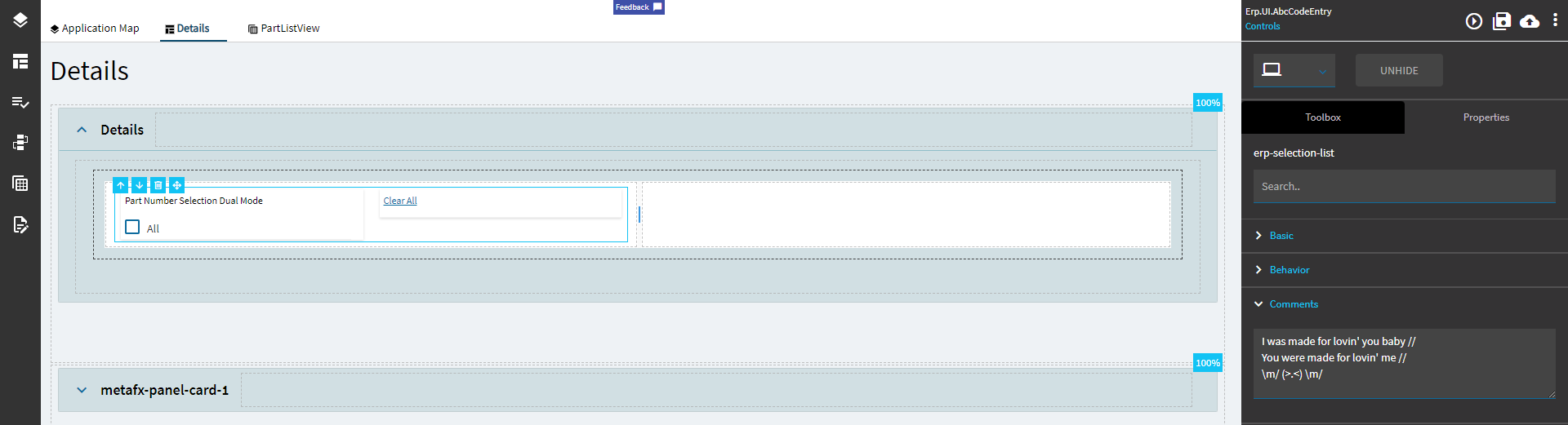

Figure A: Comments

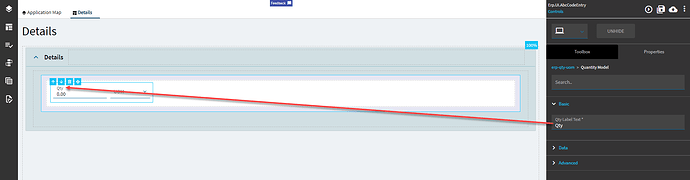

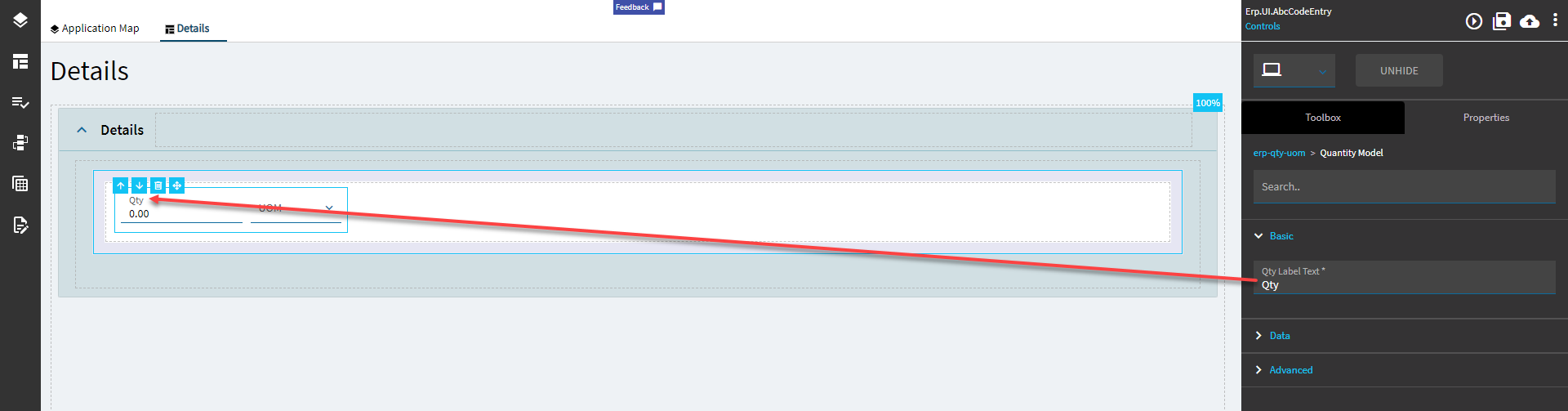

Figure B: Qty Label Text

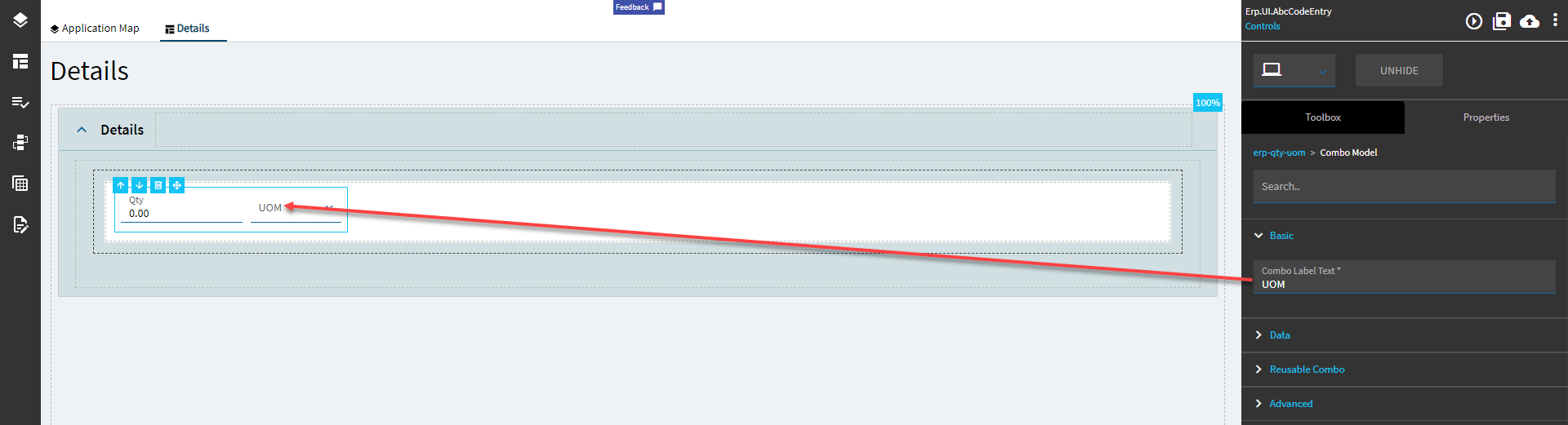

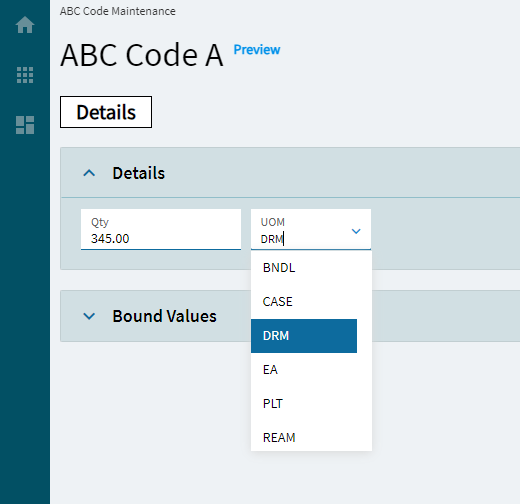

Figure C: Combo Label Text

[hmwillett (Hannah Willett)]

Radio Button

Allows a user to choose only one of a predefined set of mutually exclusive options.

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. A)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column.
Layout	Width	Sets the specific width (pixels) for the control. (Fig. B)
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
State	Auto Focus	When enabled, the control is automatically focused on creation.
State	Highlight Selected	Emboldens the label of the selected item. (Fig. C)
Advanced	Value Field	Defines what data object to use for the value. Options include value and label
Advanced	Label Field	Defines what data object to use for the label. Options include value and label
Advanced	Vertical Align	Sets the radio buttons vertically. (Fig. D)
Advanced > Data	Label	Set the label text for the radio option. (Fig. E)

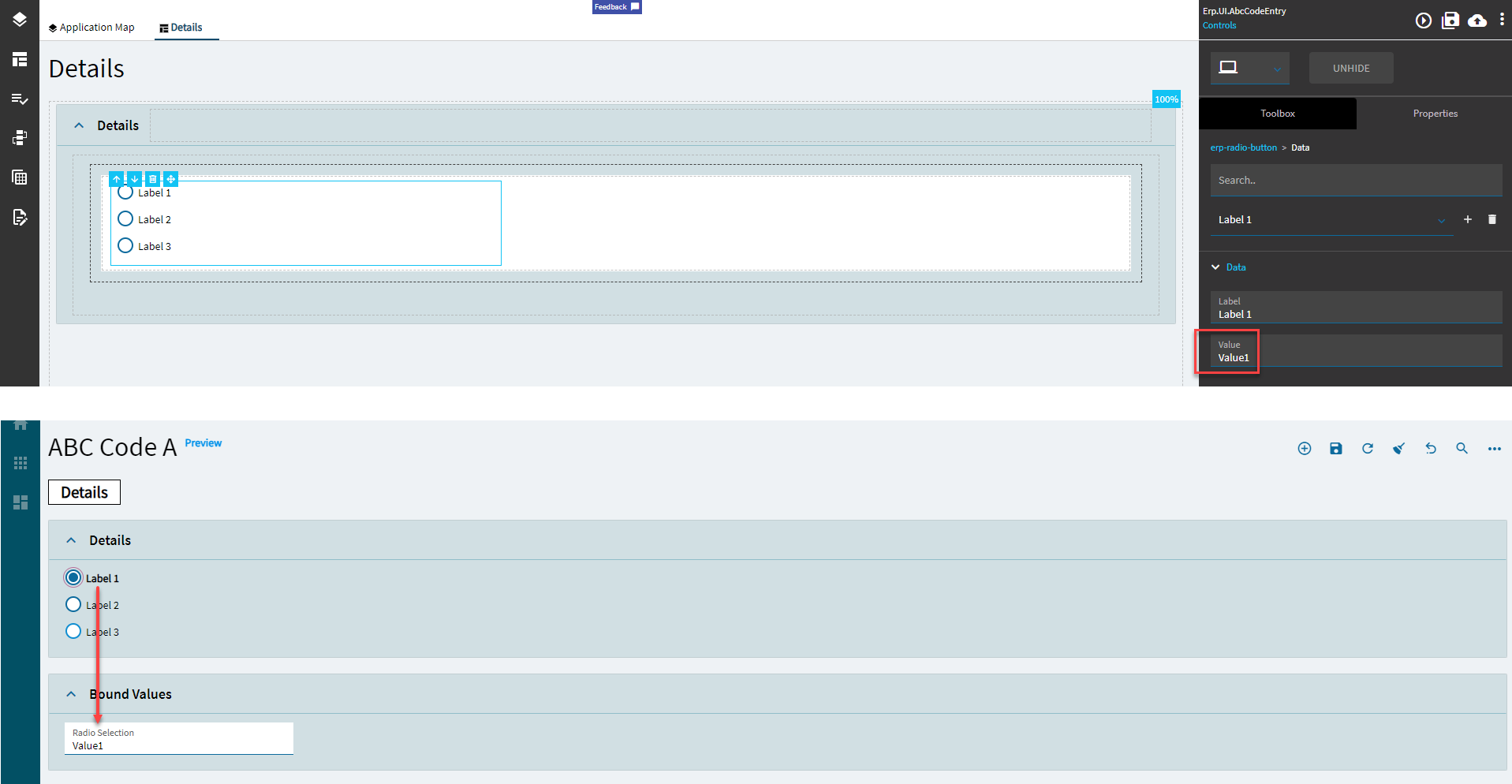

Advanced > Data	Value	Set the value for the radio option. (Fig. F)

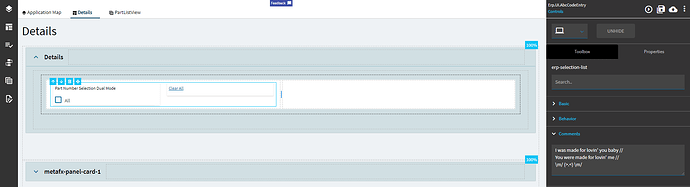

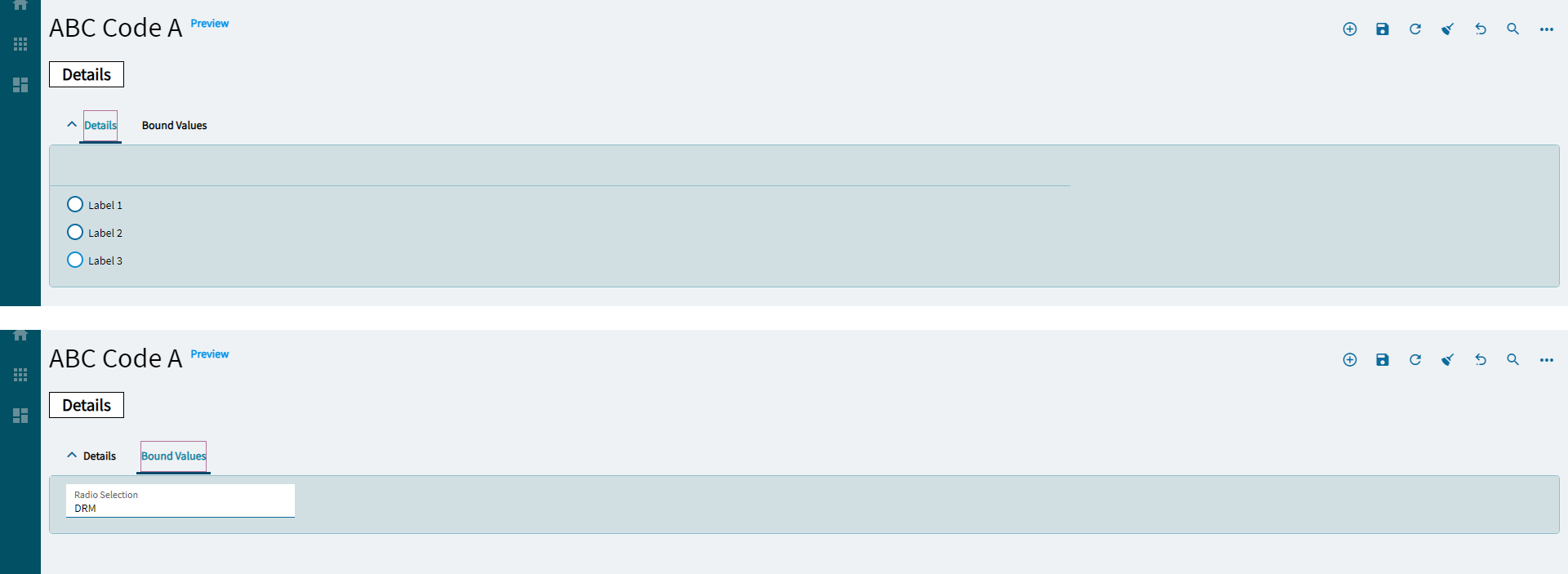

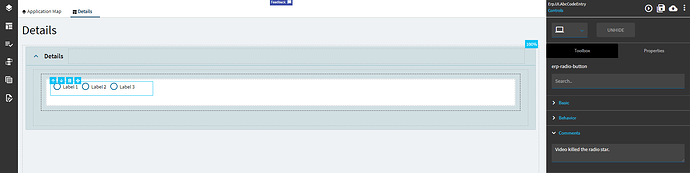

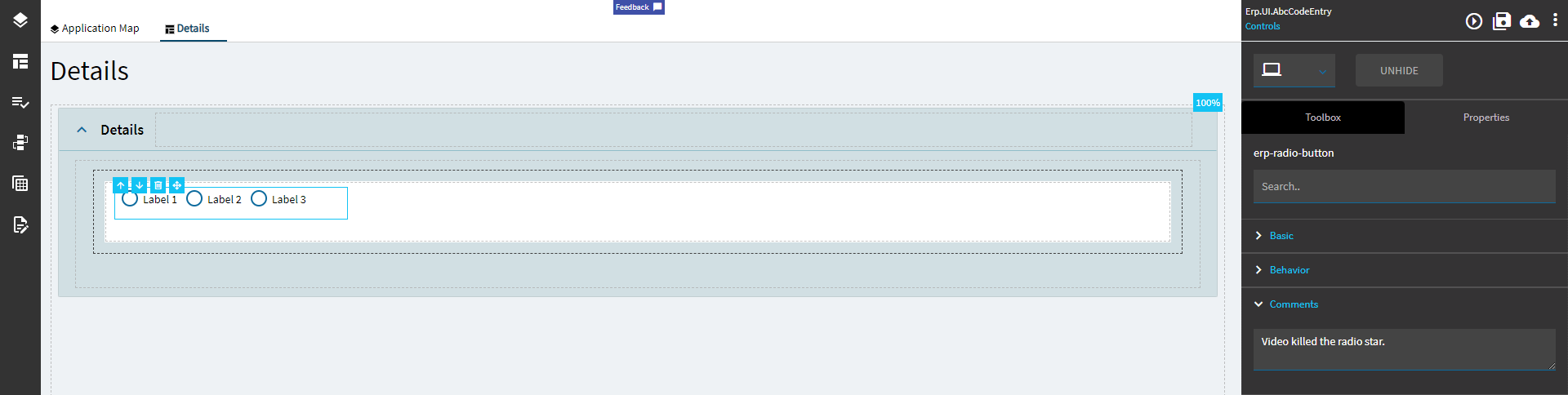

Figure A: Comments

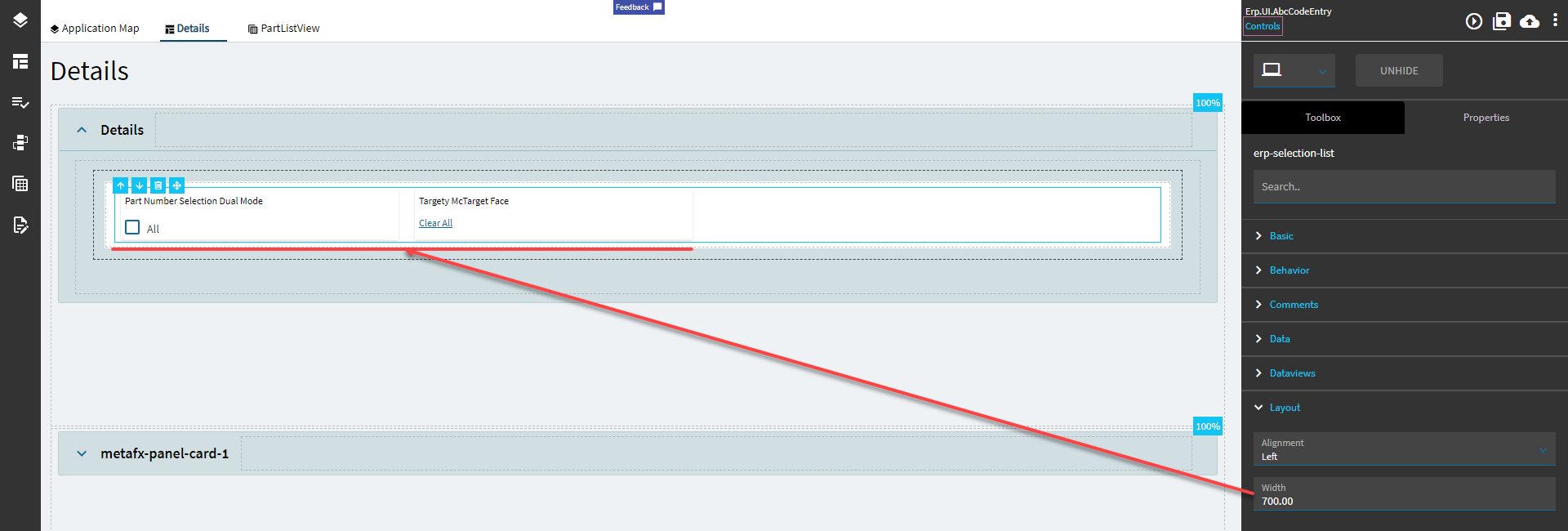

Figure B: Width

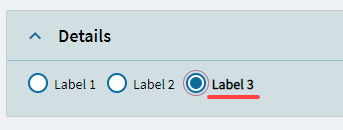

Figure C: Highlight Selected

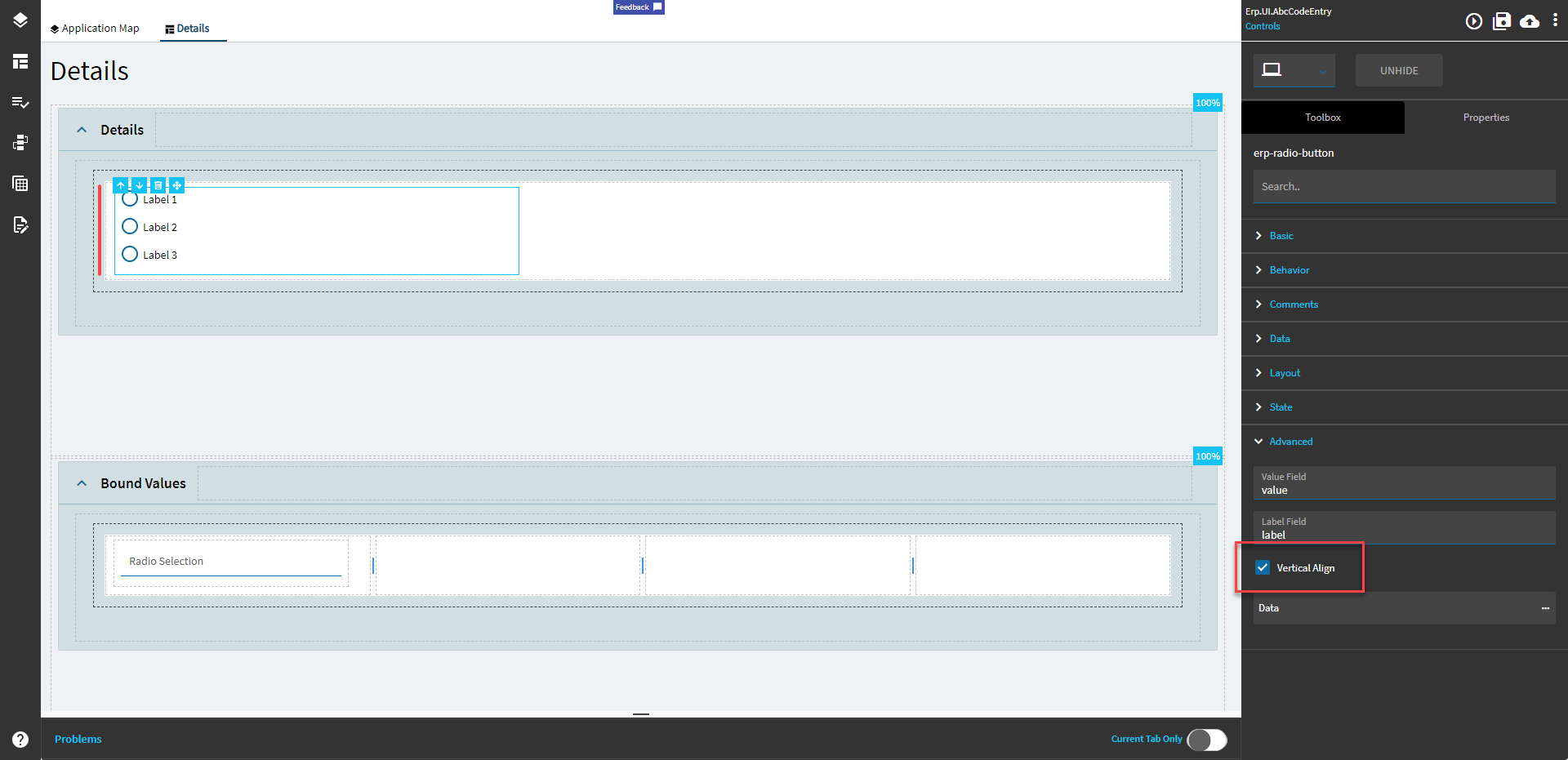

Figure D: Vertical Align

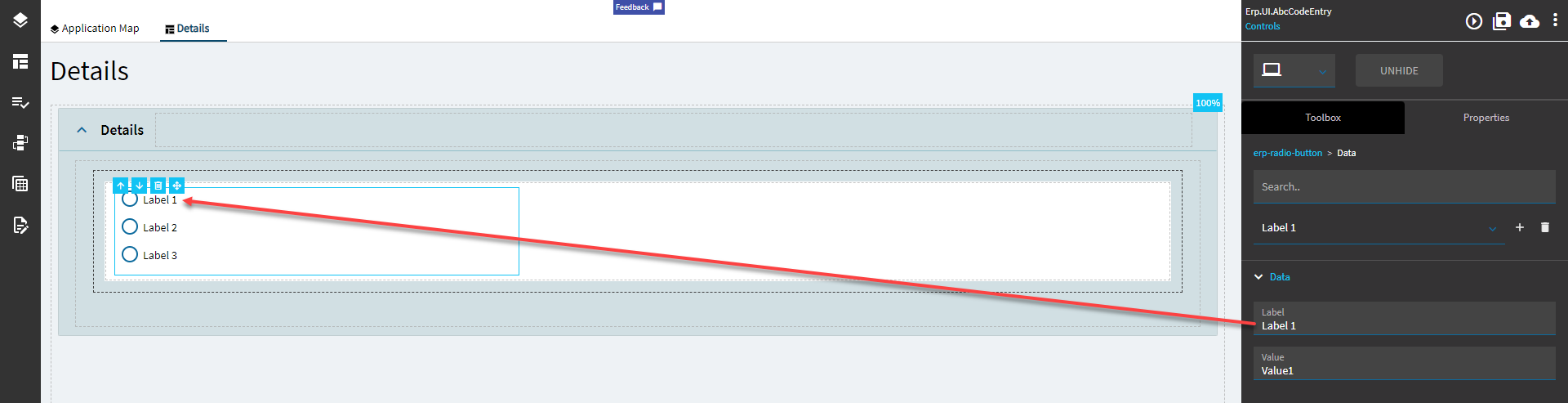

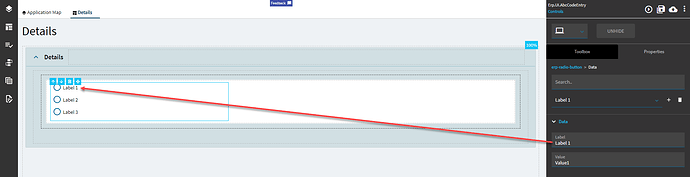

Figure E: Label

Figure F: Value

[hmwillett (Hannah Willett)]

Panel Card Stack

Expandable container that can hold multiple panels in a tabular fashion.

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Basic	Title	Set the title that is displayed at the top of the panel card. Doesn’t work.
Basic > Panels		Select the panels to include in your stack. You can also reorder them here. (Fig. A)
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. B)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column. This will not display any data in the binding, but can be used to control the… control, lol. For example, you can use the EpBinding for OnClick events or Row
Layout	Minimum Width	Sets the minimum width the panel can shrink to when the page is in Flex Layout Mode. (Fig. C)
Data	Flex Layout	To create custom, responsive control layouts instead of column-based layouts, set the card to Flex Layout Mode and use Group Box and Flex Container controls within the card to organize content.
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
Advanced	Auto Fill Container	Indicate if panel card should automatically fill its container. Doesn’t seem to have an effect on this control.
Advanced	Expand At Runtime	Enable this to expand the panel card at runtime. When the panel is expanded, it attempts to load data from the provider model. In the case of a dashboard, you may want to disable this to allow users time to fill in the filters.

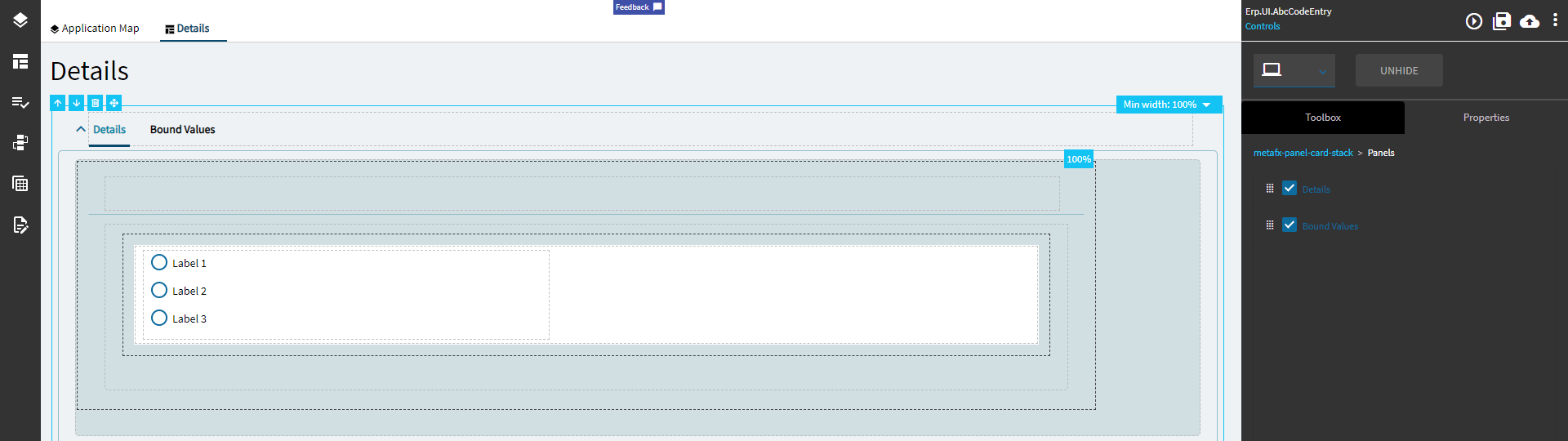

Figure A: Panels

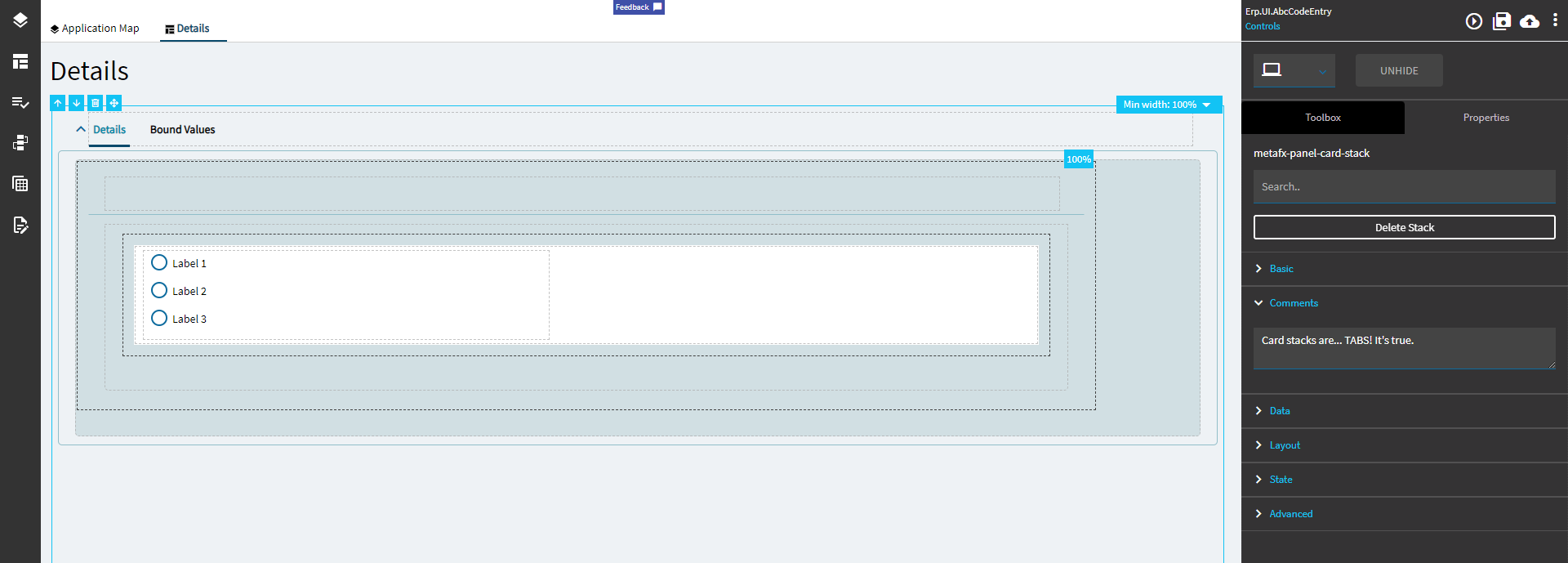

Figure B: Comments

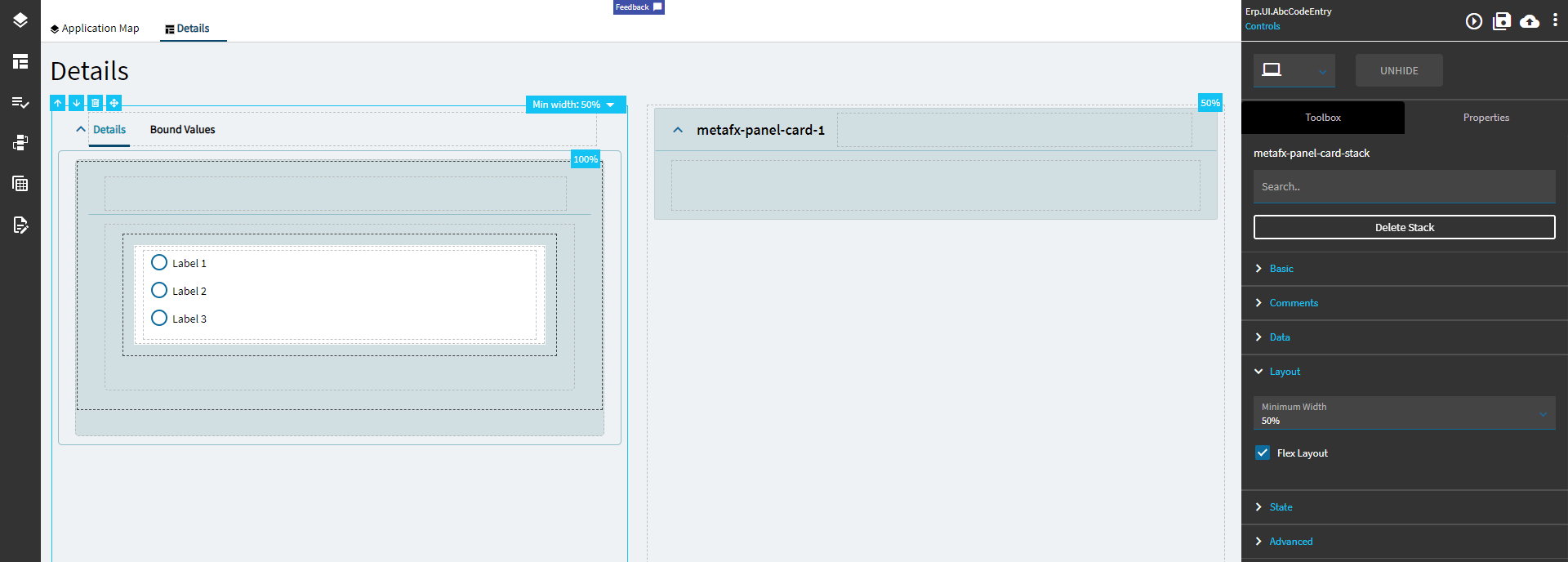

Figure C: Minimum Width
Don’t y’all just loooove how uneven this looks. I know I do!

[hmwillett (Hannah Willett)]

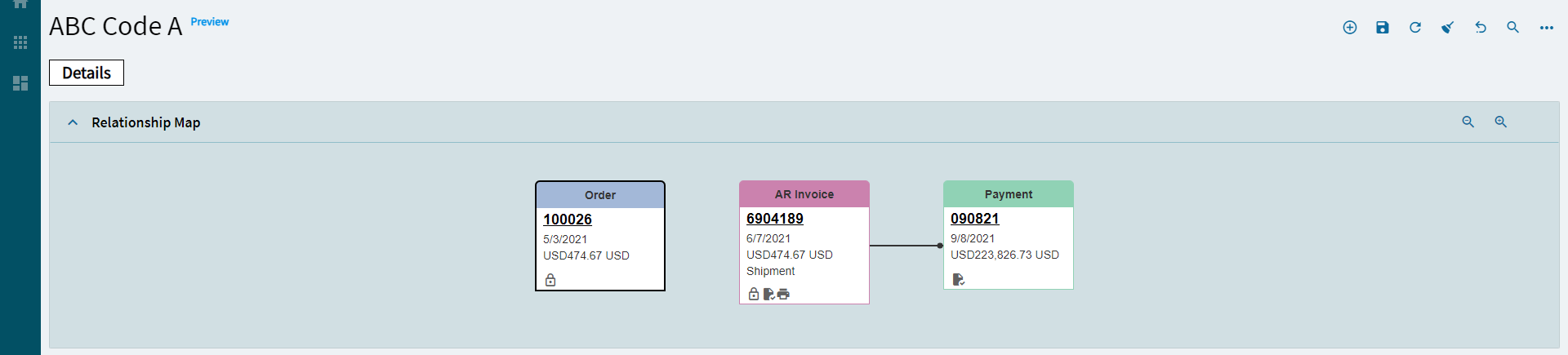

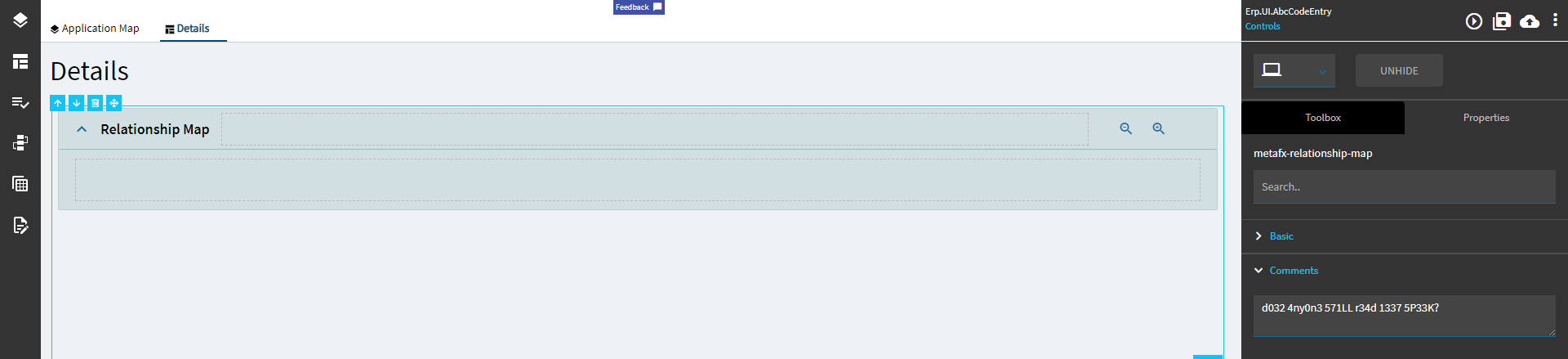

Relationship Map

A component to define a relationship map.

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. A)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column.
Layout	Alignment	Sets the alignment for the control. Valid options include Right, Left, Center. (Fig. B)
Layout	Width	Sets the specific width (pixels) for the control. Doesn’t work.
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
State	Auto Focus	When enabled, the control is automatically focused on creation.
Advanced	Header Text	Sets the header text on the panel. (Fig. C)
Advanced	Svc	The service to fetch the diagram data. Example: Erp.BO.SalesOrderSvc
Advanced	Svc Path	The service path to get the diagram data. Example: GetSalesOrderRelationshipMap Note: I don’t have a list of services that have a relationship map call.
Advanced	Input Arguments	Arguments to be provided to the service, one of which includes the key field. Outside of the two shown, I’m not sure what else can be provided here. (Fig. D)
Advanced	Cap Width	No idea what this should do.

Figure A: Comments

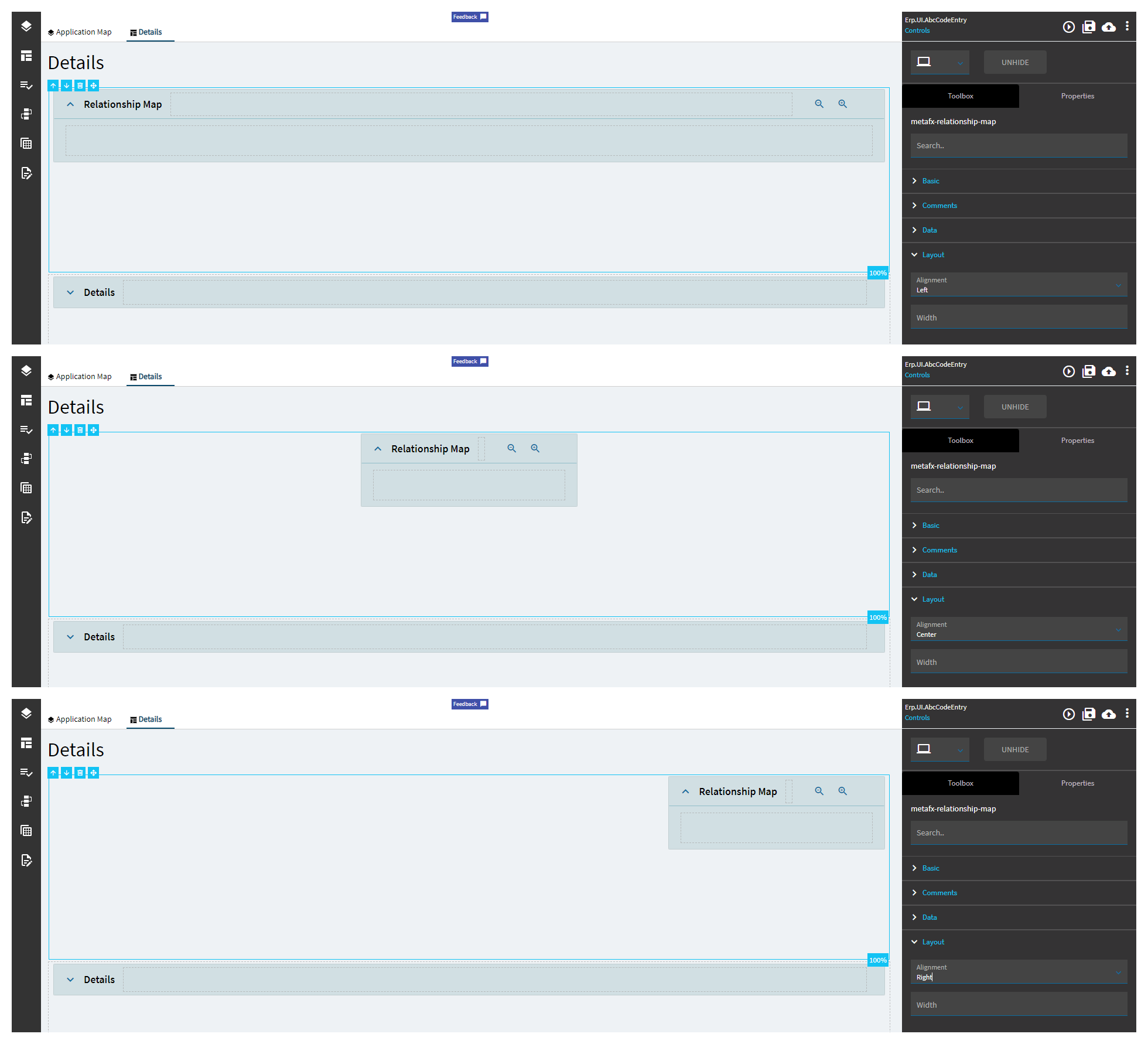

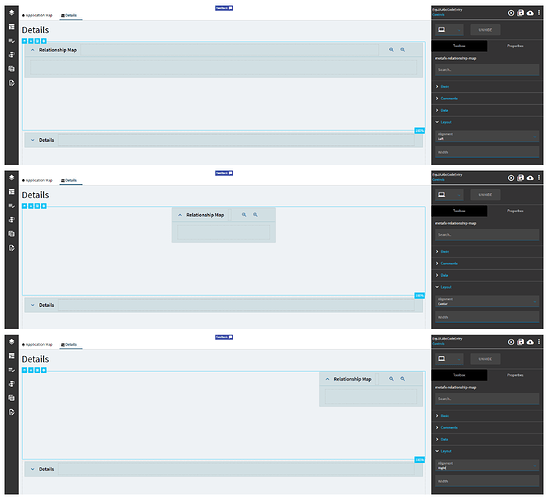

Figure B: Alignment

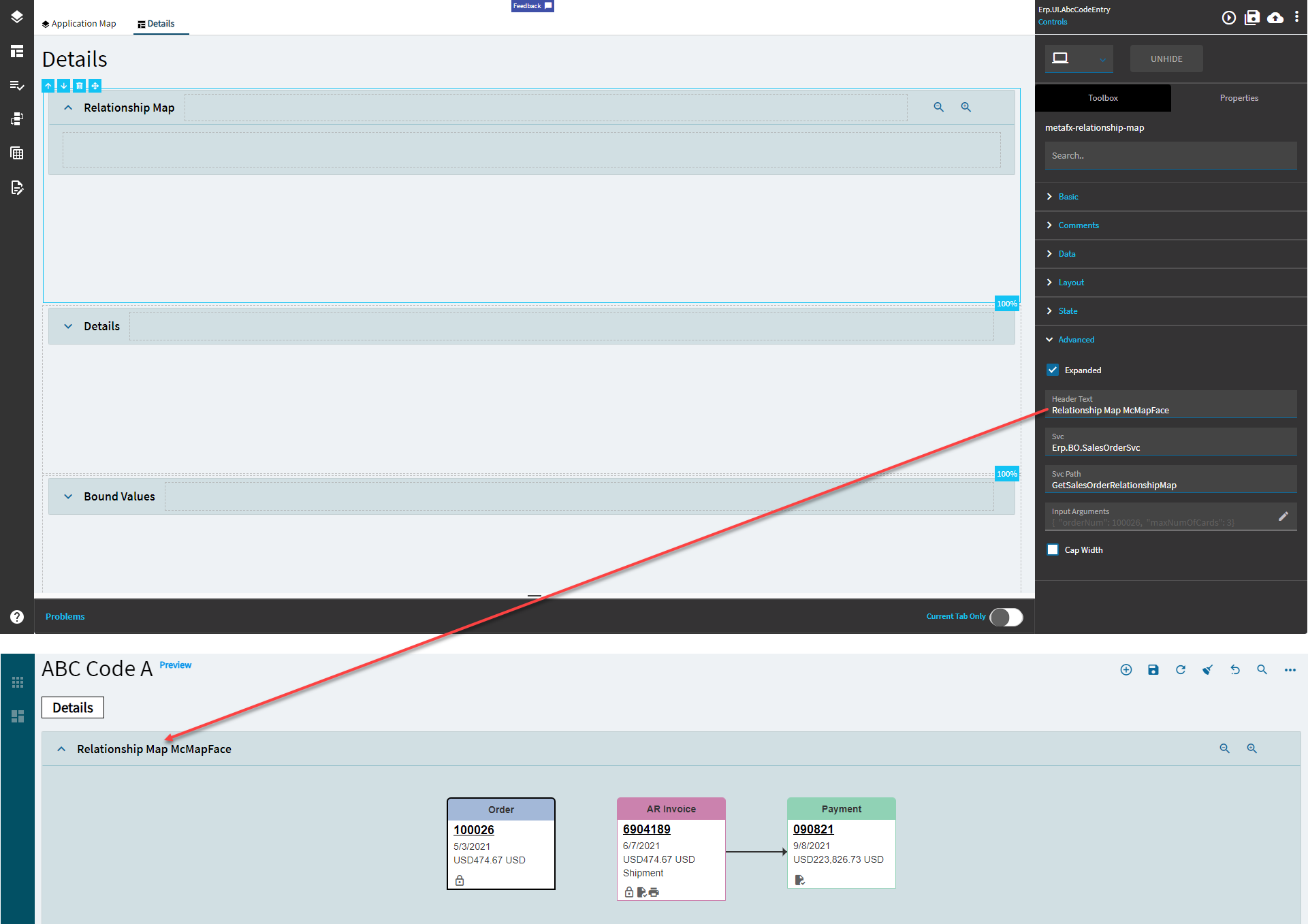

Figure C: Header Text

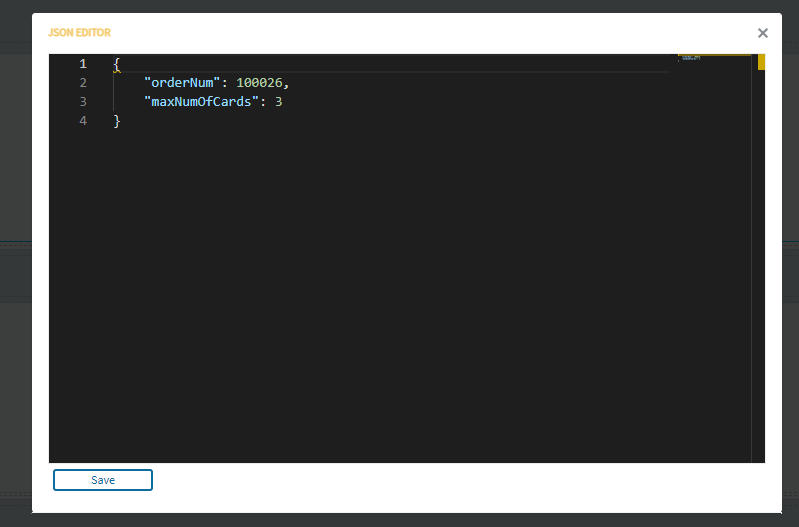

Figure D: Input Arguments

[Mark_Wonsil]

Is this what the new Explorers use?

[hmwillett (Hannah Willett)]

Just Dora.

[Mark_Wonsil]

[hmwillett (Hannah Willett)]

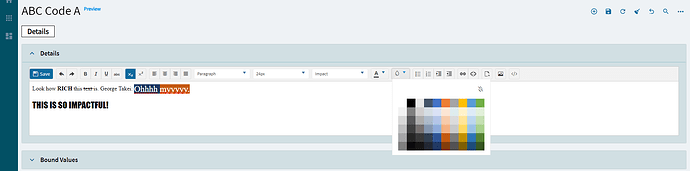

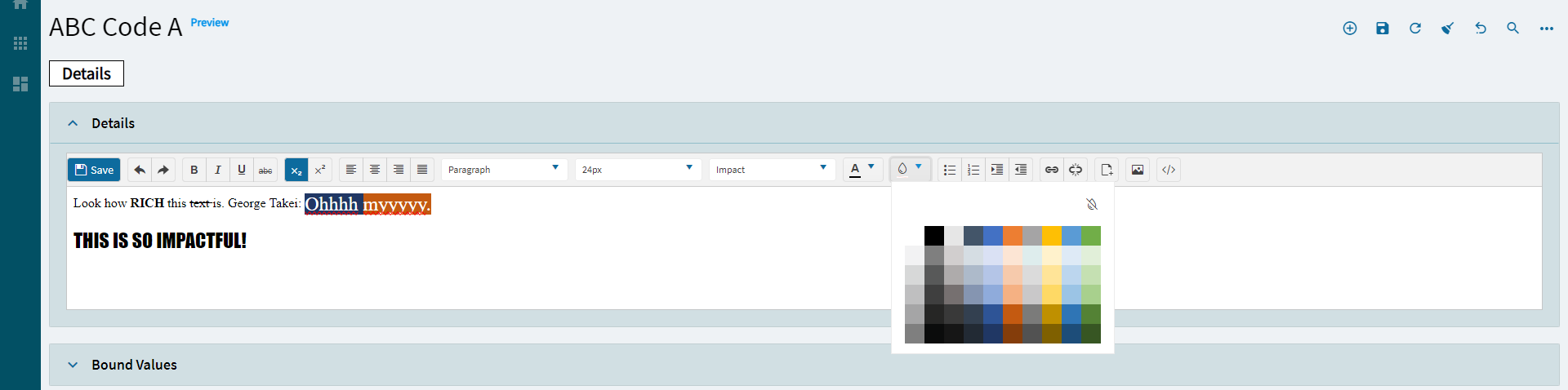

Rich Text Editor

Allows a user to enter text and images which could be formatted according to their preferences… Unless that preference is the color red… or purple. Plenty of choices for blue, though!

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Basic	Label Text	Sets the label within the control. Doesn’t do anything.
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. A)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column. Turns out you can get red text here, or any color, but it’s stuuuuupid; you just need to change the hex value. (Fig. B)
Layout	Alignment	Sets the alignment of the control. (Fig. C)
Layout	Width	Sets the specific width (pixels) for the control. (Fig. D)
Layout	Height	Sets the specific height (pixels) for the control. (Fig. D)
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
State	Auto Focus	When enabled, the control is automatically focused on creation.
Advanced	Show All Tools	Toggle to show or hide advanced tools for the control. (Fig. E)

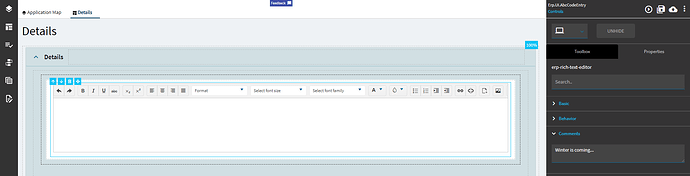

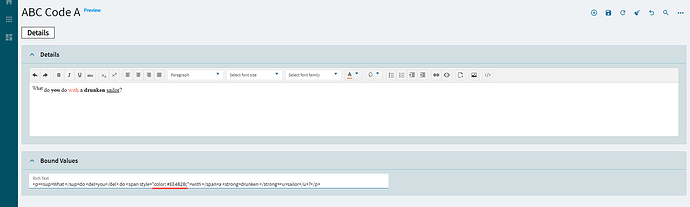

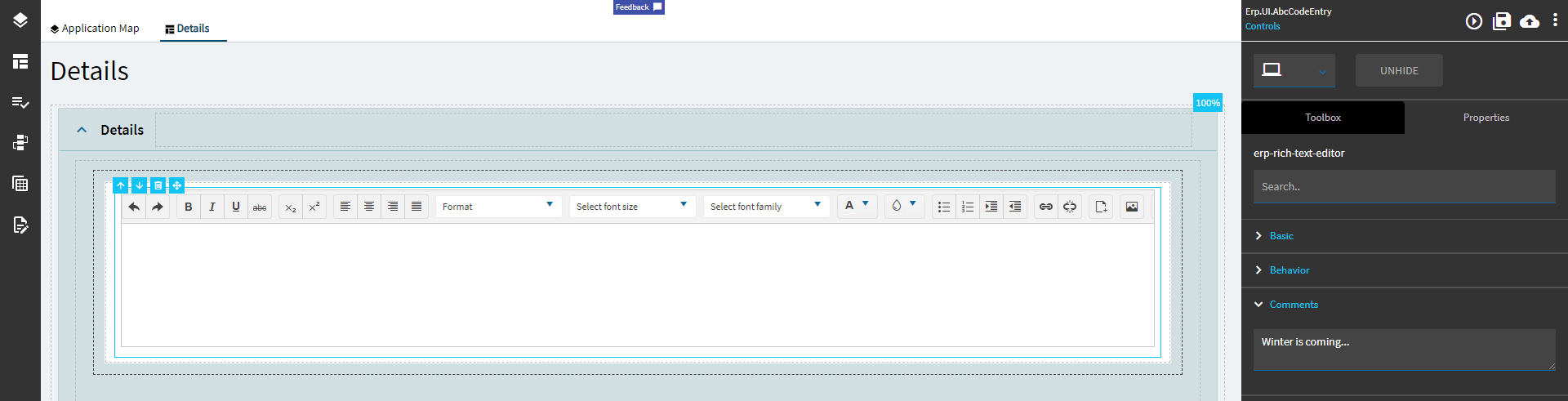

Figure A: Comments

Figure B: EpBinding

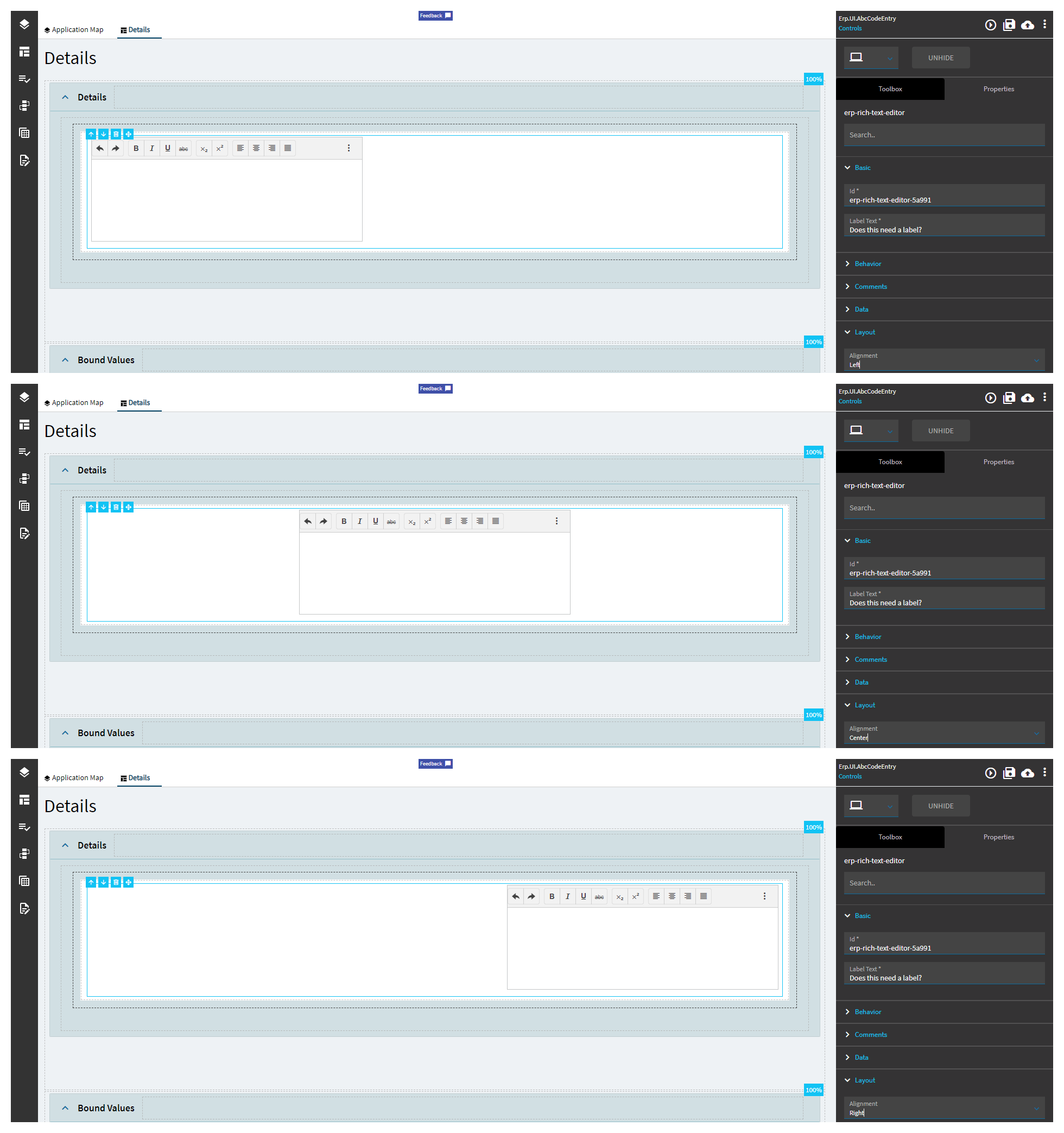

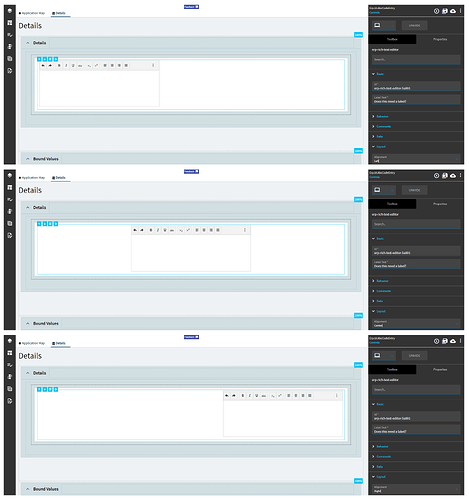

Figure C: Alignment

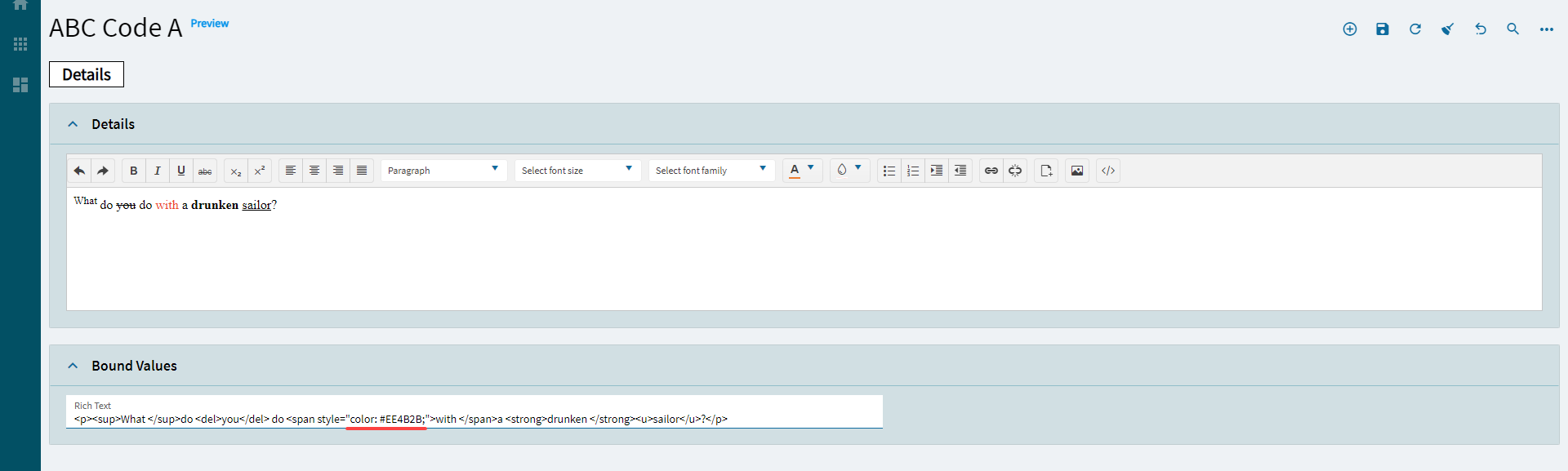

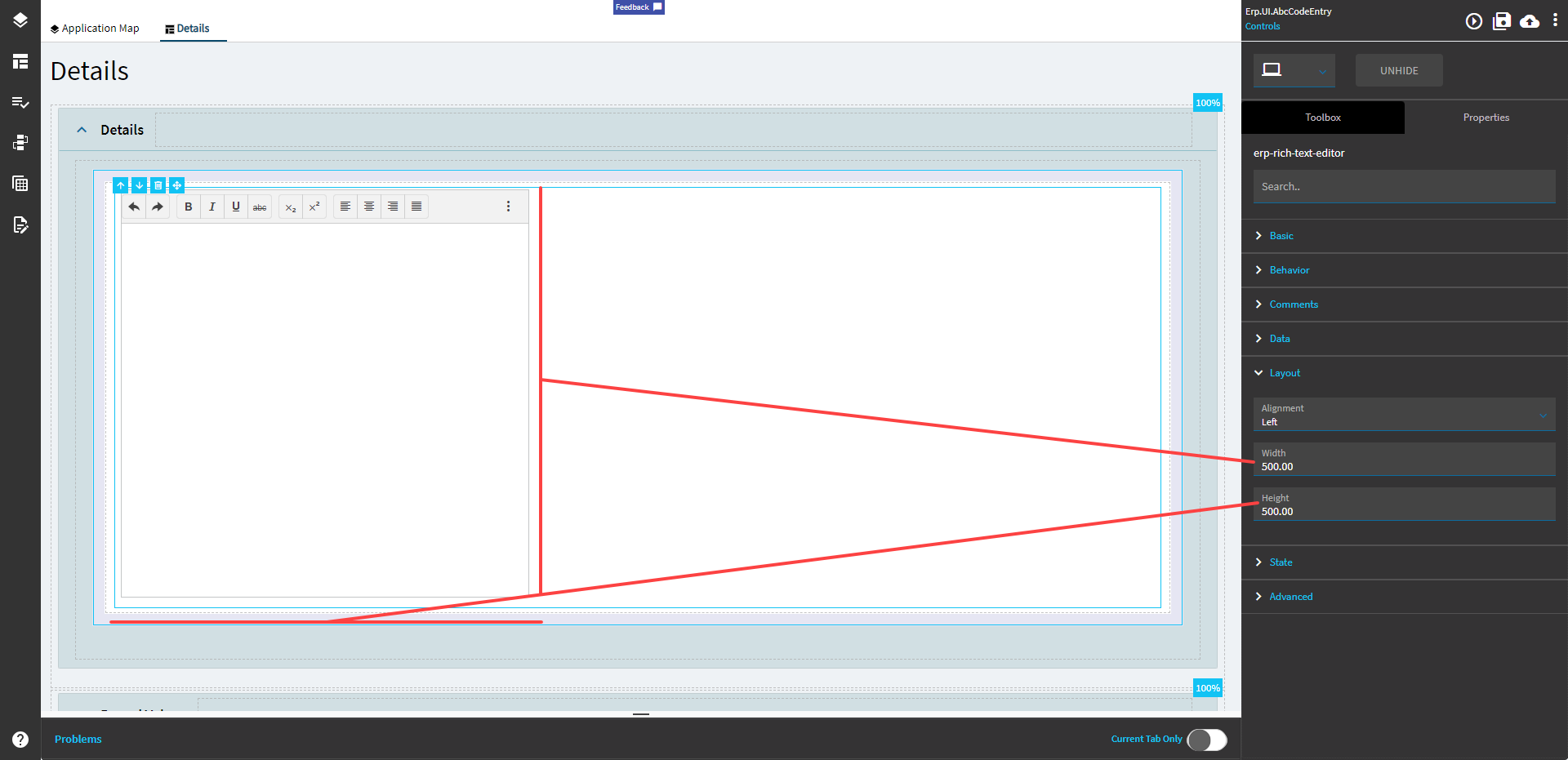

Figure D: Width and Height

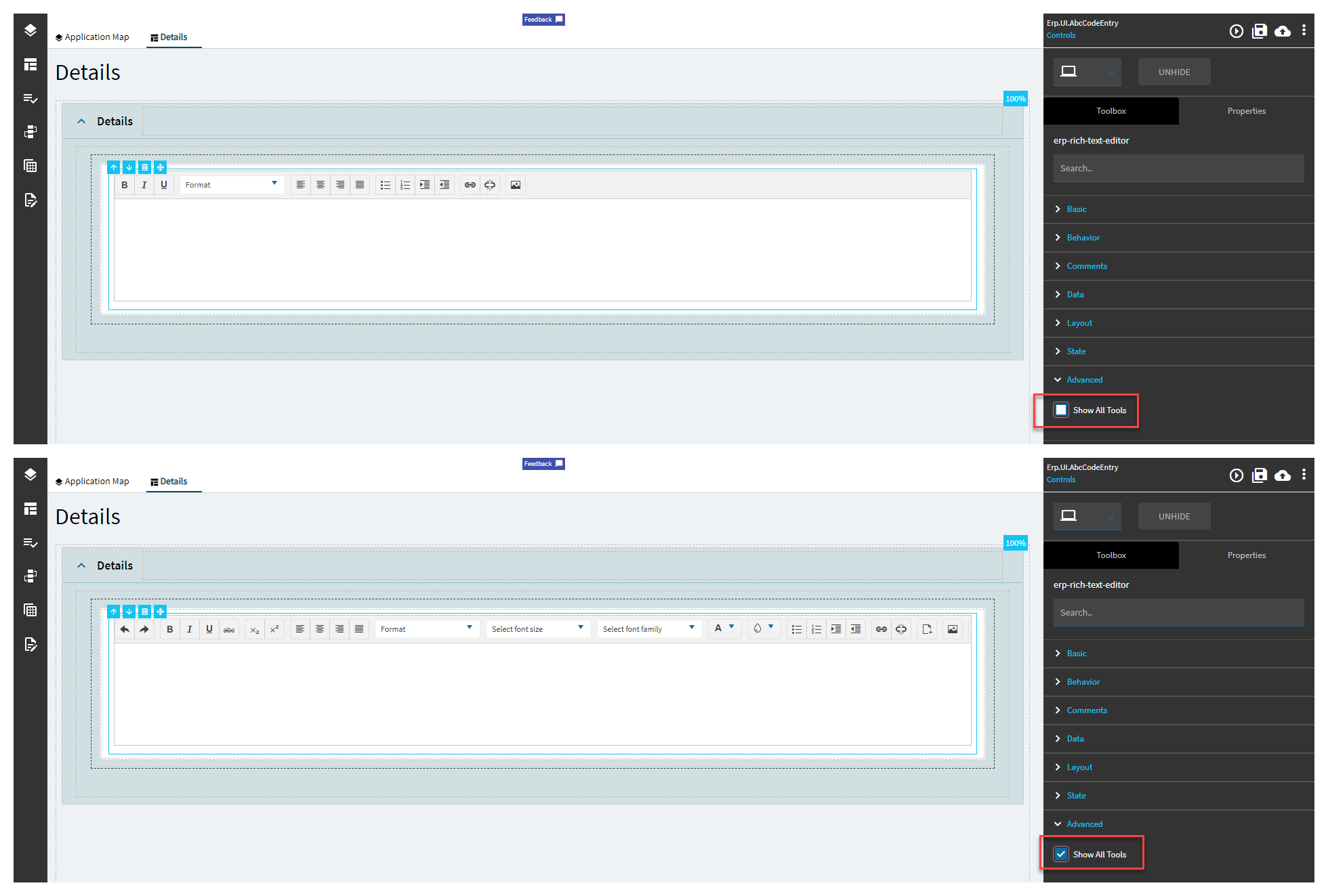

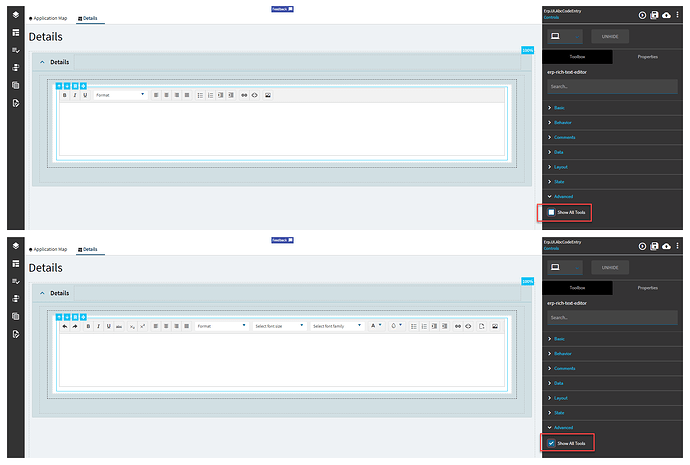

Figure E: Show All Tools

[hmwillett (Hannah Willett)]

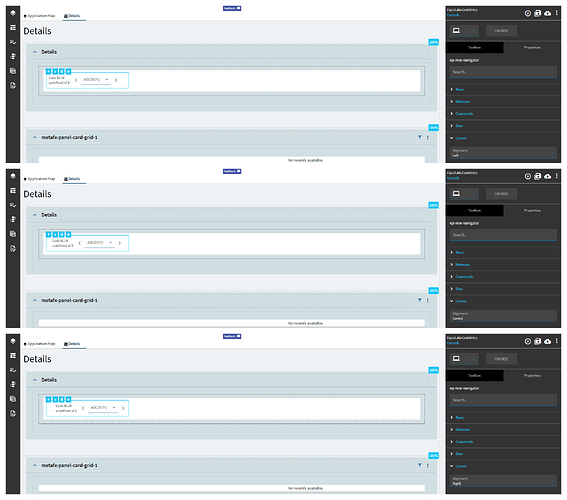

Row Navigator

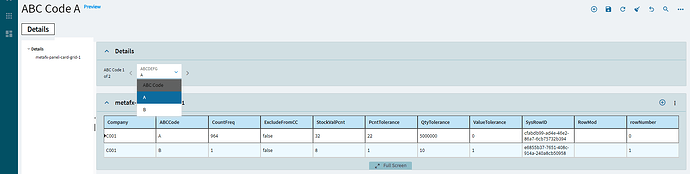

Row Navigator scrubs among the records in a DataView that might be linked to an EpBinding component on the target page/panel to display the current record details or to a grid.

Property Group	Property	Description
Basic	Id	Unique identifier for the control

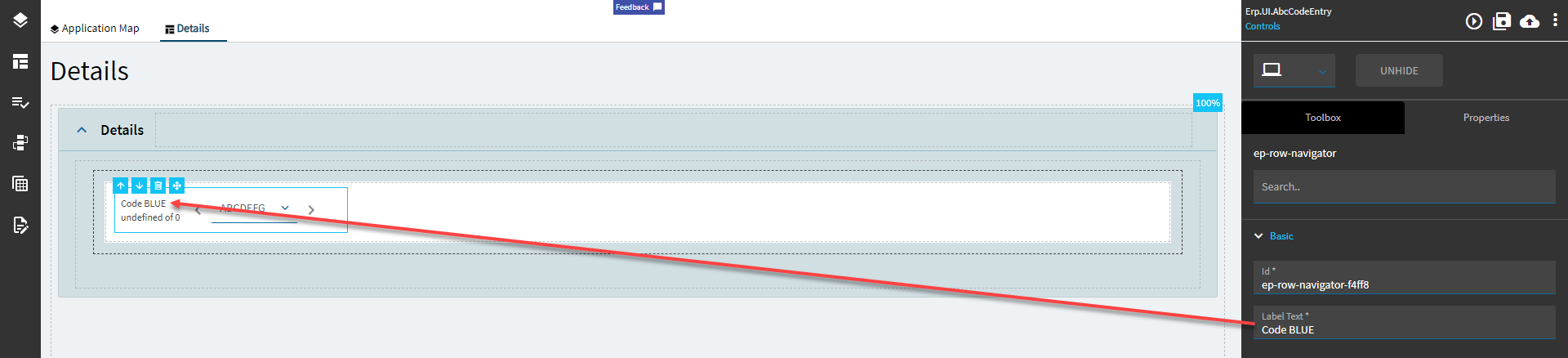

Basic	Label Text	Sets the label within the control. (Fig. A)
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. B)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView. This won’t show data, but is the source for the nav combo.

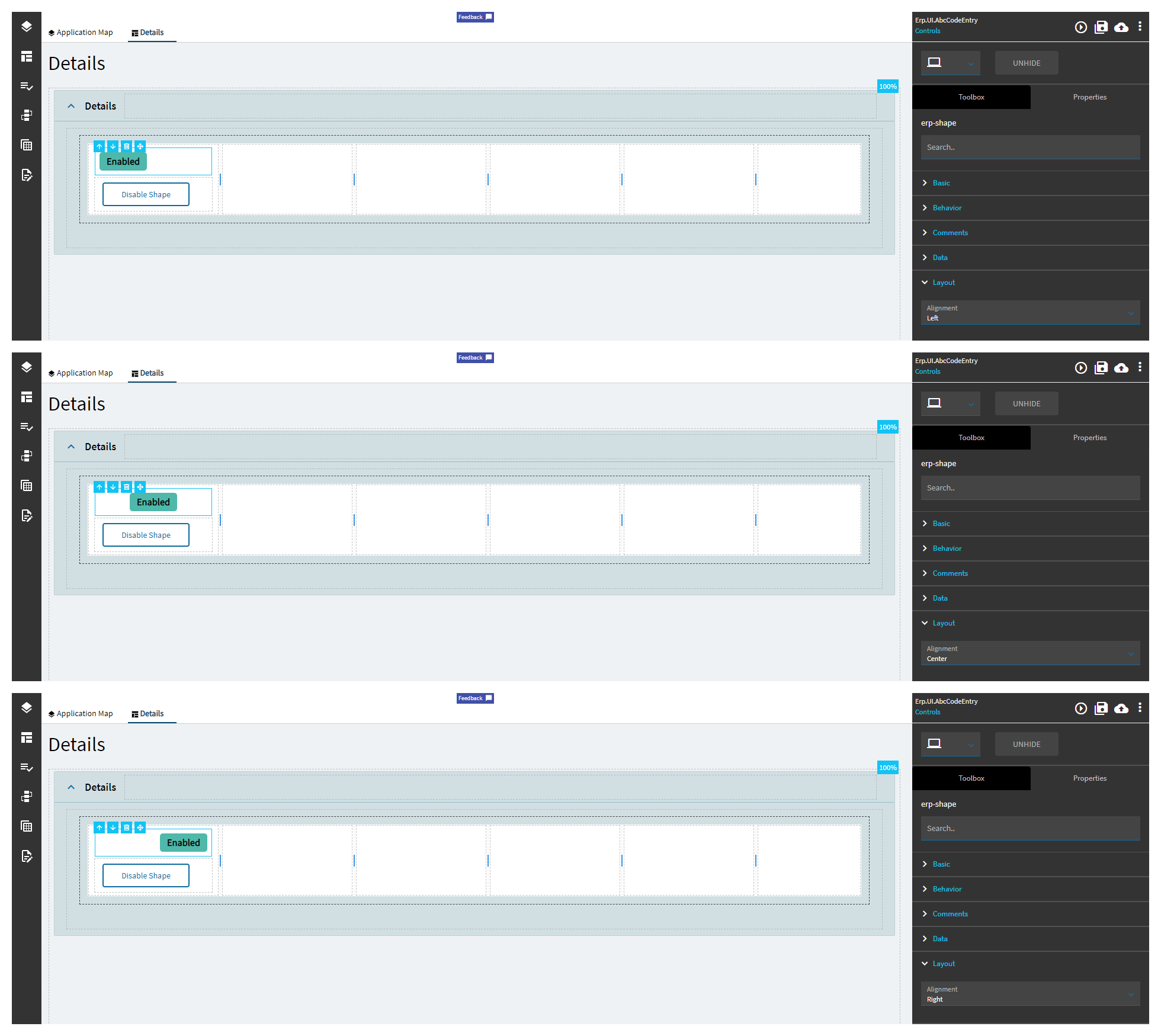

Layout	Alignment	Marginally sets the alignment for the control. (Fig. C)
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
Advanced	CombBox Label	The label shown in the combo box portion of the control. (Fig. D)
Advanced	Show Count Text	Shows the a count of the records within the view. (Fig. E)
Advanced	Columns	The columns to show in the combo. Supposedly, this is supposed to work with multiple columns, but I can only get it to show data from the first one. (Fig. F)

Figure A: Label Text

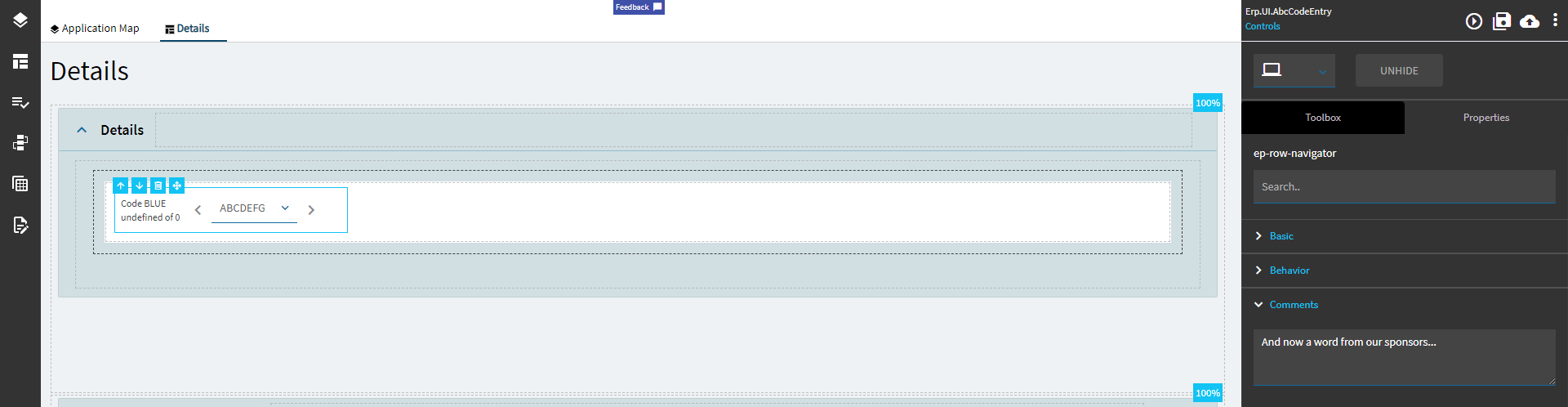

Figure B: Comments

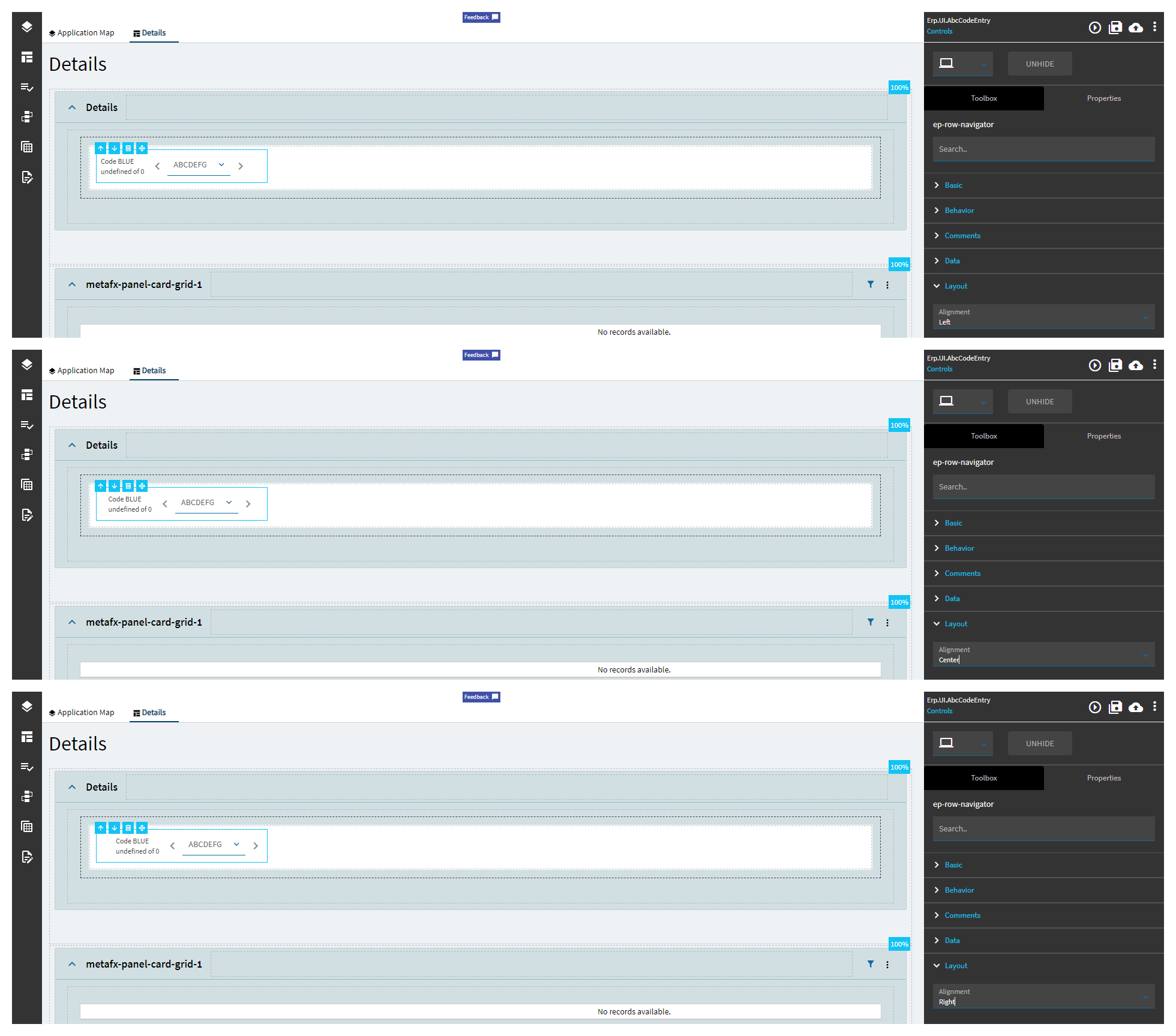

Figure C: Alignment

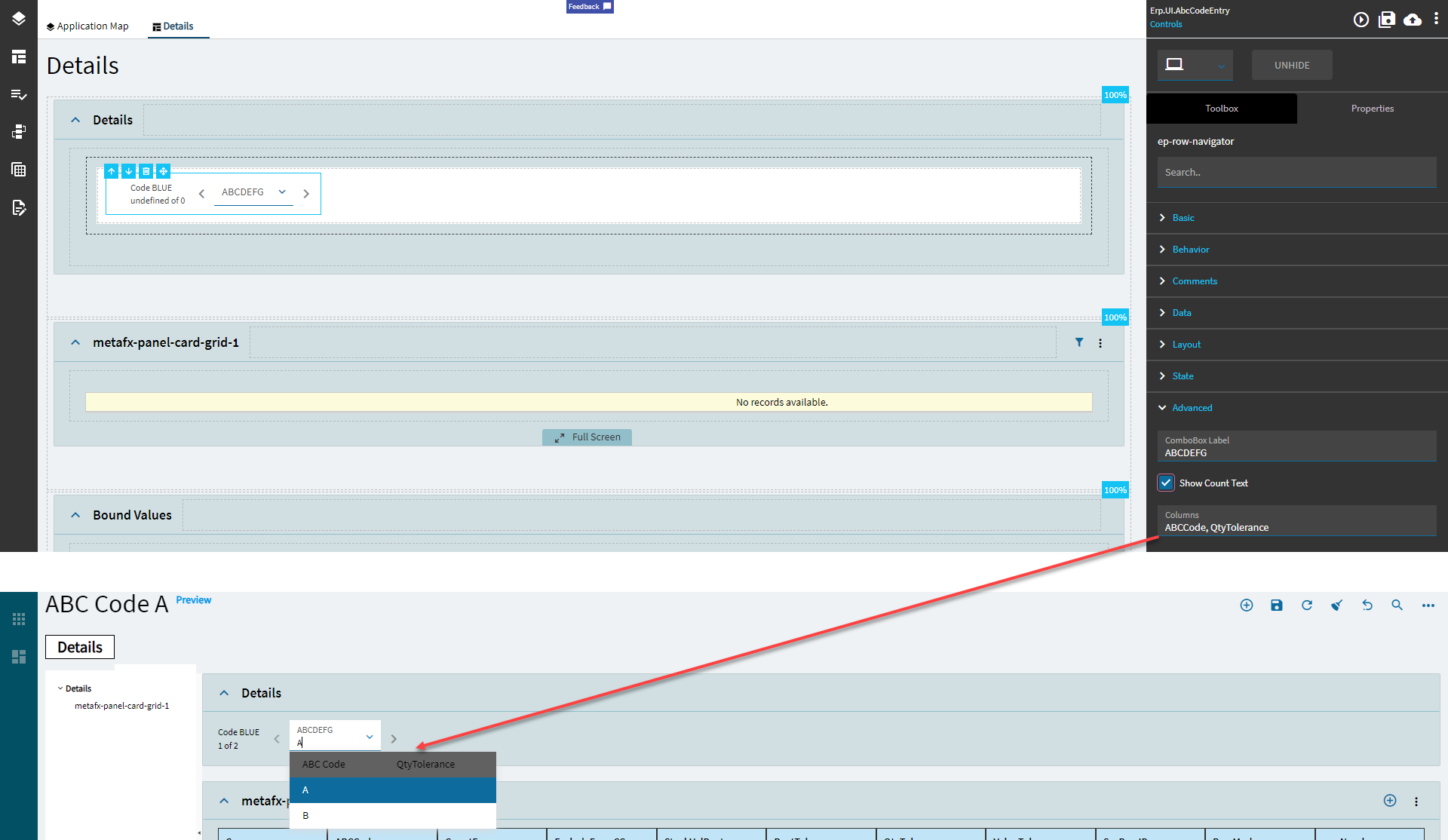

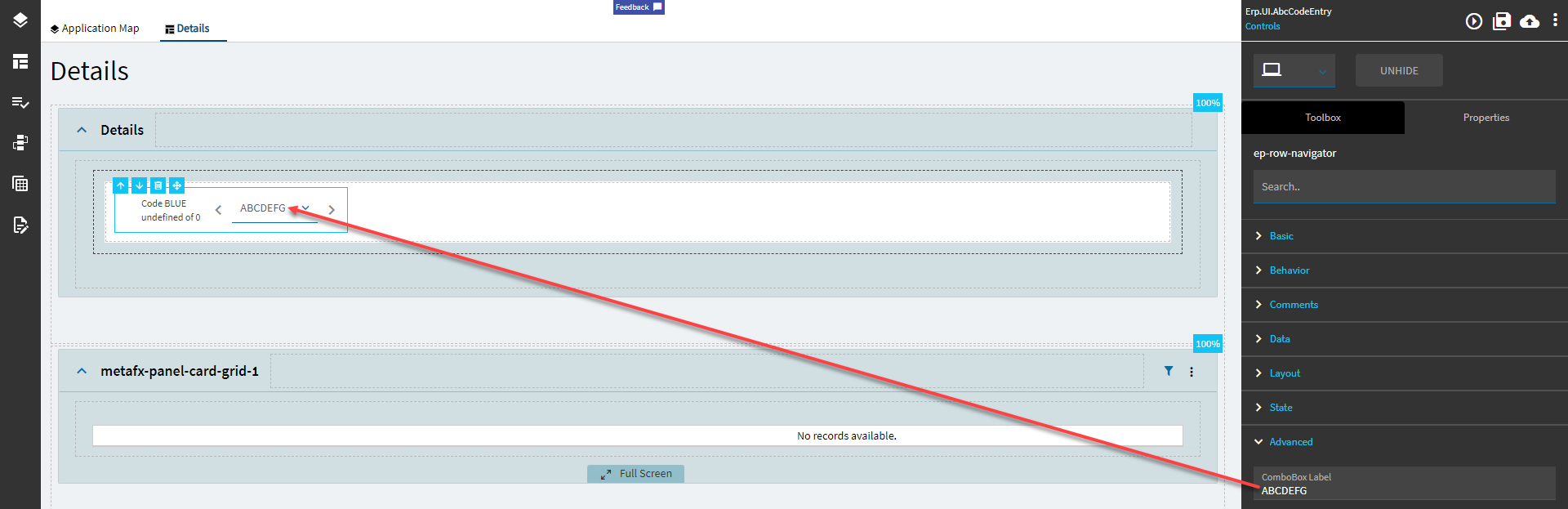

Figure D: ComboBox Label

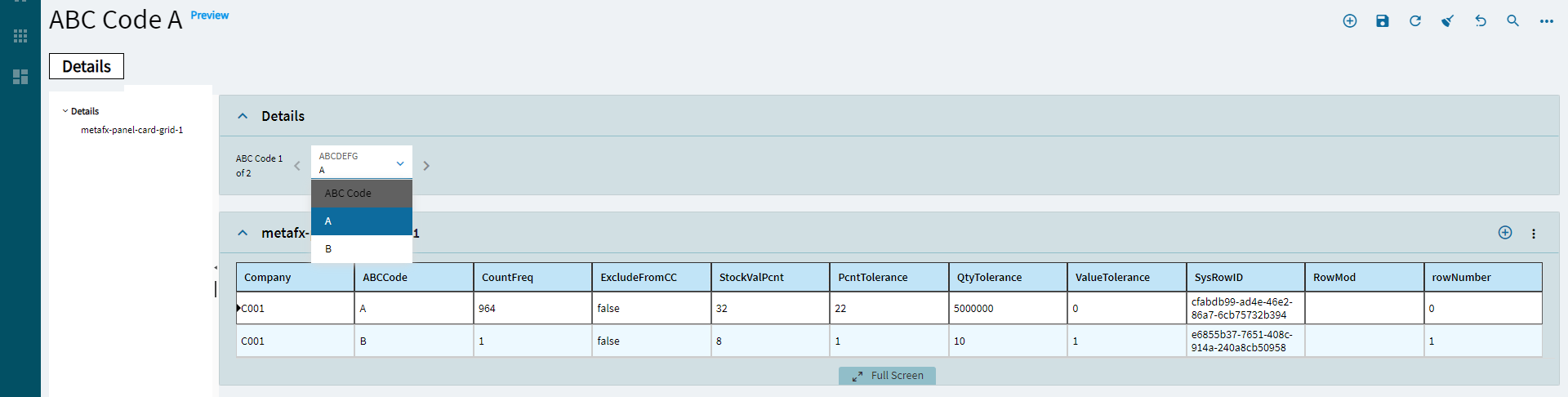

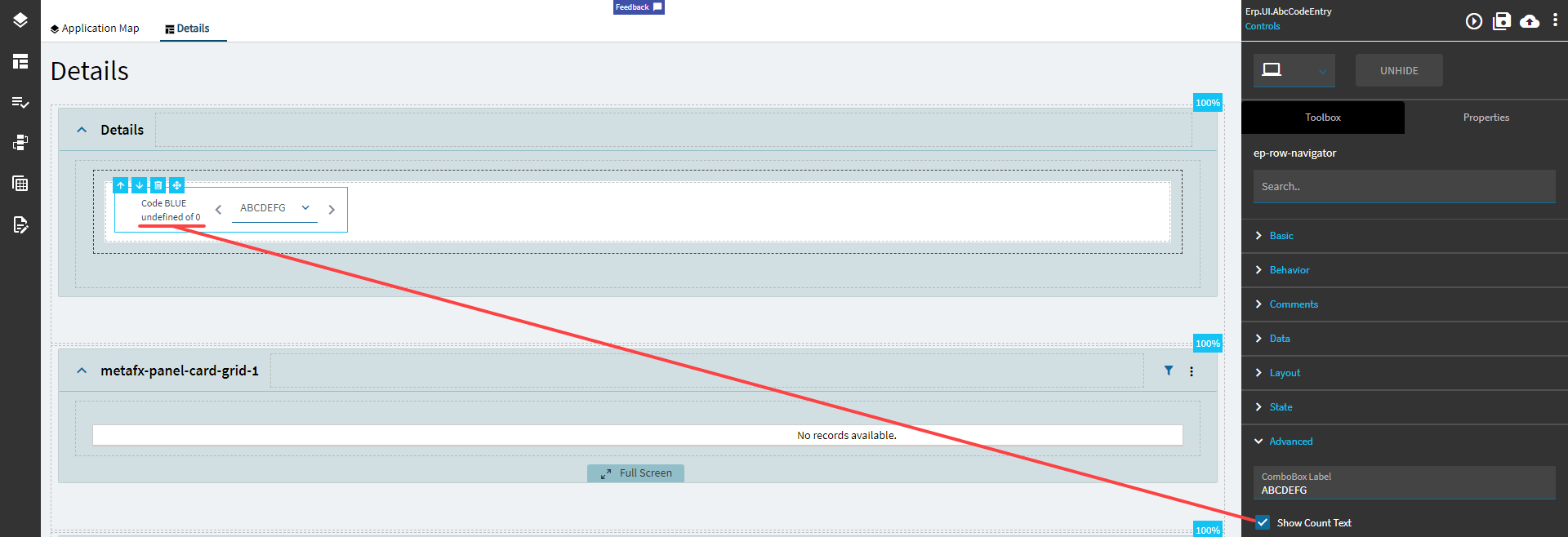

Figure E: Show Count Text

Figure F: Columns

[rad.russ15 (Russell Anderson)]

Anyone figured out a way to expand the width of this control? It cuts off our part numbers and descriptions.

[jkane (John Kane)]

Is there an ability to do one to many? I’m thinking of a Lot that gets issued to multiple Jobs.

[hmwillett (Hannah Willett)]

@jkane

Is there an ability to do one to many?

It visualizes whatever the dataset is that comes back from the BO, but yes–I’ve seen it visualize 3 invoices to 1 order for instance. That’s automatic, though you should probably increase the maxNumOfCards to suit your needs.

[hmwillett (Hannah Willett)]

@rad.russ15

Anyone figured out a way to expand the width of this control?

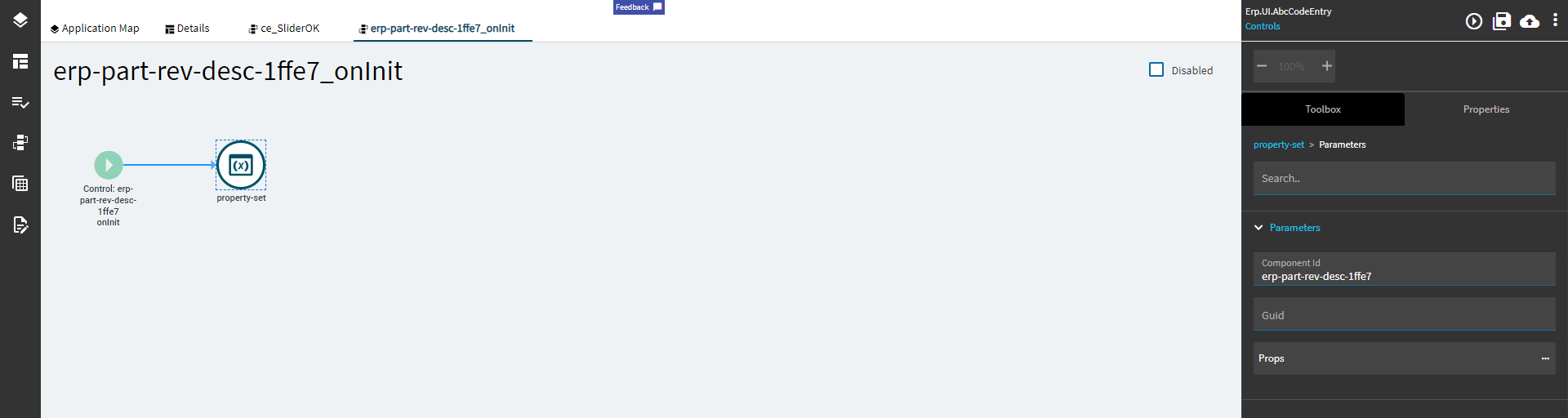

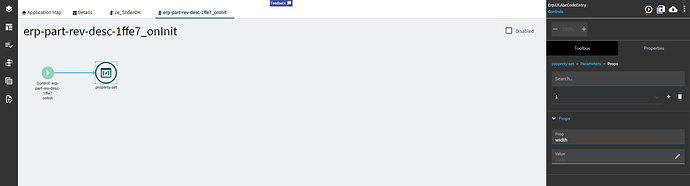

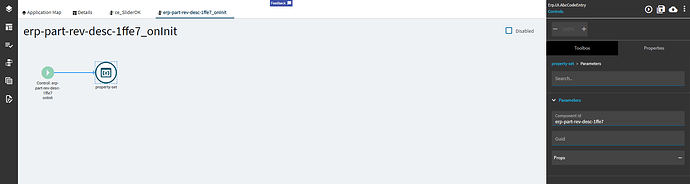

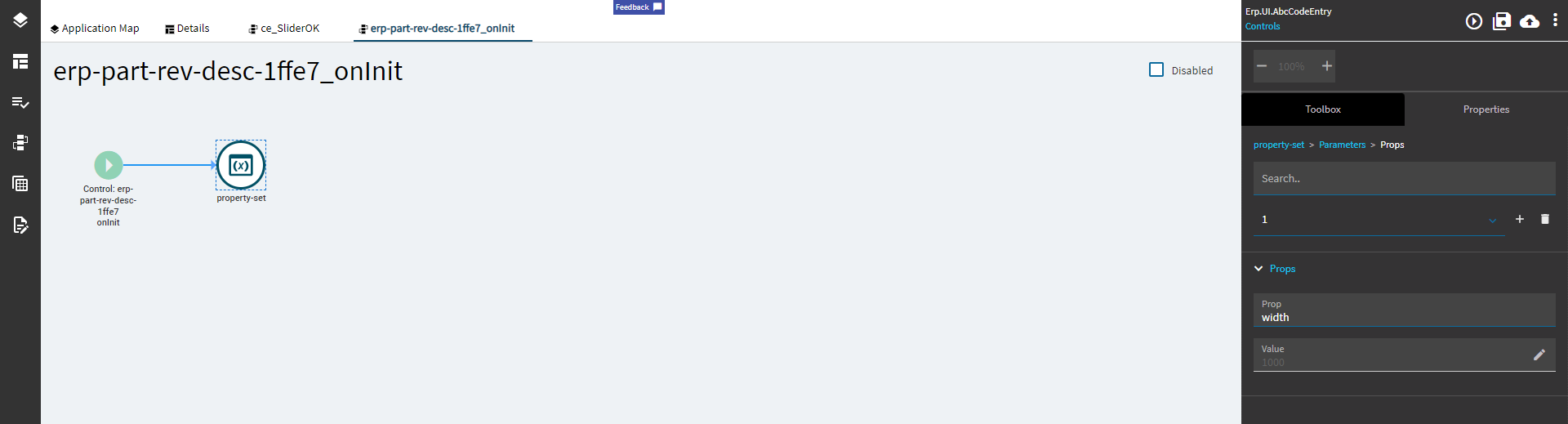

Create an event that’s triggered off of the OnCreate behavior and set the width property with a property-set widget.

[hmwillett (Hannah Willett)]

Scheduler

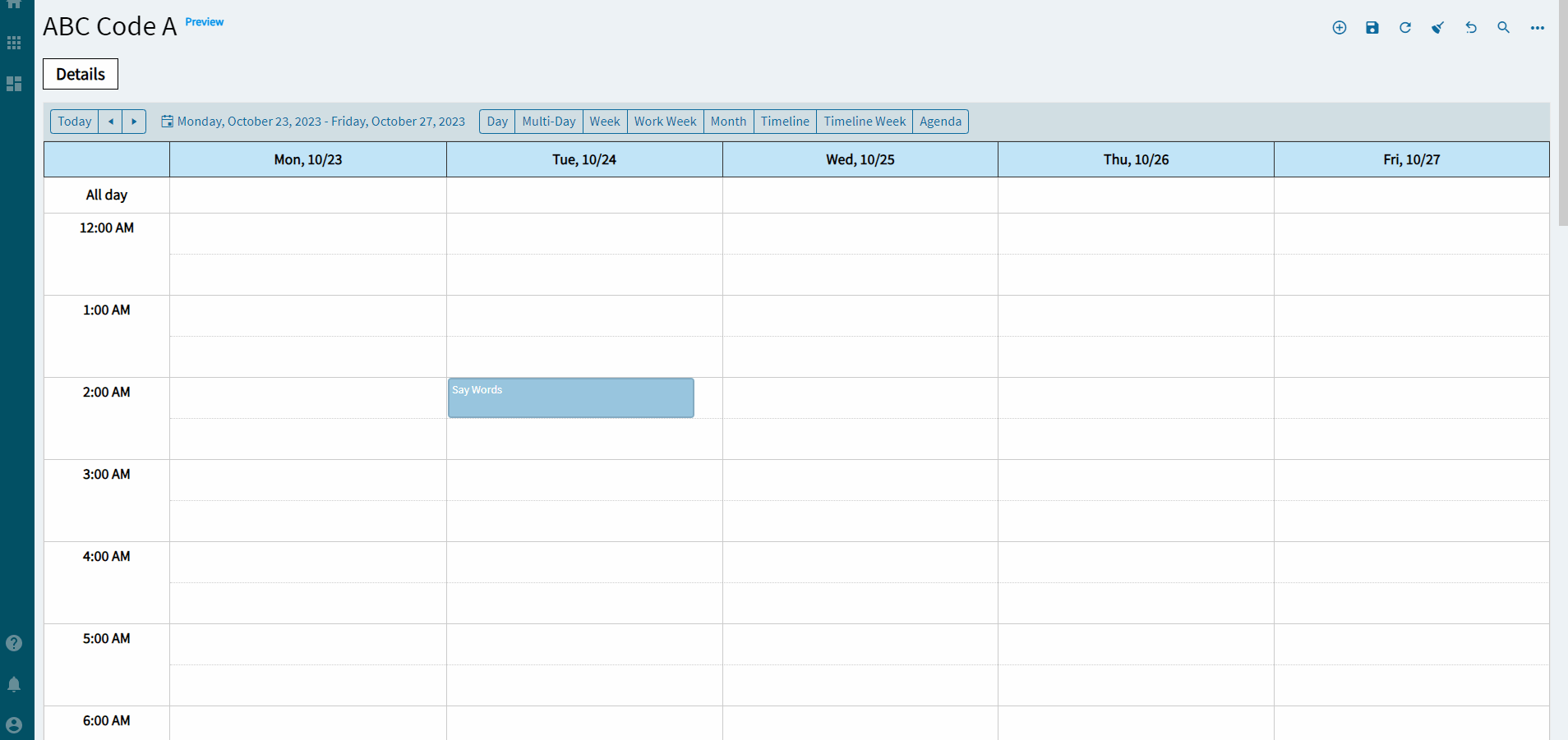

The scheduler component provides options for scheduling and displaying events in different views for a user. See the appendix for some necessary events to make this work.

I forgot to click the different views at the top and was too lazy to re-record it.
You get what you get!

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.

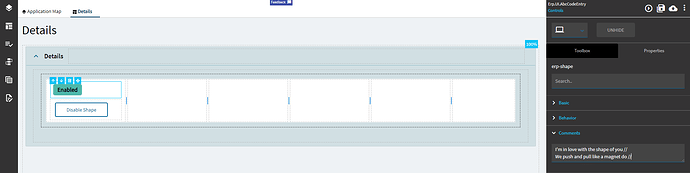

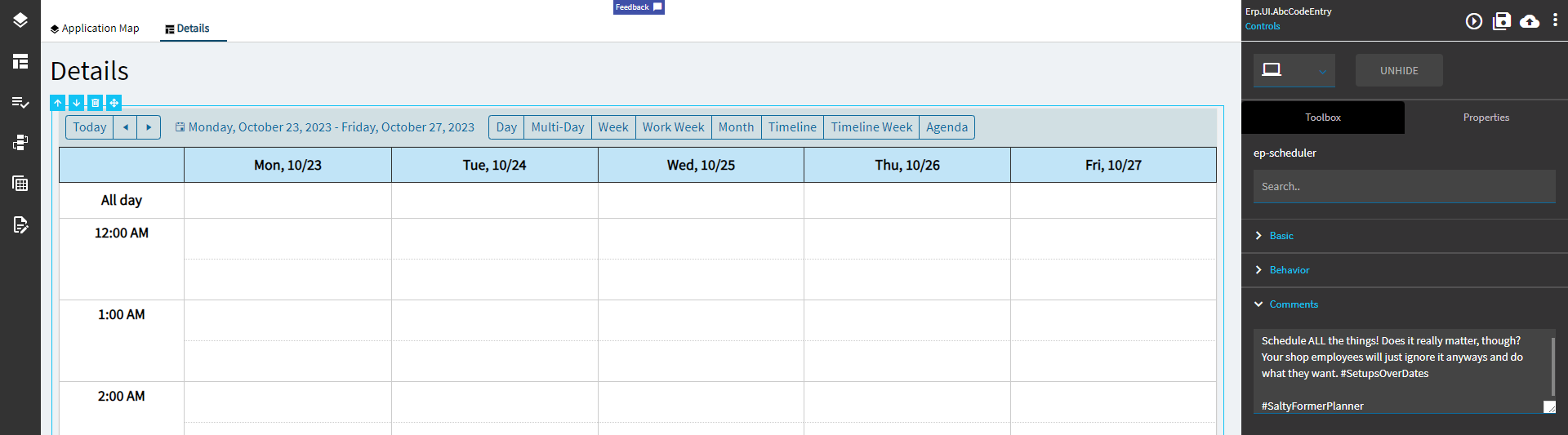

Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. A)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one. Not really relevant for this control.
Data	EpBinding	Bind the control to a DataView. This is the DataView it will look to when specifying the upcoming columns.
Data > Column Bindings	Event Id Column	This is the unique identifier for the event. Generating a GUID would be ideal for this. I used the current dateTime because that’s what Epicor did. (Fig. B)
Data > Column Bindings	Event Start Date Column	The column that holds the start date (and time!) (Fig. B)
Data > Column Bindings	Event End Date Column	The column that holds the end date (and time!) (Fig. B)
Data > Column Bindings	Event Title Column	The column that holds the title label for the event. (Fig. B)
Data > Column Bindings	Event Description Column	The column that holds the description. (Fig. B)
Data > Column Bindings	All Day Event Column	The column that holds a boolean for if it’s an all day event or not. (Fig. B)
Data > Editable	Select this to enable editing of events once created, including additional options for reoccurring and whatnot. (Fig. C)
Layout	Width	Sets the specific width (pixels) for the control. (Fig. D)
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
Advanced	Disable Day View	Removes the option to select this view from the top of the scheduler. (Fig. E)
Advanced	Disable MultiDay View	Removes the option to select this view from the top of the scheduler. (Fig. E)
Advanced	Disable Week View	Removes the option to select this view from the top of the scheduler. (Fig. E)
Advanced	Disable Work Week View	Removes the option to select this view from the top of the scheduler. (Fig. E)
Advanced	Disable Month View	Removes the option to select this view from the top of the scheduler. (Fig. E)
Advanced	Disable Timeline View	Removes the option to select this view from the top of the scheduler. (Fig. E)
Advanced	Disable Timeline Week View	Removes the option to select this view from the top of the scheduler. (Fig. E)
Advanced	Disable Agenda View	Removes the option to select this view from the top of the scheduler. (Fig. E)
Advanced	Show Work Hours	If set to true, the view will be initially shown in the business hours mode. By default, the view is displayed in the full-day mode. Applicable for the Day, Week, and Timeline Views. When Enabled, it also displays two, new properties called Work Start Time and Work End Time to define the working hours. (Fig. F)
Advanced	Enable Export to PDF	Shows a button that enables a user to export the view currently displayed to a PDF (Fig. G)
Advanced	Number of Days	Number of days to show in the MultiDay view. (Fig. H)
Advanced	Work Start Time	EpBinding to define the start time for the work day (it’s a string…) Format: DataView.Column (Fig. I)
Advanced	Work End Time	EpBinding to define the end time for the work day (it’s a string…) Format: DataView.Column (Fig. I)
Advanced	Selected Date	EpBinding for the selected date. Format: DataView.Column. (Fig. J)
Advanced	Number of hours to be displayed	Specifies the number of hours that the view will render. Applicable for the Day, MultiDay, WorkWeek, and Week Views. (Fig. K)

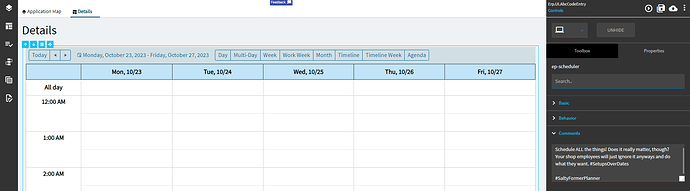

Figure A: Comments

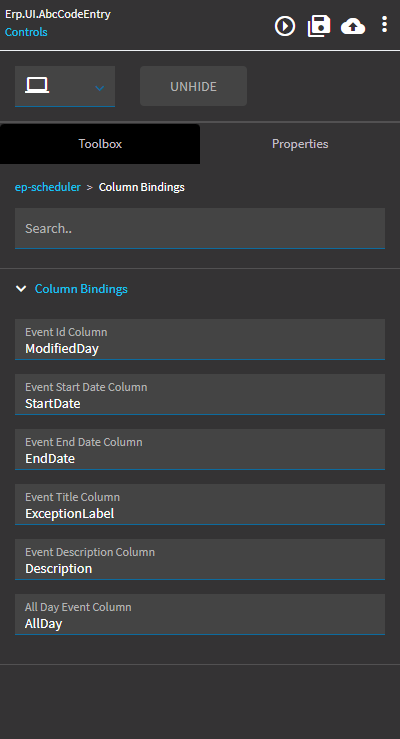

Figure B: Column Bindings
Remember, these come from whatever DataView you specified in the Data > EpBinding

Figure C: Editable
Probably should add some condition to the double click event, but I’m too lazy. I’m sure y’all can figure that but out.

Figure D: Width

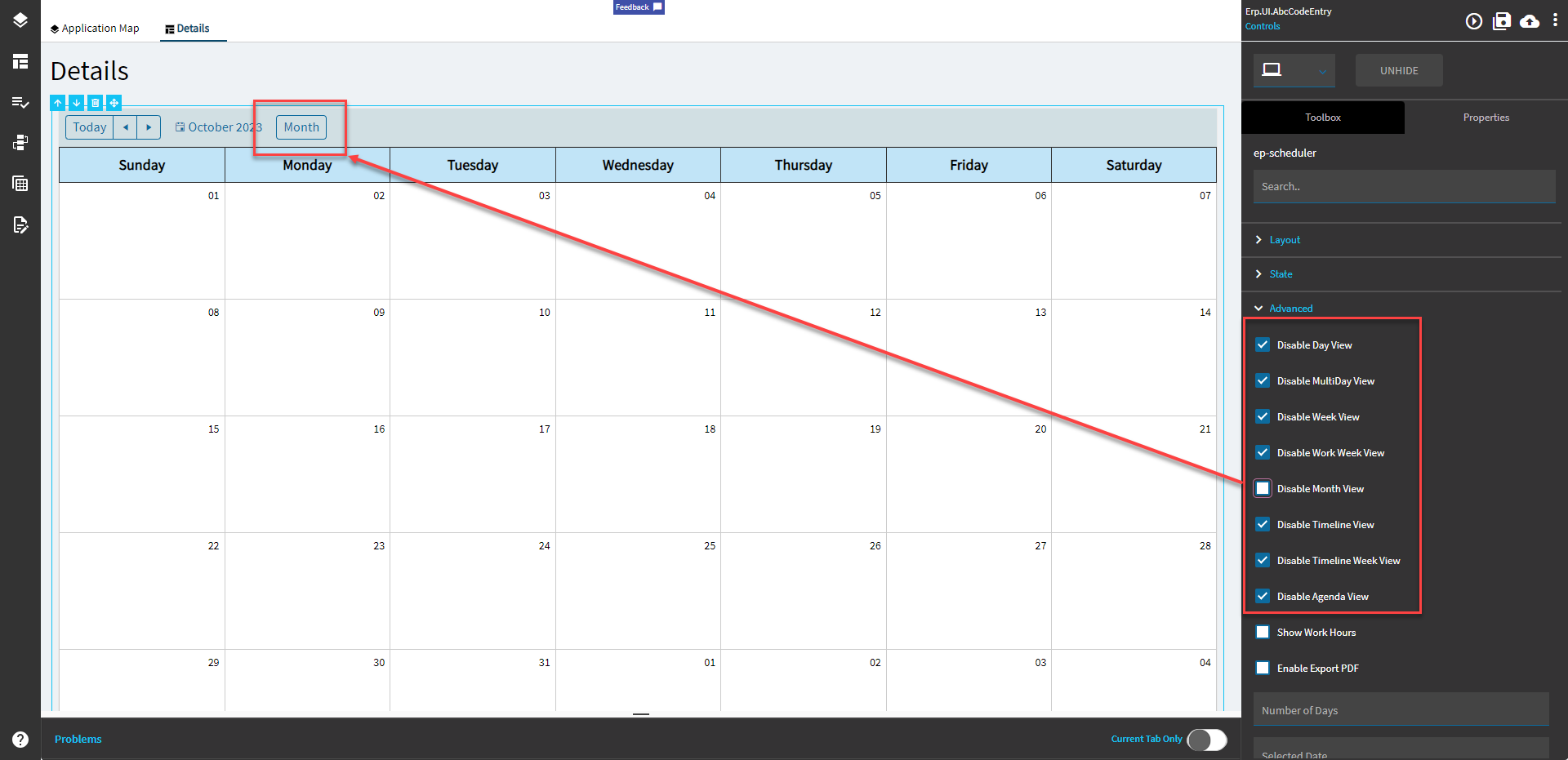

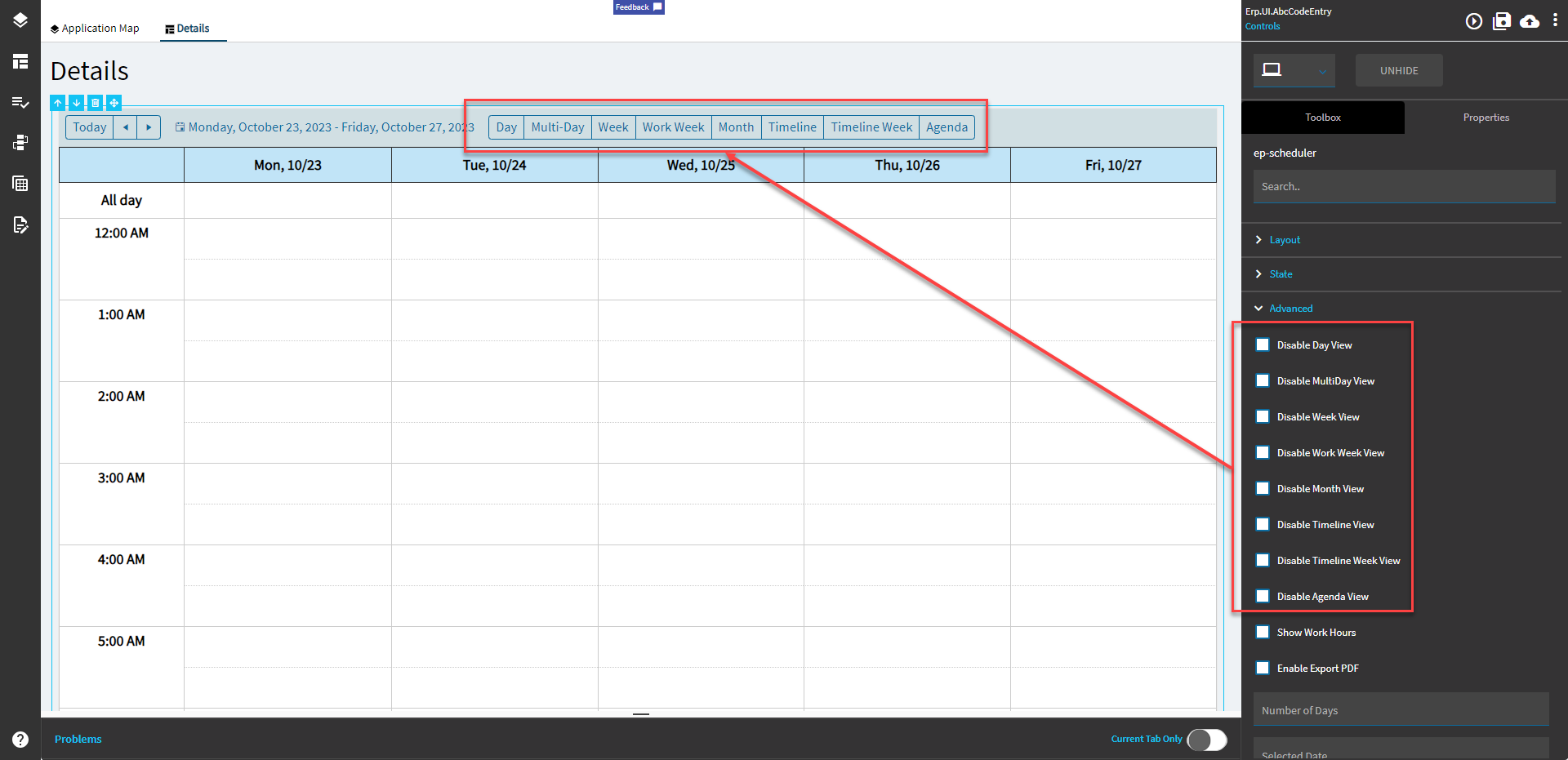

Figure E: Disable Views

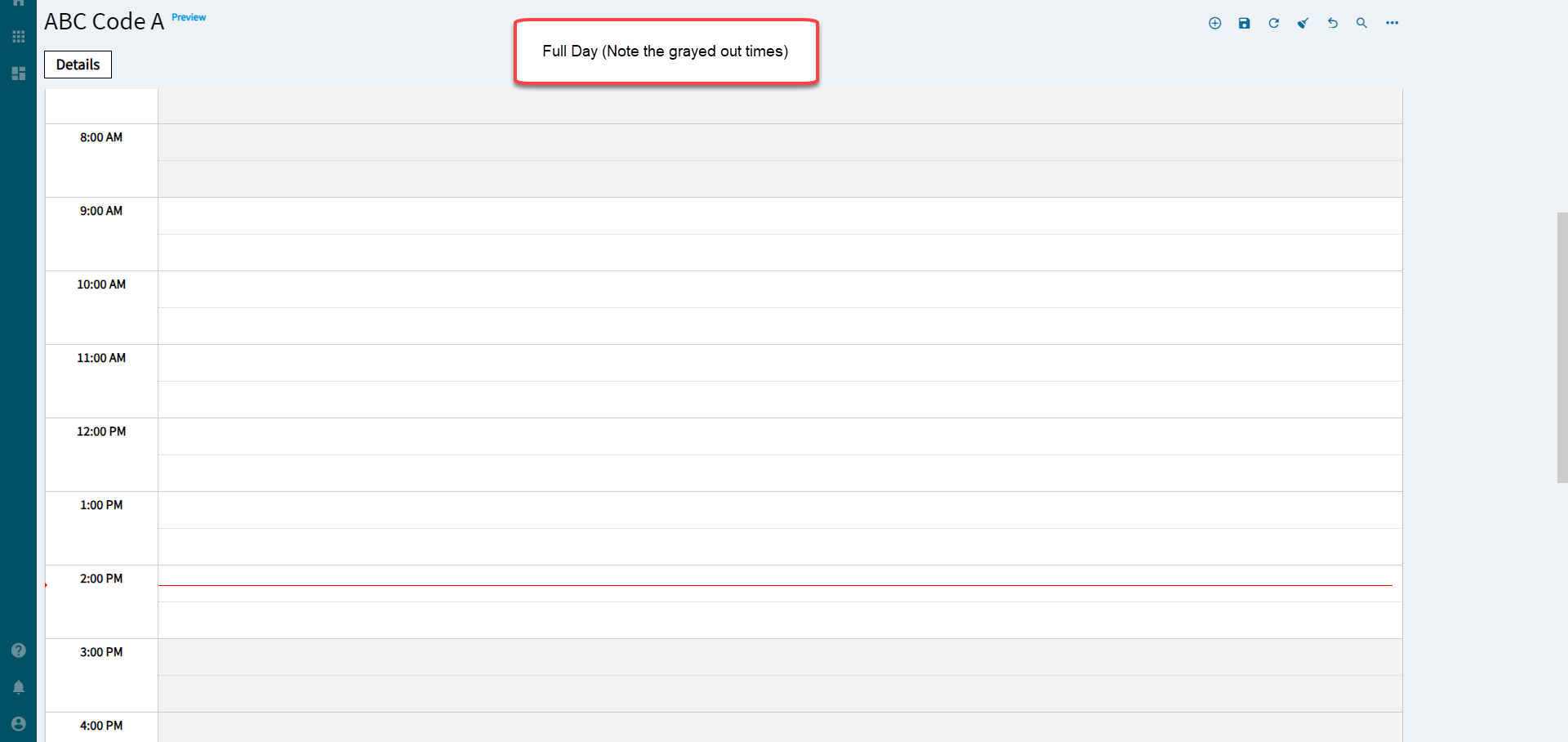

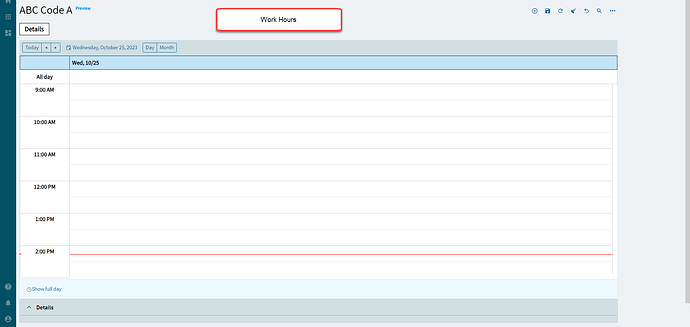

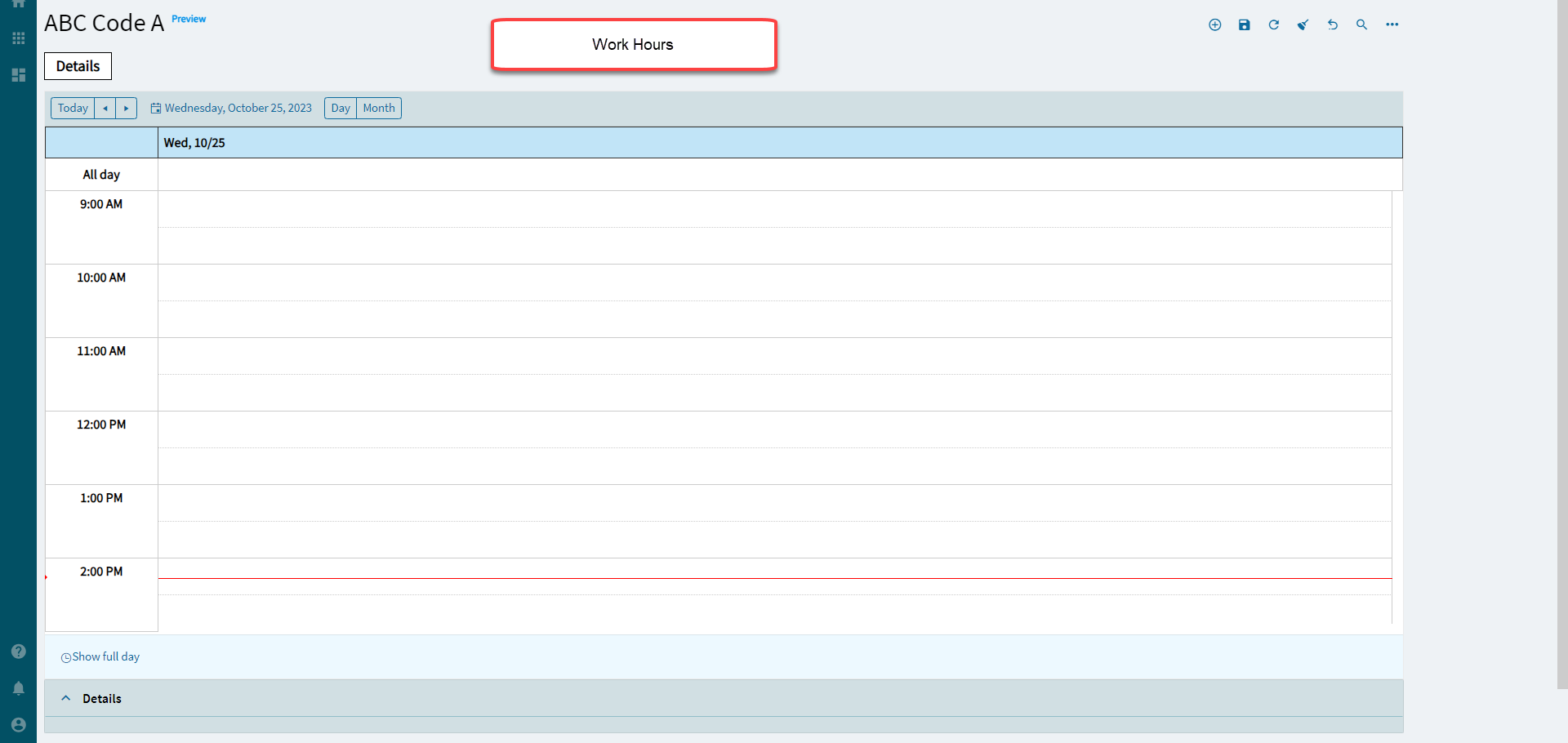

Figure E: Show Work Hours

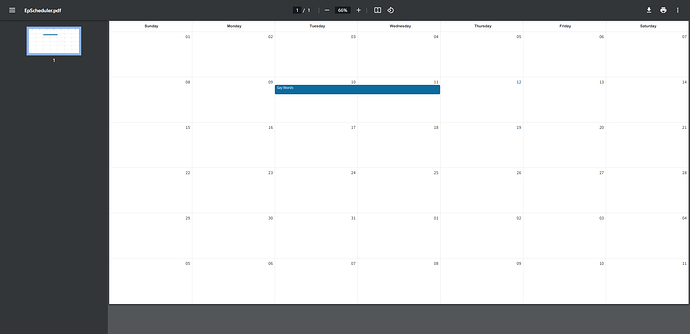

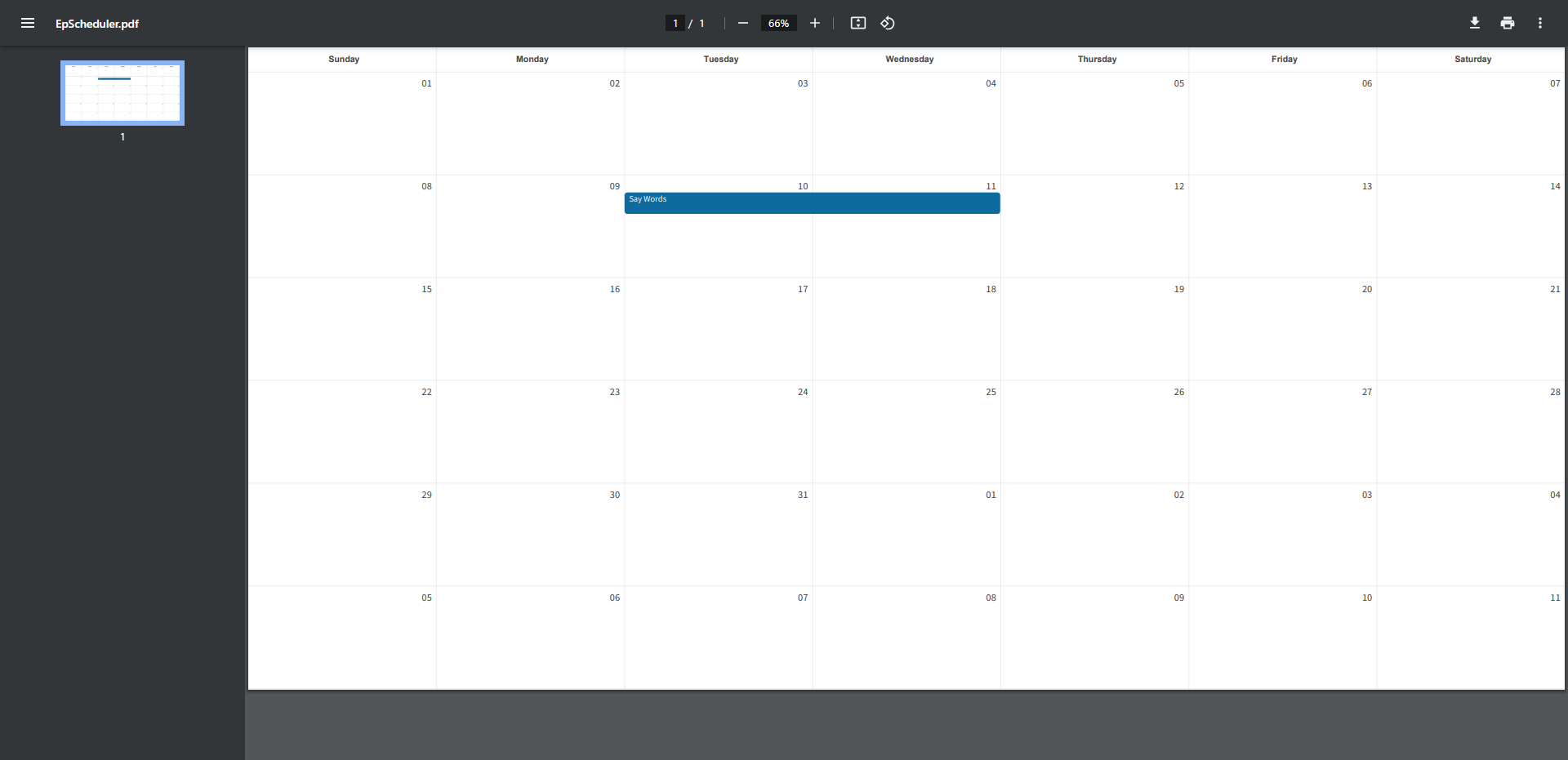

Figure G: Enable Export PDF

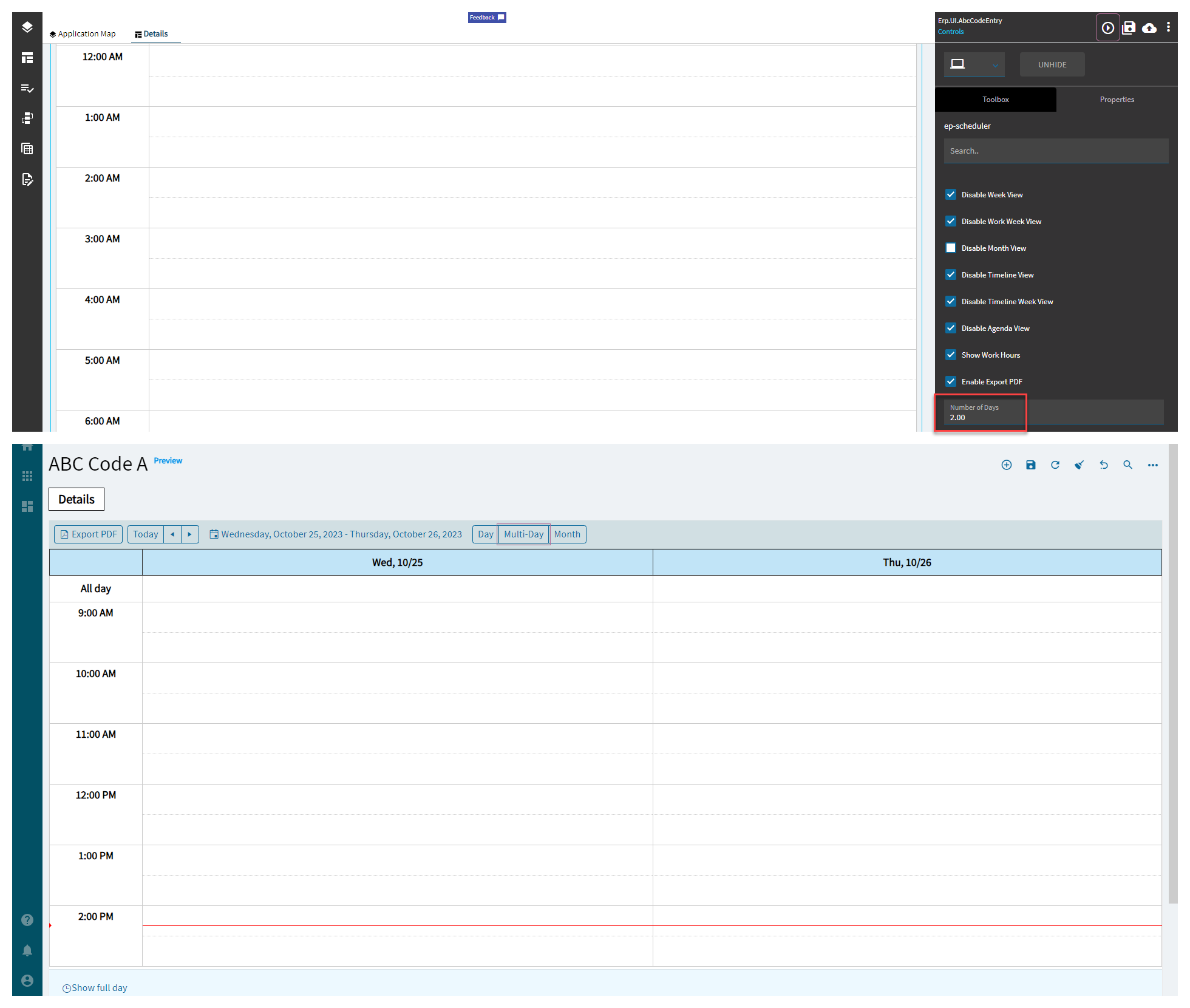

Figure H: Number of Days

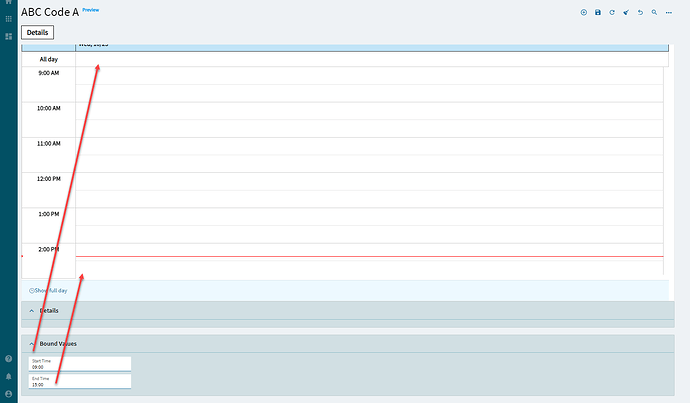

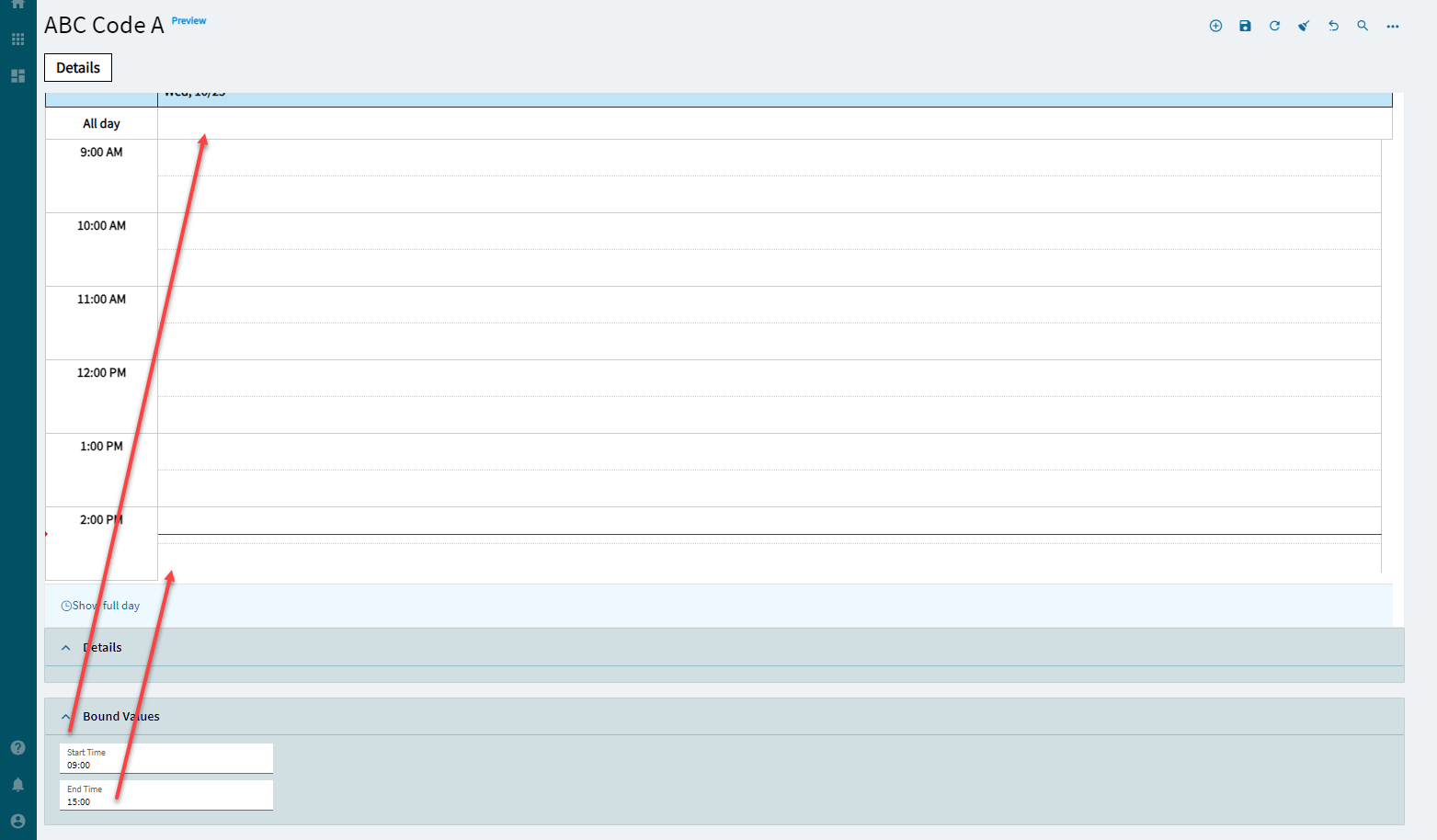

Figure I: Work Start and End Times

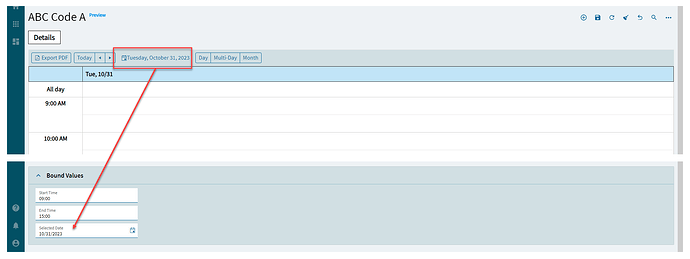

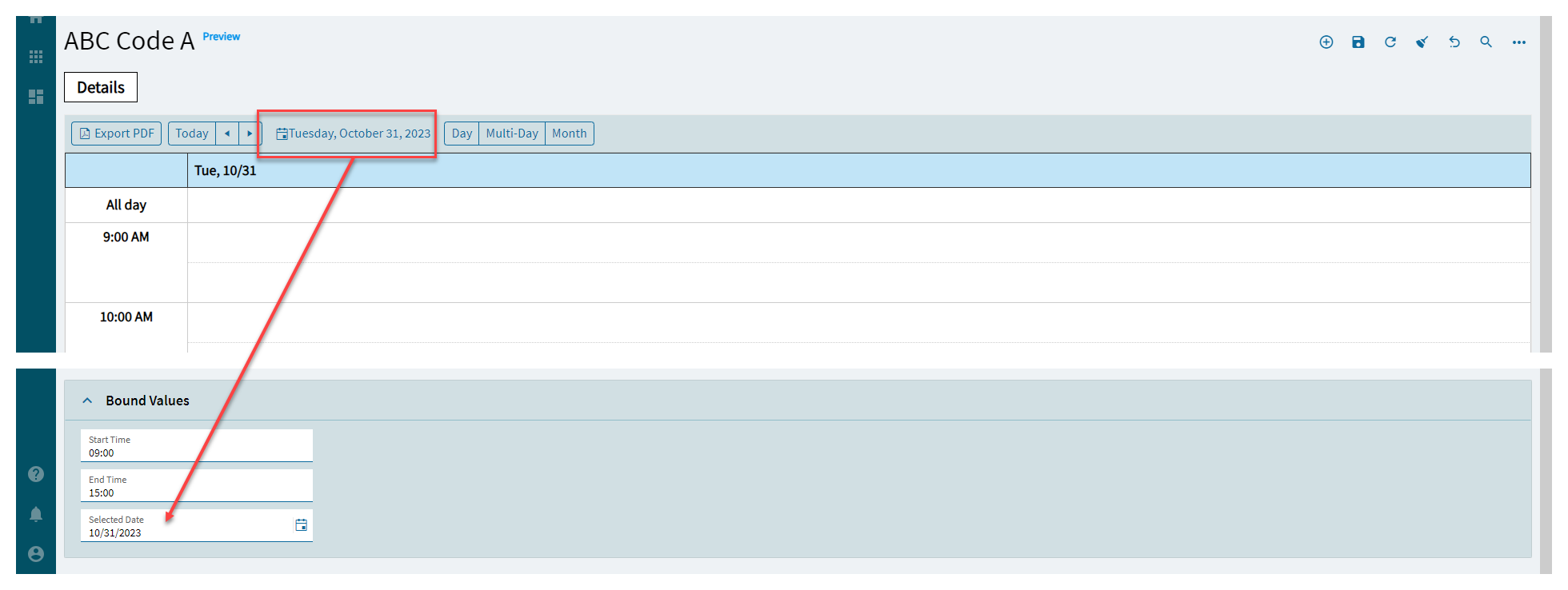

Figure J: Selected Date

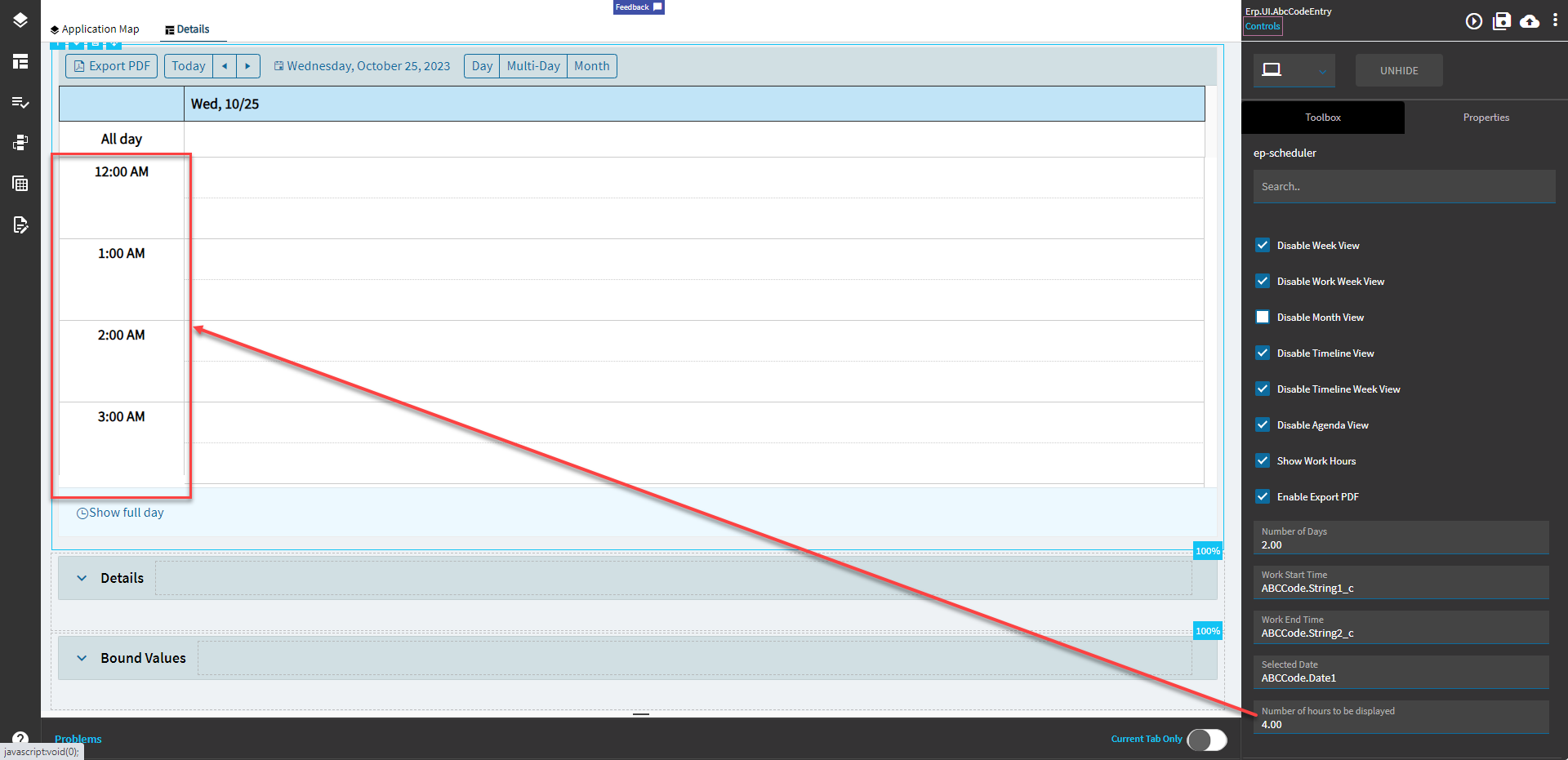

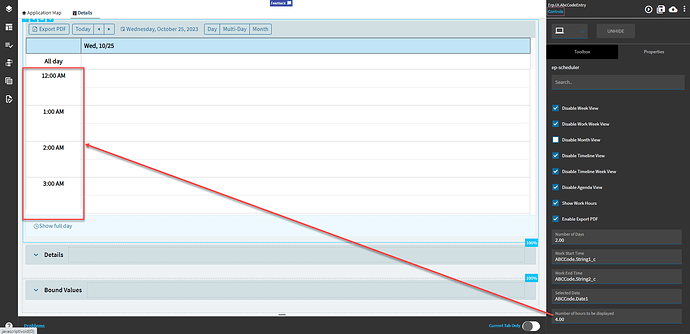

Figure K: Number of hours to be displayed

---

Appendix

DataViews

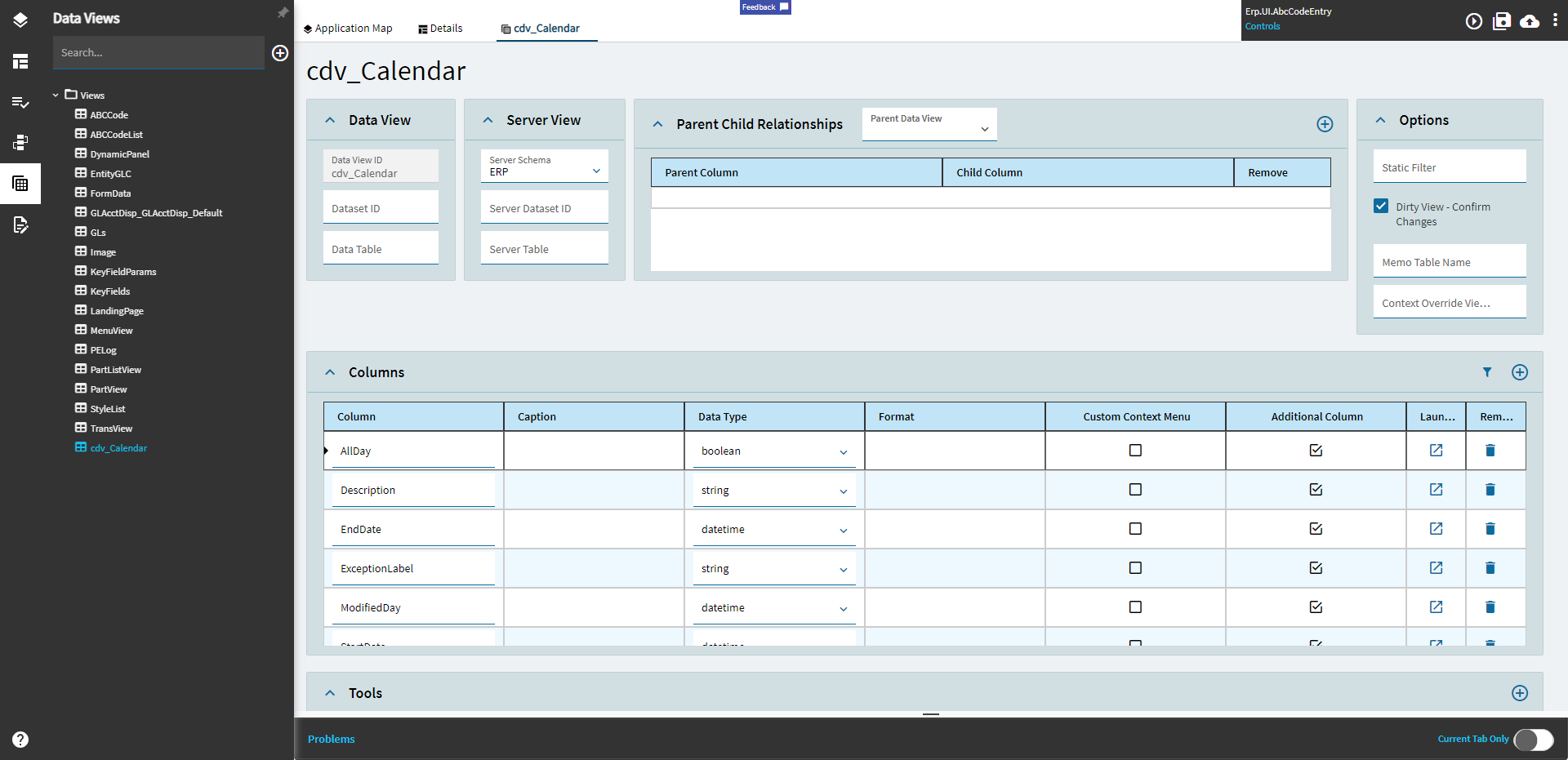

Create a dataview to hold the column bindings and to bind your grid to.

Slider

Create a slider or some other method for data input. All fields in the slider are bound to the “TransView” variation of the previous dataview. For instance, cdv_Calander.StartDate = TransView.StartDate on the slider. Don’t bind them to the cdv_Calander or it will create records upon opening.

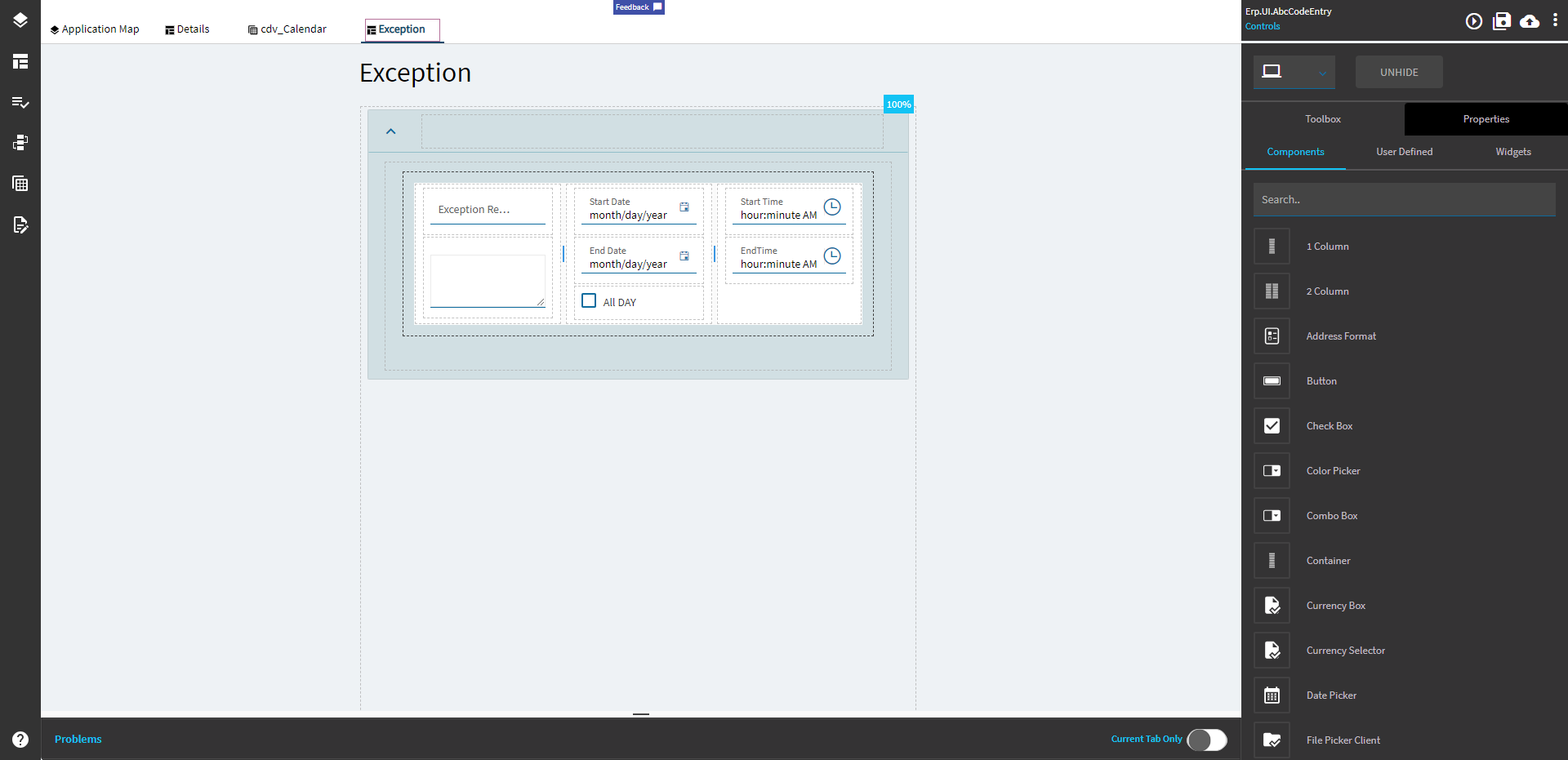

Don’t forget to add some buttons. (Delete is unnecessary if you make the Scheduler editable)

Events

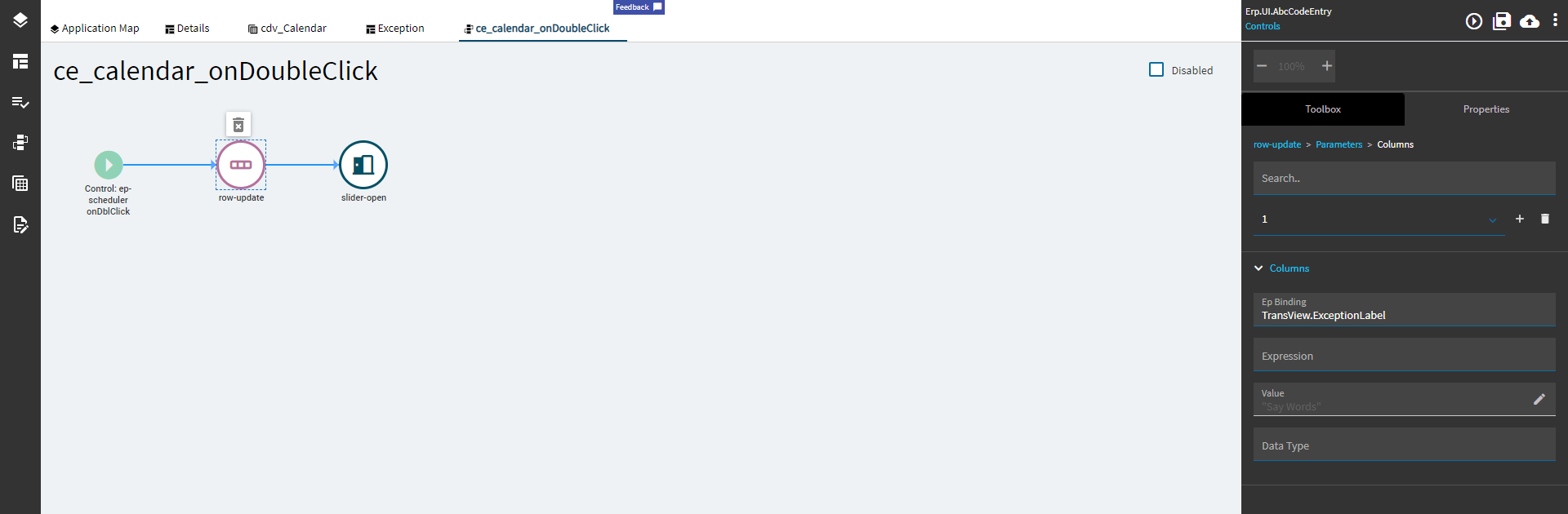

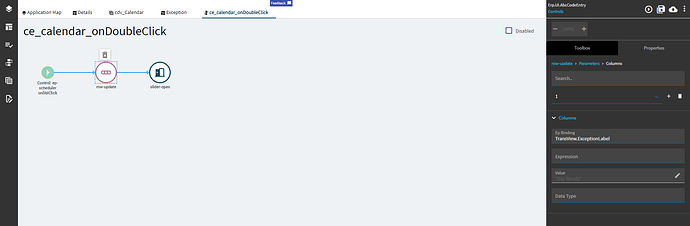

ce_calendar_onDoubleClick
Double click event to add a new item to the calendar. This initializes the TransView fields and then opens the slider.

I had to do some JS magic to get the fields to do what I wanted.
Here are each of the row-update items:

EpBinding: TransView.StartDate
Expression: new Date(new Date("%startDateTime%").setHours(0,0,0,0))
Notes: %startDateTime% is a built-in variable that will get the start date and time from the scheduler when you double click. For instance, if you click 10/14/2023 @ 1:00AM, the variable will yield 2023-10-14T01:00:00Z (24 hour time). The setHours(0,0,0,0) is to zero out the time and only provide the date since I’m setting the time in a different control.

EpBinding: TransView.StartTime
Expression: (new Date("%startDateTime%").getHours() * 3600) + (new Date("%startDateTime%").getMinutes() * 60) + (new Date("%startDateTime%").getSeconds())
Notes: This is converting the hours, minutes, and seconds into a seconds from midnight value.

EpBinding: TransView.EndDate
Expression: new Date(new Date("%endDateTime%").setHours(0,0,0,0))
Notes: %endDateTime% is a built-in variable that will get the end date and time in 30 minute increments from the scheduler when you double click. For instance, if you click 10/14/2023 @ 1:00AM, the variable will yield 2023-10-14T01:30:00Z (24 hour time). The setHours(0,0,0,0) is to zero out the time and only provide the date since I’m setting the time in a different control.

EpBinding: TransView.EndTime
Expression: (new Date("%endDateTime%").getHours() * 3600) + (new Date("%endDateTime%").getMinutes() * 60) + (new Date("%endDateTime%").getSeconds())
Notes: This is converting the hours, minutes, and seconds into a seconds from midnight value.

EpBinding: TransView.AllDay
Value: false

EpBinding: TransView.Description
Value: ""

EpBinding: TransView.ExceptionLabel
Value: "Say Words"

EpBinding: TransView.StartDateTime
Value: "%startDateTime%"
Notes: This is my unique ID for column binding. Again, might be better to use a GUID, but I just followed what Epicor did and it seems to work fine.

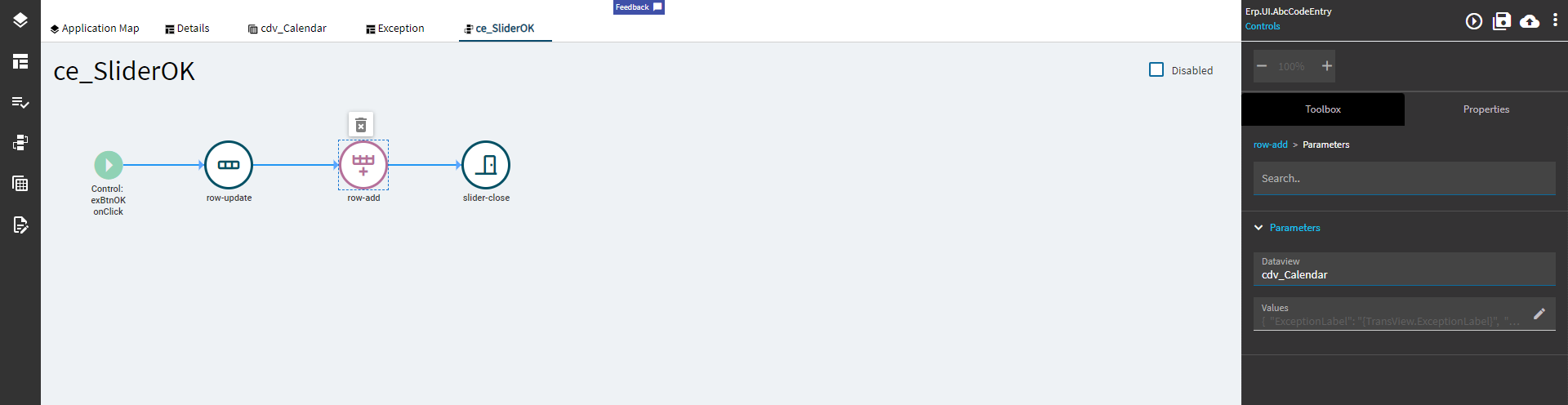

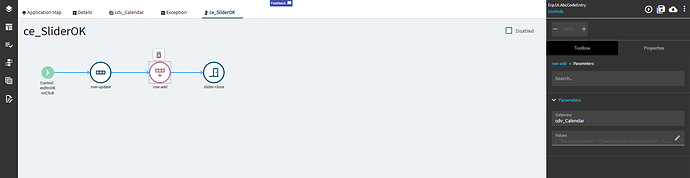

ce_SliderOK
This event adds the new records to the dataview and subsequently adds the visual to the calendar.

Again, some more JS magic for the row-update.

EpBinding: TransView.StartDate
Expression: new Date((new Date("{TransView.StartDate}")).setSeconds((new Date("{TransView.StartDate}")).getSeconds() + {TransView.StartTime}));
Notes: This is adding the seconds from the time control to the date control.

EpBinding: TransView.EndDate
Expression: new Date((new Date("{TransView.EndDate}")).setSeconds((new Date("{TransView.EndDate}")).getSeconds() + {TransView.EndTime}));
Notes: This is adding the seconds from the time control to the date control.

row-add
DataView: cdv_Calander (or whatever yours is called)
Values:

{
	"ExceptionLabel": "{TransView.ExceptionLabel}",
	"ModifiedDay": "{TransView.StartDateTime}",
	"AllDay": "{TransView.AllDay}",
	"Description": "{TransView.Description}",
	"StartDate": "{TransView.StartDate}",
	"EndDate": "{TransView.EndDate}"
}

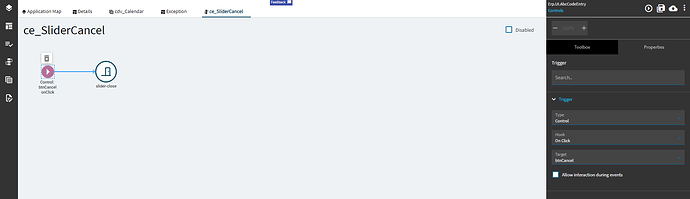

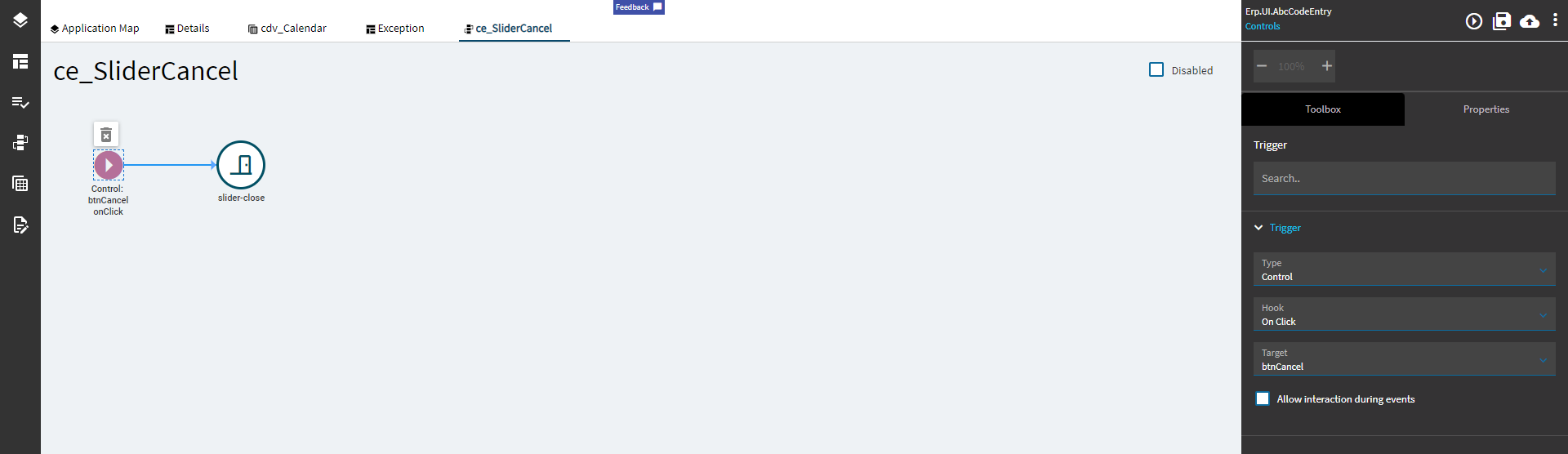

ce_SliderCancel
Just closes the slider without modifying data.

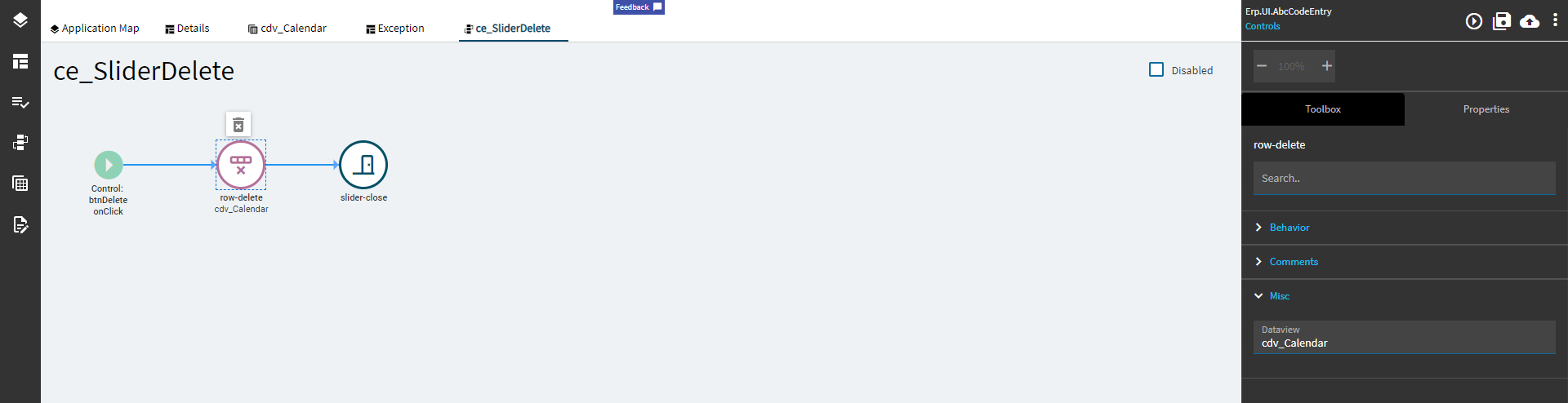

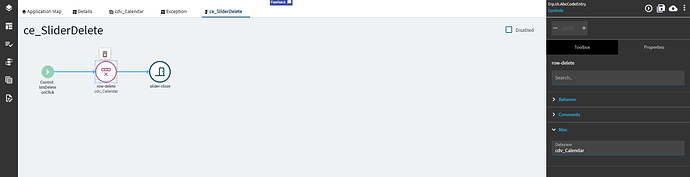

ce_SliderDelete
Again, this is unnecessary with the editable button, but here it is for demonstration purposes.

[hmwillett (Hannah Willett)]

Search Chip Selector

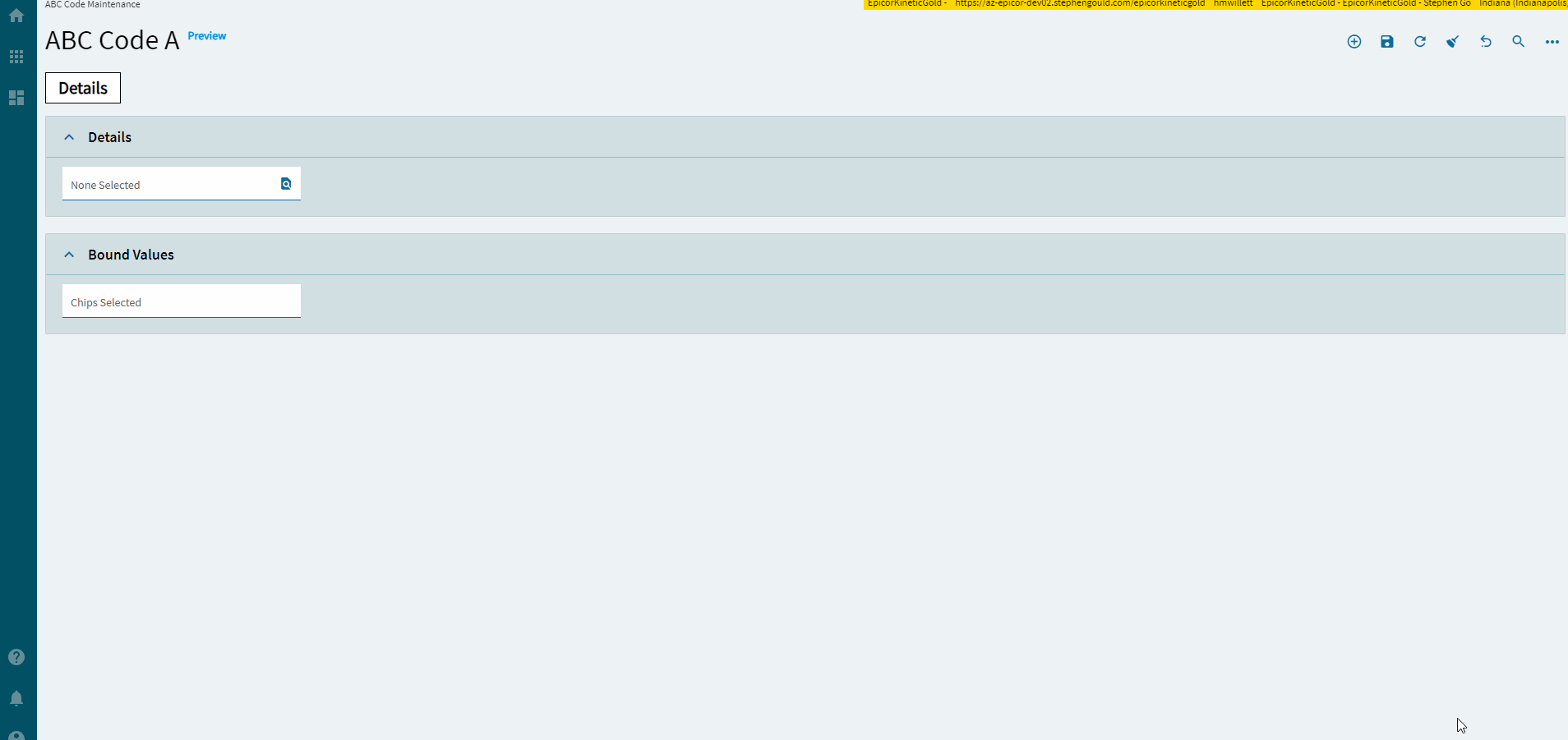

Allows a user to search and display selected items as chips.

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Basic	Title	Set the title that is displayed at the top of the panel card. ??? Panel card? This doesn’t work.
Behavior	On Search Click	Click this to create an OnSearchClick event for the control. You will need to wire the search up yourself and use a dataview-condition (or function) in the event to concat each value selected.
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. A)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column. The value of this binding needs to be a tilde delimited string. Item1~Item1~Item3.

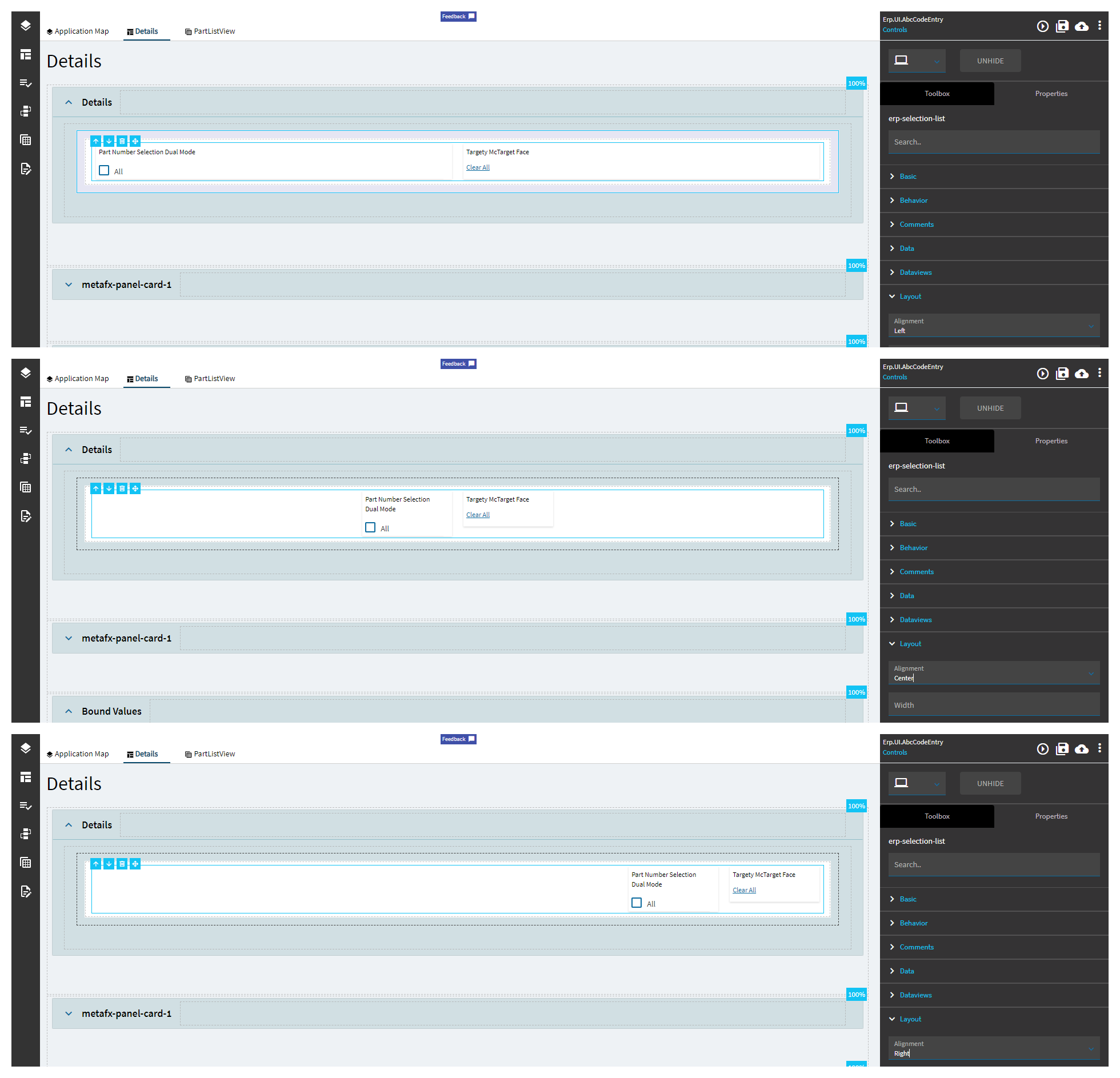

Layout	Alignment	Sets the alignment of the control. (Fig. B)
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
State	Auto Focus	When enabled, the control is automatically focused on creation.

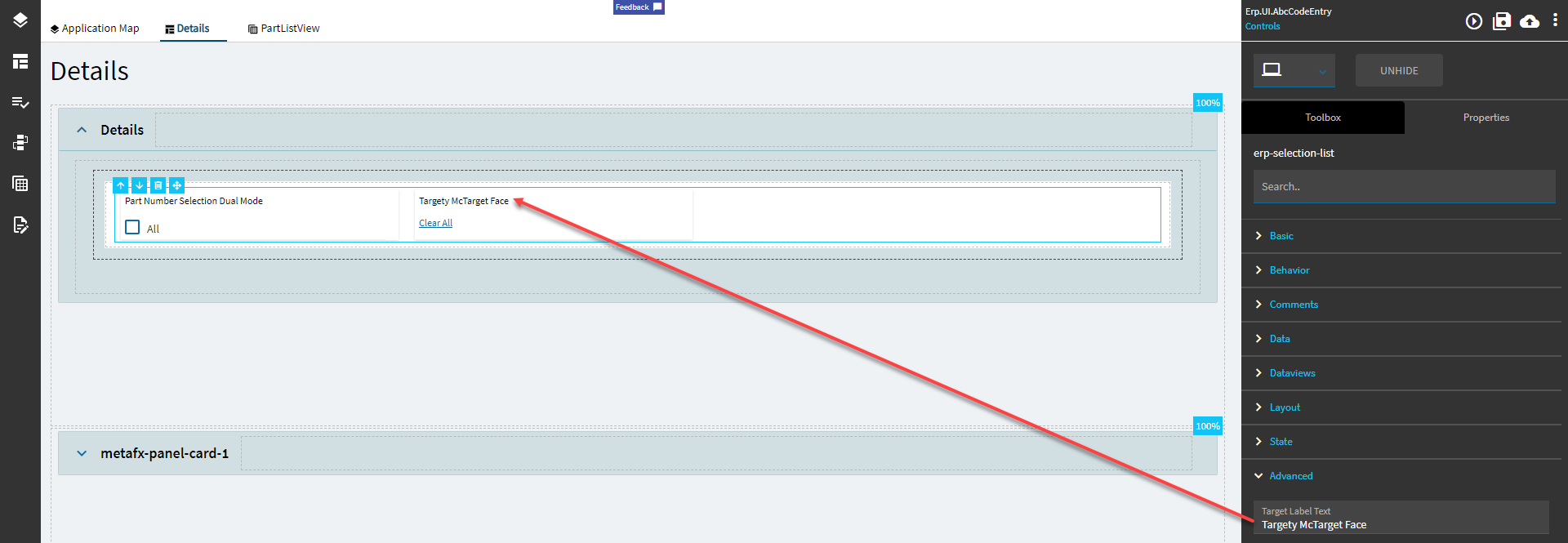

Advanced	Plural Label Text	Sets the label text when multiple chips are selected.
Advanced	Singular Label Text	Sets the label text when a single chip is selected.
Advanced	Set the label text when no chip is selected.
Advanced	Error Message Text	Sets the chip validation error message.

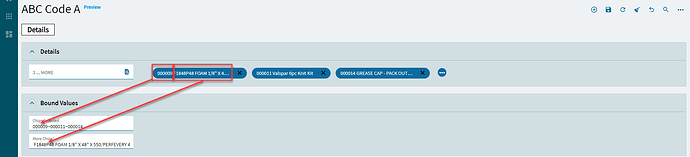

Advanced > MultiField Bindings	EpBinding	Set the data binding using format DataView.Column. This will allow you to display multiple values on the chip. For each chip, it will display the first item in binding 1 followed by the first item in binding 2… etc. (Fig. C)
Advanced > MultiField Bindings	Display Value	Sets the above epBinding as the chip label. I didn’t notice this doing anything.

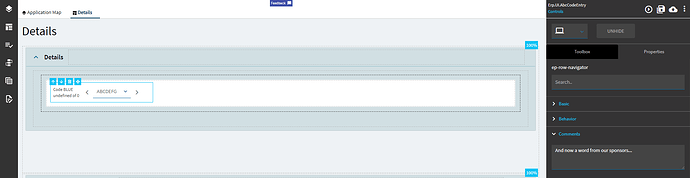

Figure A: Comments

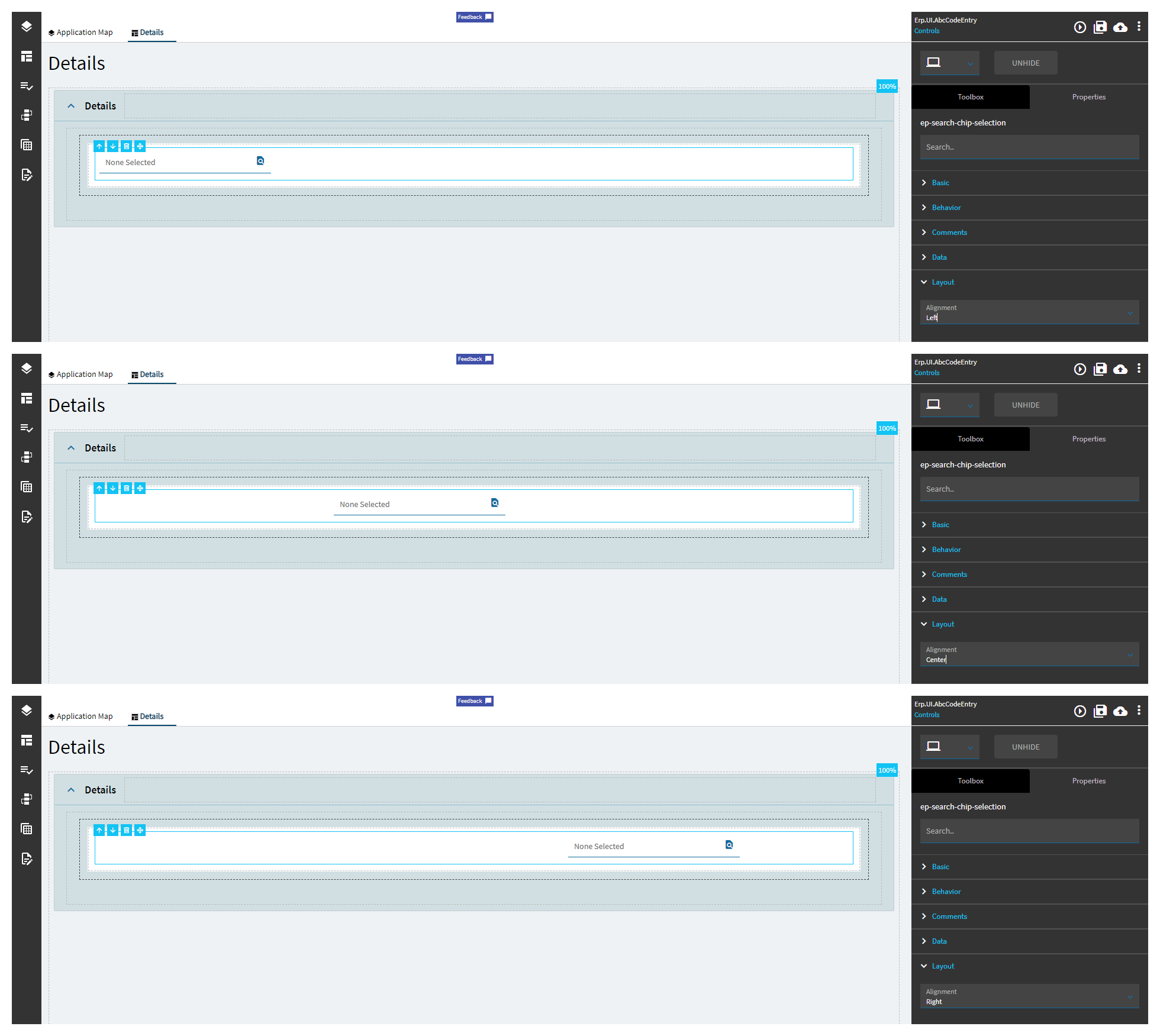

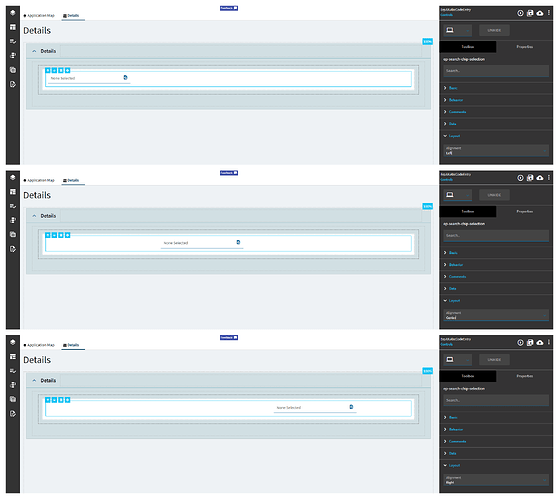

Figure B: Alignment

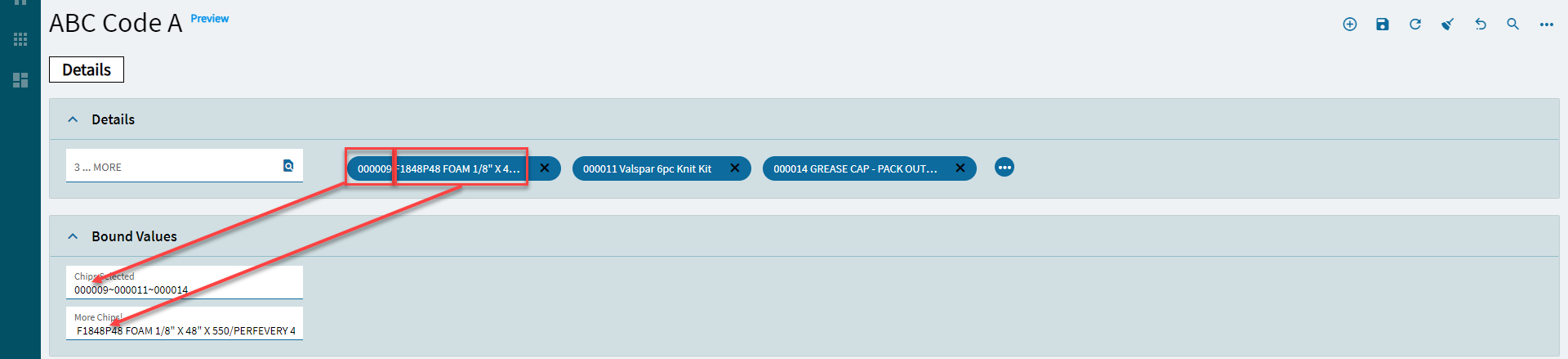

Figure C: MultiField Binding

[hmwillett (Hannah Willett)]

Selection List

Allows a user to select and sort a collection of data items.

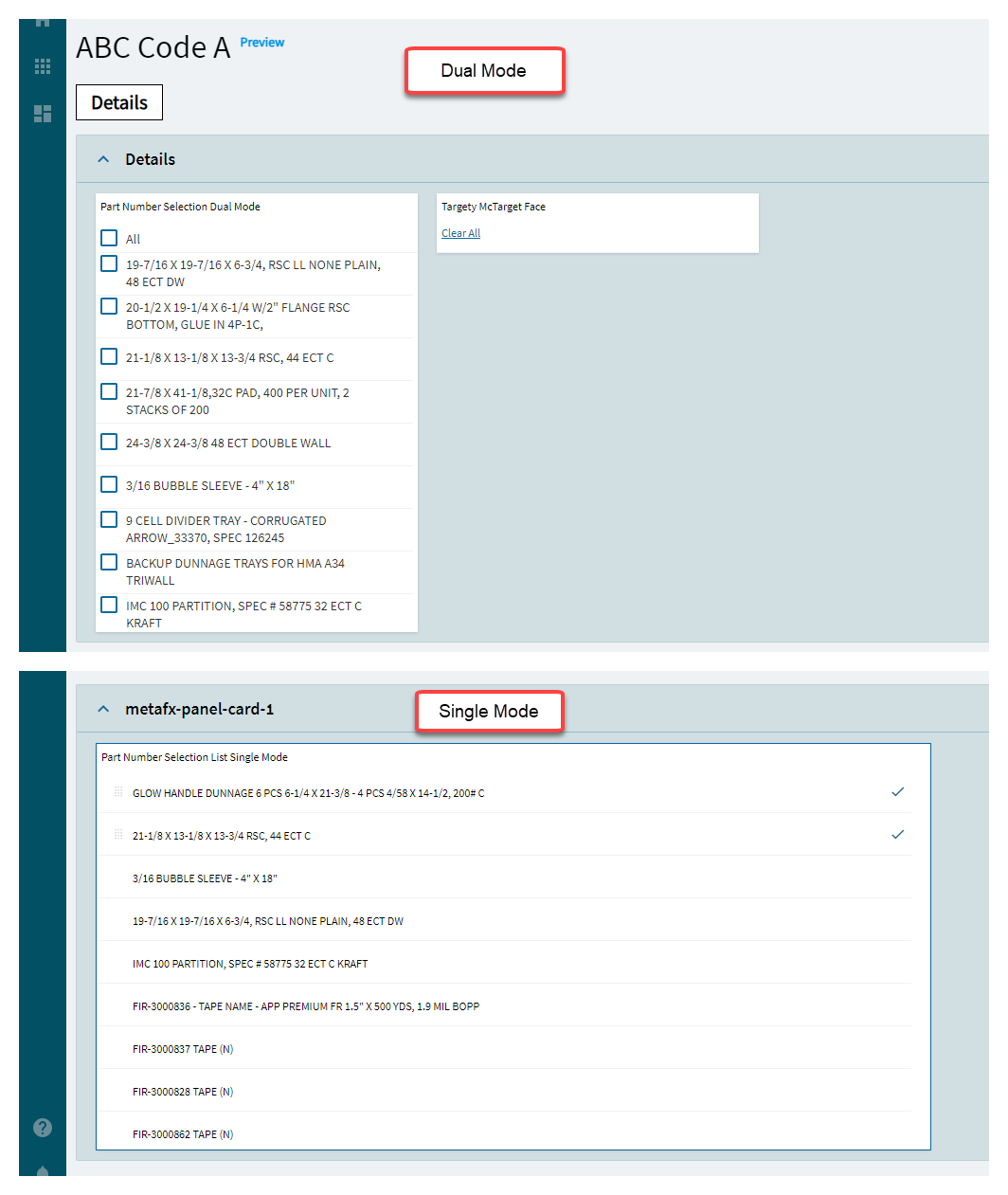

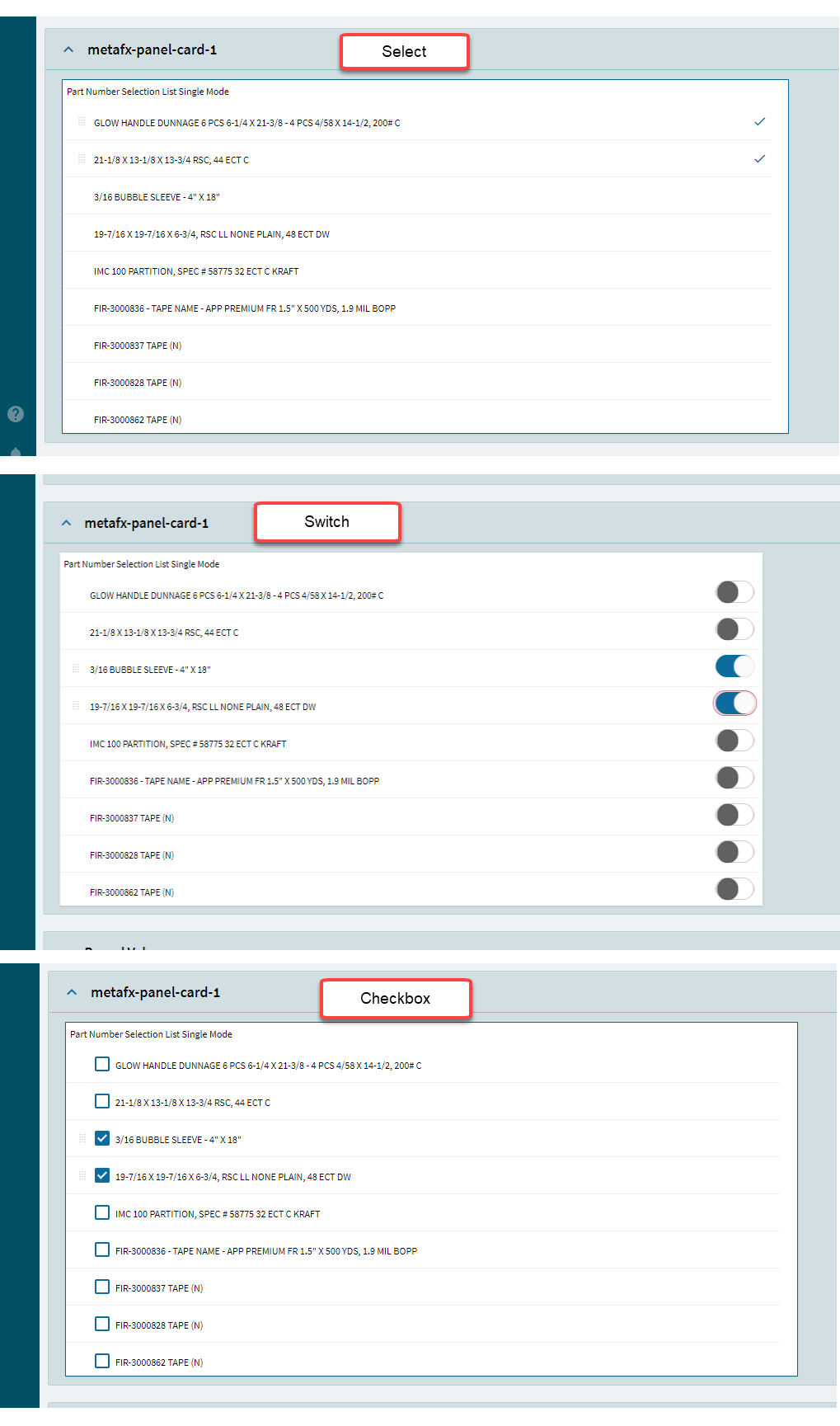

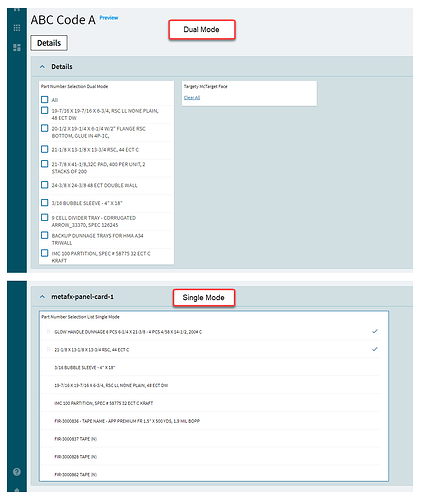

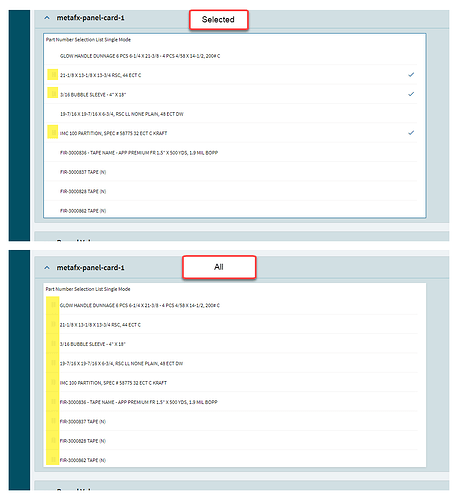

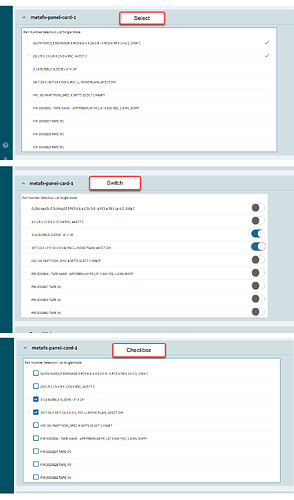

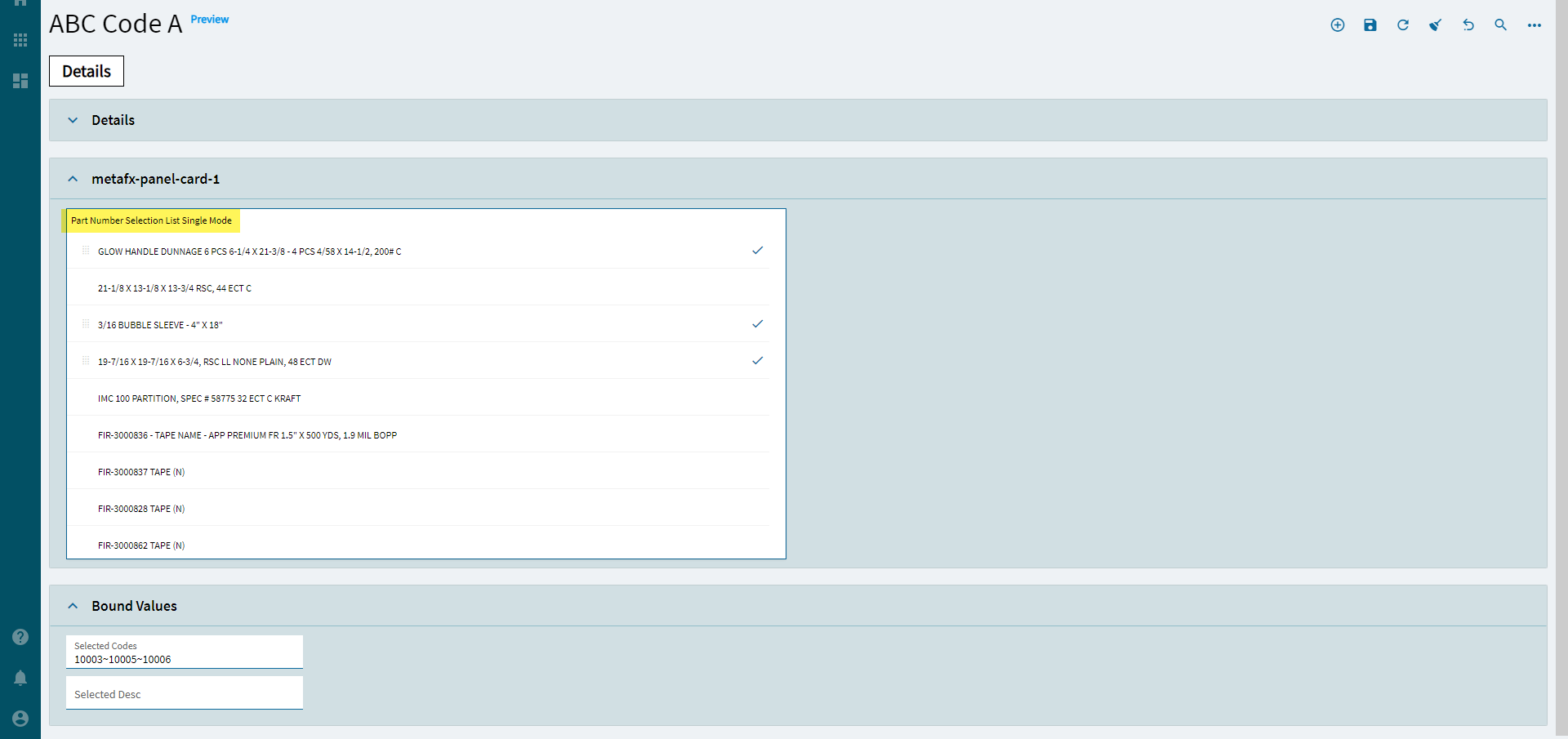

This control has a few different flavors to it and can be changed up visually in a number of different ways.

Property Group	Property	Description
Basic	Id	Unique identifier for the control

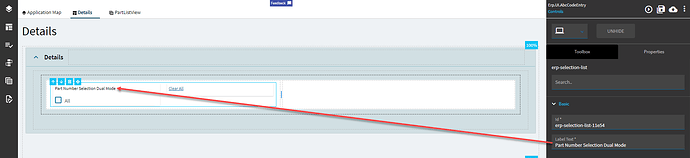

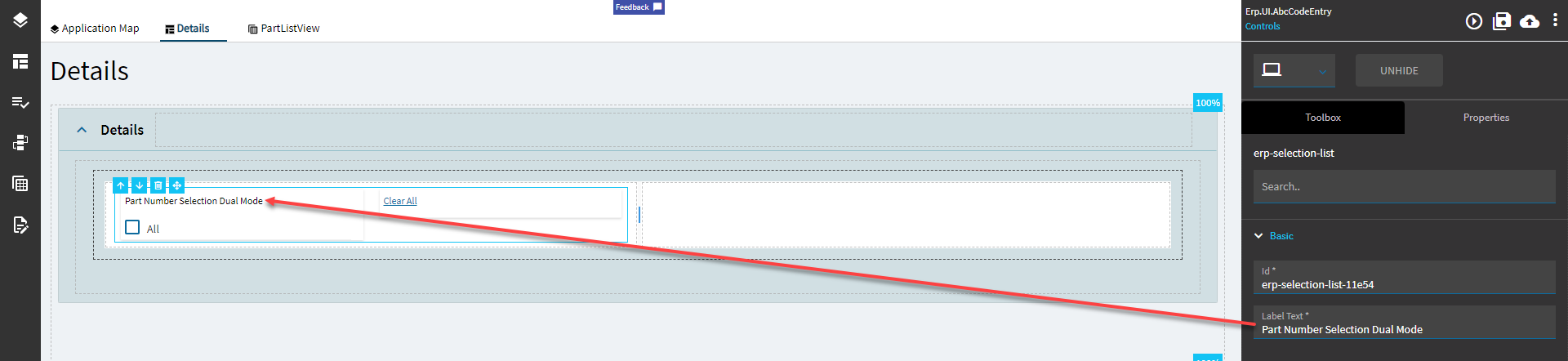

Basic	Label Text	Sets the label within the control. (Fig. A)
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.
Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. B)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one. Not relevant to this control.
Data	EpBinding	Bind the control to a DataView.Column. This is used to store the delimited list of items. Can be used to apply row rules to the control.
Data	List	This can be used to define hard coded items for the list instead of a dataview.

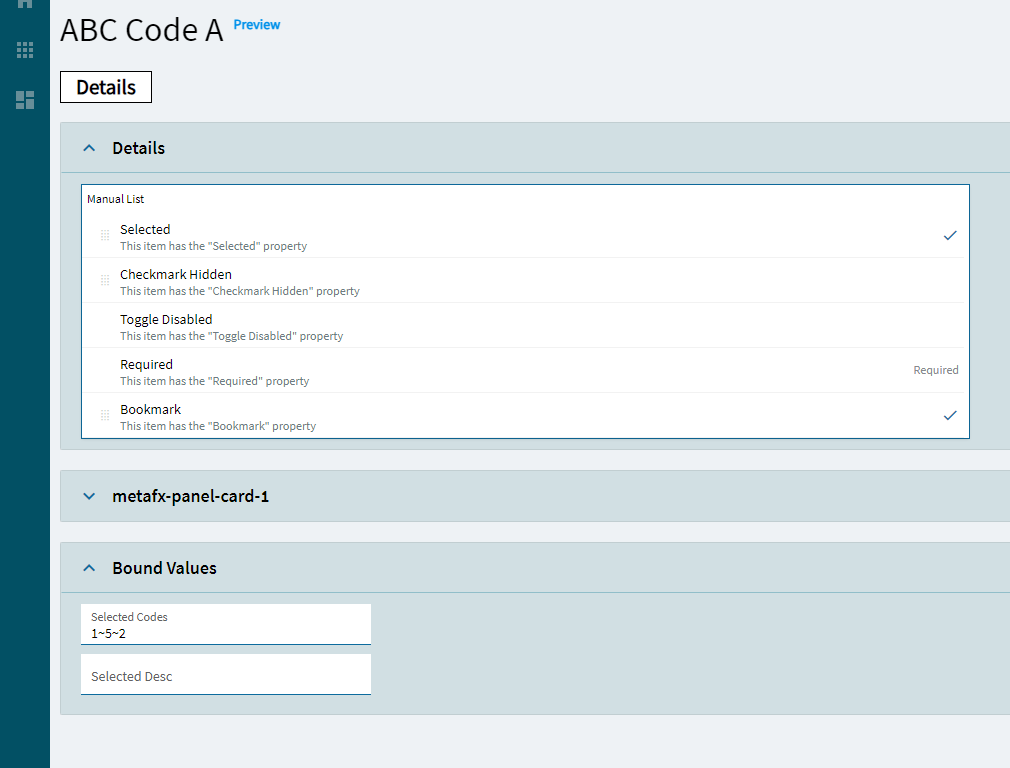

Data > List	Id	Unique ID for the item. (Fig. C)
Data > List	Text	Set the text value for the item (Fig. C)
Data > List	Id Name	Obsolete
Data > List	Description	Set the detailed description for the item (Fig. C)
Data > List	SubText	Set the sub-text value for the item. Doesn’t seem to do anything.
Data > List	LeftIcon	Set the icon for the list item. Doesn’t seem to do anything.
Data > List	Command	Set the command string for the list item. No clue here.
Data > List	Selected	Set the flag to indicated if the item is selected by default. (Fig. C)
Data > List	Checkmark Hidden	Set the flag to indicate if the selected item has a hidden checkmark. Seems weird, but okay. (Fig. C)
Data > List	Toggle Disabled	Set the flag to indicate if the item is disabled. This works, as in you cannot select it, but there’s no visual indicator to indicate that. (Fig. C)
Data > List	Required	Set the flag to require this list item. (Fig. C)
Data > List	Bookmark	Set the flag indicating the list item has a bookmark. #Shrug
Dataviews	Source View Name	Set the view name used to populated the source list. Format: DataView
Dataviews	Source Table Name	Set the table name used to populate the source list. Unsure on this one. It’s not clear what a table is within the context of App Studio.
Dataviews	Source Code Col	Column name used to populate the source list item ID. Format: ColumnName
Dataviews	Source Desc Col	Column name used to populate the source list item description. Format: ColumnName
Dataviews	Target View Name	Set the view name used to populated the targetlist. Format: DataView
Dataviews	Target Table Name	Set the table name used to populate the target list. Unsure on this one. It’s not clear what a table is within the context of App Studio.
Dataviews	Target Code Col	Column name used to populate the target list item ID. Format: ColumnName
Dataviews	Target Desc Col	Column name used to populate the target list item description. It yells at you in Dev Tools if you populate this. Format: ColumnName
Dataviews	Table Name	Set the table name used with source AND target codes and descriptions
Dataviews	Parent Related Col	Set the name of the column on the parent table. Used when binding to parent/child related tables.
Dataviews	Child Related Col	Set the name of the column on the child table. Used when binding to parent/child related tables.
Dataviews	Related Col	Set the shared name of the column on both the parent and child tables. Used when binding to parent/child related tables.

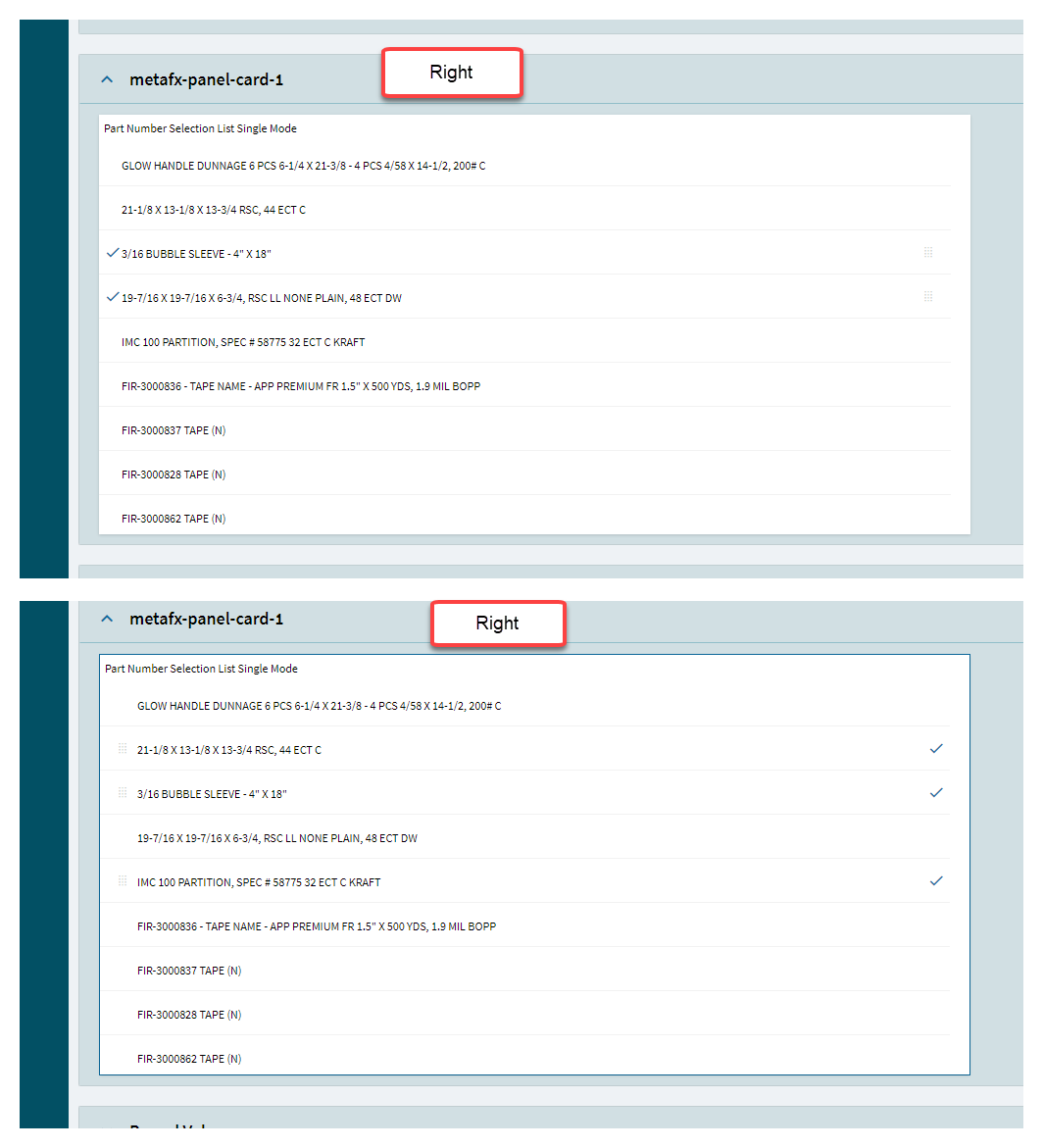

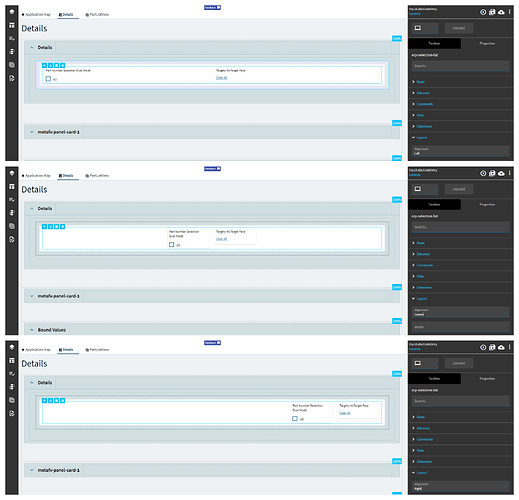

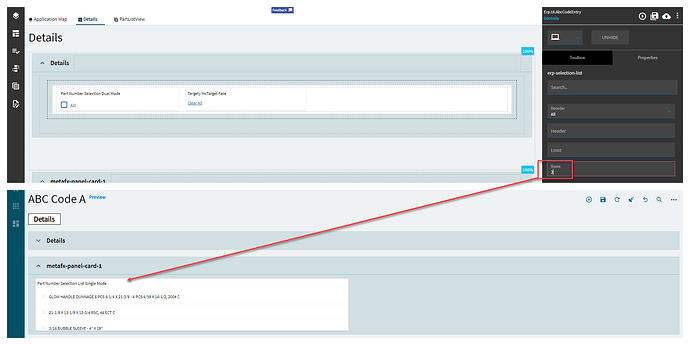

Layout	Alignment	Sets the alignment of the control. (Fig. D)
Layout	Width	Sets the specific width (pixels) for the control. (Fig. E)
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
State	Auto Focus	When enabled, the control is automatically focused on creation.
Advanced	Target Label Text	Set the label text for the target list. (Fig. F)

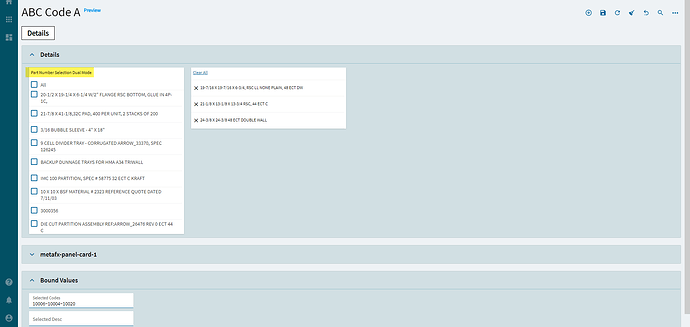

Advanced	Mode Type	Set the display mode. Valid options include: Single and Dual. (Fig. G)
Advanced	UI Mode	Set the selection mode. Valid options include: Select, Switch, SingleSelect (Doesn’t really stop you), Checkbox. (Fig. H)
Advanced	Position Mode	Set the position of the text. Valid Options Include: Left or Right (Fig. I)
Advanced	Reorder	Set the reorder mode. Valid Options Include: Select or All (Fig. J)
Advanced	Header	Sets the label text for the list. Only used on Panel Mode. Not sure what panel mode is, but it ain’t this!
Advanced	Limit	Sets the limit of the items to be displayed. Only used on Panel Mode. Not sure what panel mode is, but it ain’t this!
Advanced	Rows	Sets the number of items to be displayed (can scroll for more). Used in all modes except Panel. (Fig. K)
Advanced	Manual Sort	Sets the flag indicating if a sort button should be shown. Doesn’t do anything. Might be only for “Panel Mode”
Advanced	Show Edit	Set the flag indicating if an edit button should be shown. Only for Panel Mode. WTF IS PANEL MODE??
Advanced	Enable Edit	Set the flag indicating if editing of list items is allowed. Only used on… you guess it… Panel Mode.
Advanced	Enable Header Edit	Sets the flag indicating if the edit button should be presented at the top of the list. OnLy UsEd In PaNeL mOdE.
Advanced	Value Primitive	Specify the type of the selected value. If set to true, the selected value has to be of a primitive value.
Advanced	Delimited	Set the flag indicating if the multi-select value for binding is delimited. This is required for multi select.
Advanced	Delimiter	Set the delimiter character. Valid options include: ~ , ` (tilde, comma, tick).
Advanced	EpiLabel	Obsolete
Advanced	Draggable	Obsolete

Figure A: Label Text

Figure B: Comments

Figure C: Items

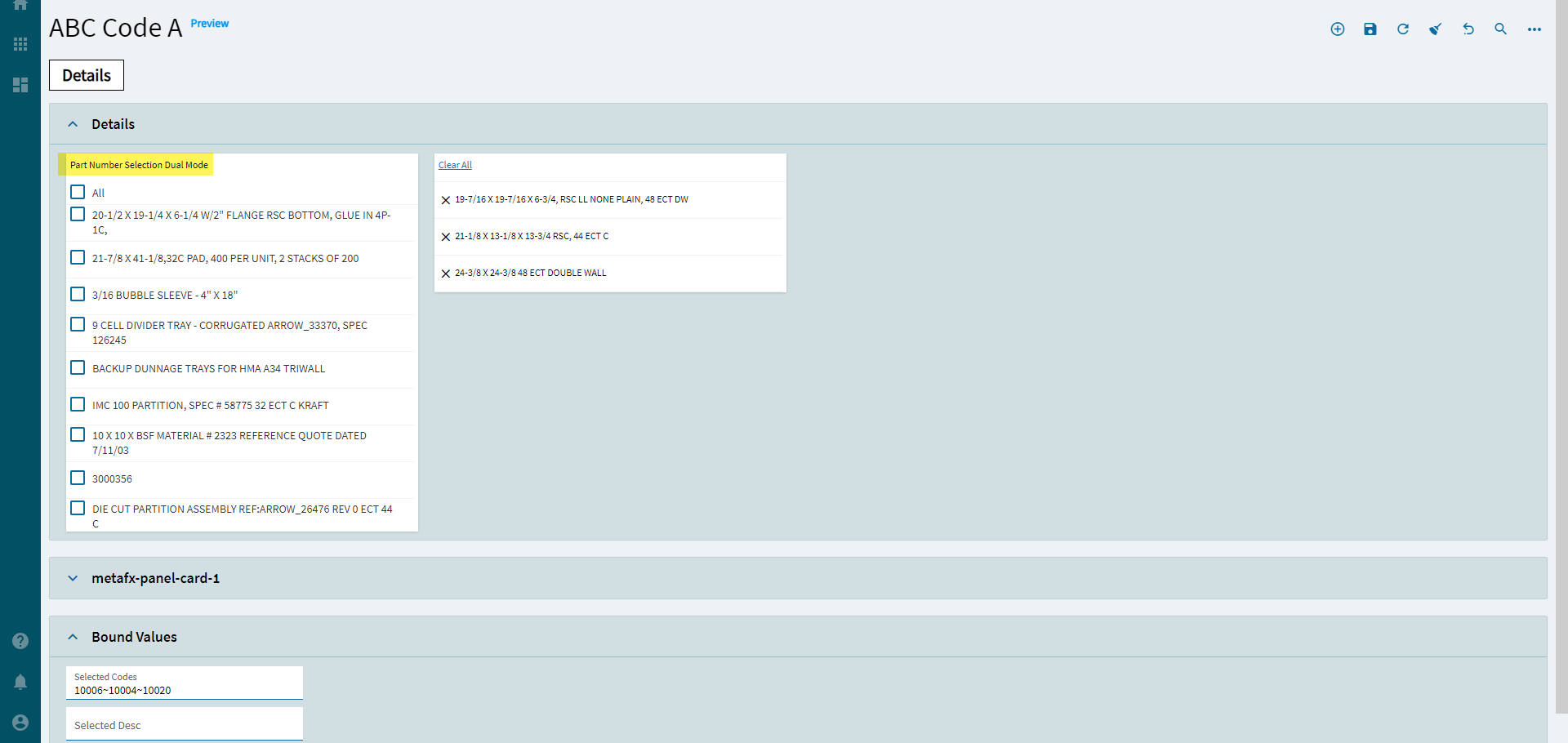

Figure D: Alignment

Figure E: Width

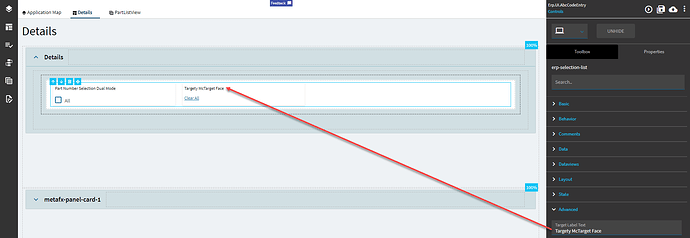

Figure F: Target Label Text

Figure G: Mode Type

Figure H: UI Mode

Figure I: Position Mode

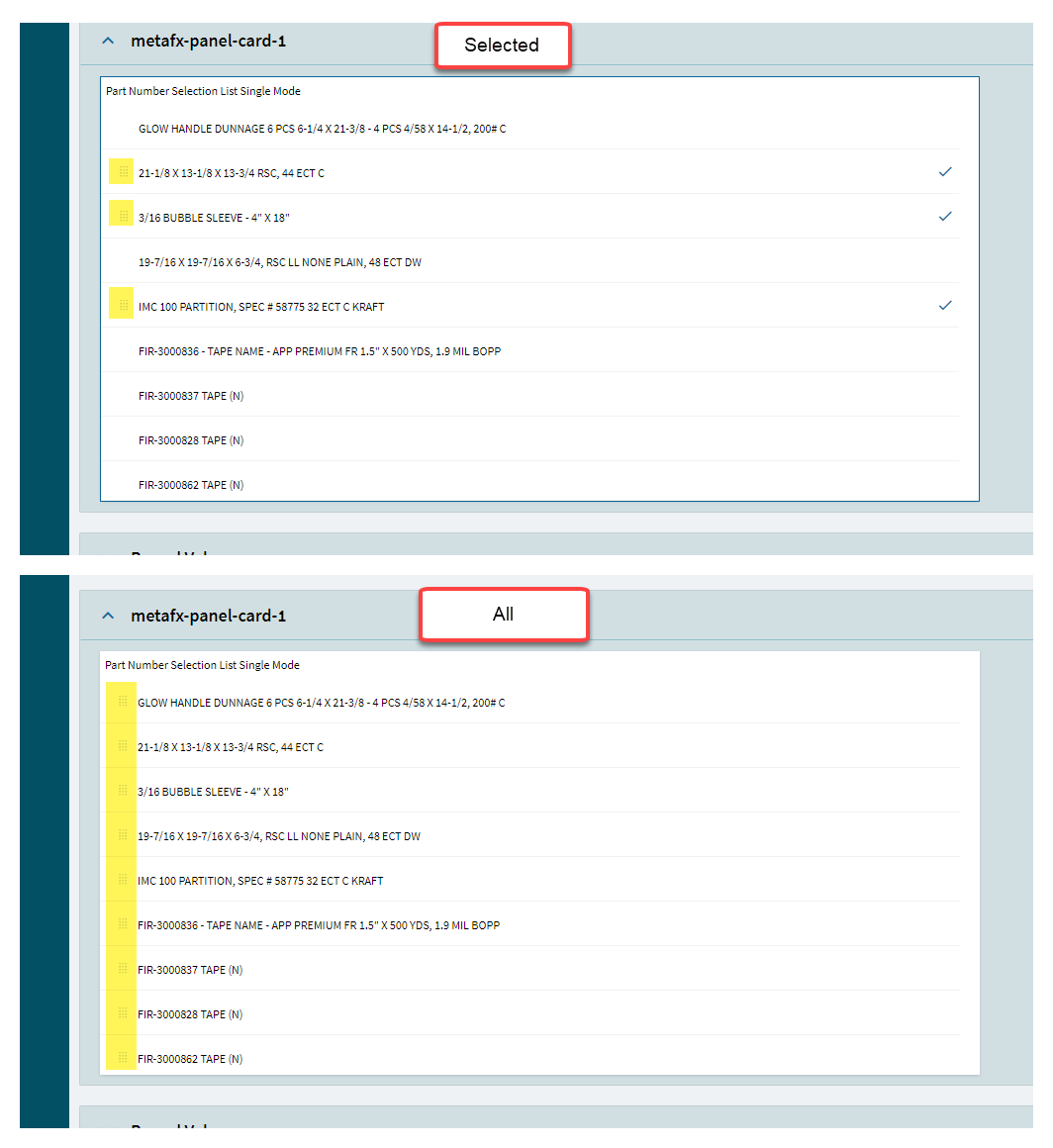

Figure J: Reorder

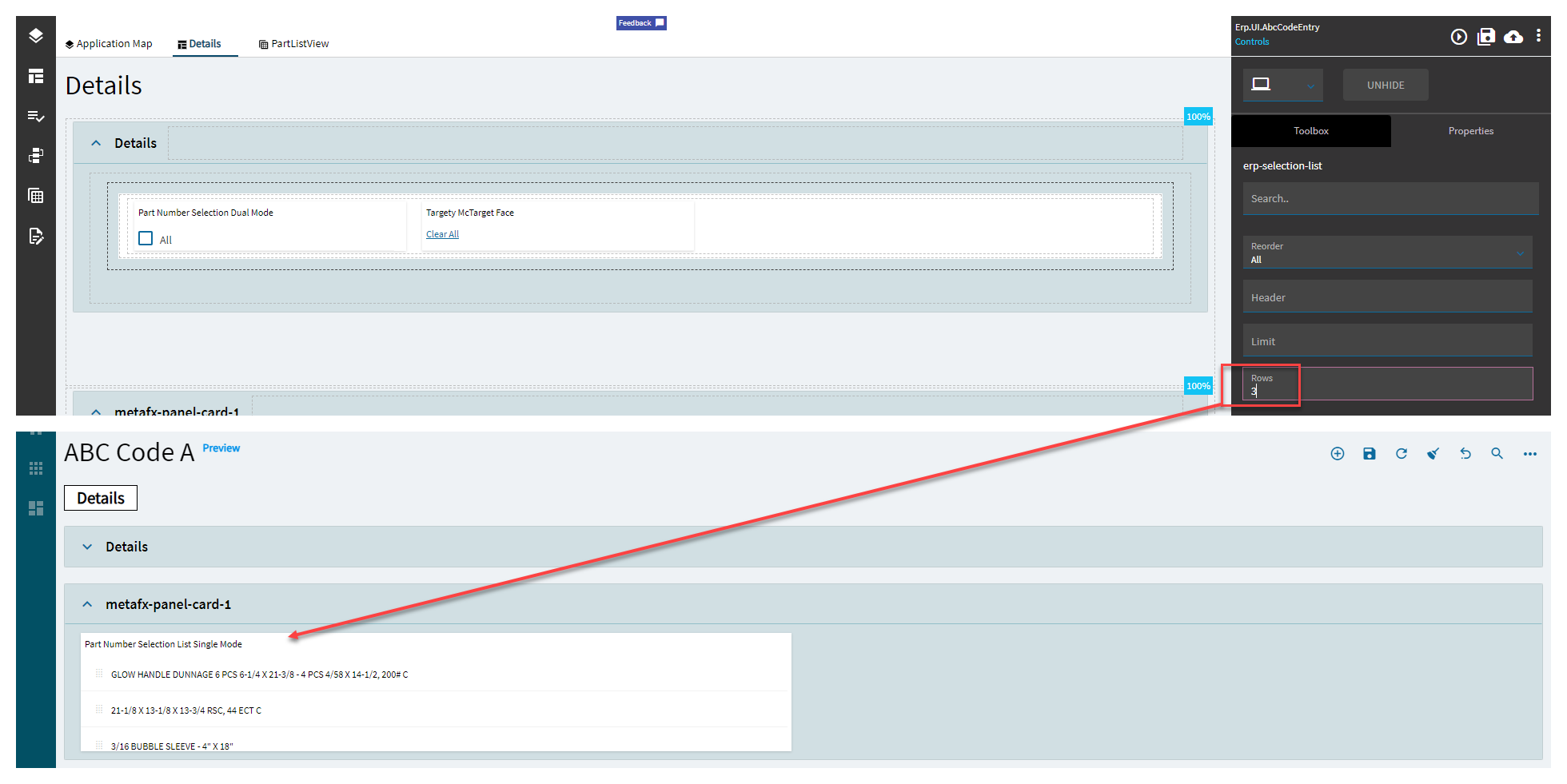

Figure K : Rows

---

More info on setup from an older post: How To: Kinetic Selectable List

[hmwillett (Hannah Willett)]

Shape [of you?]

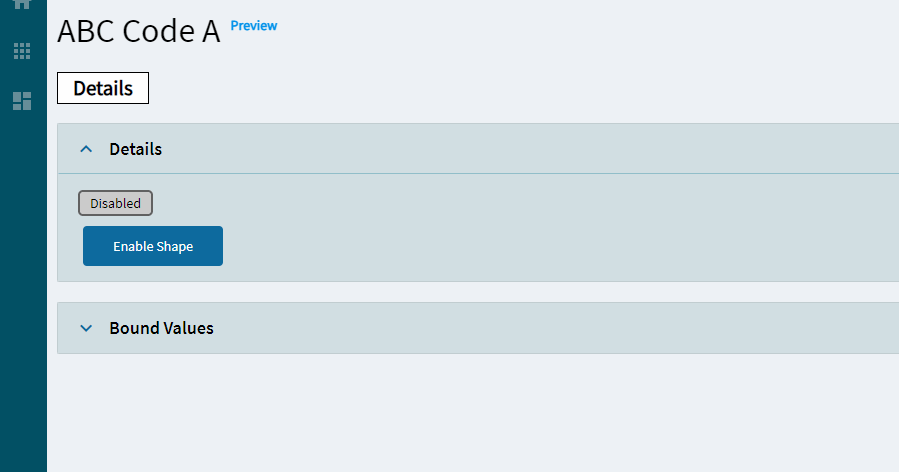

Allows a user to customize a color and shape based on different statuses.

Property Group	Property	Description
Basic	Id	Unique identifier for the control
Behavior	On Blur	Click this to create an OnBlur event for the control. On Blur is triggered when the control loses focus.
Behavior	On Create	Click this to create an OnCreate event for the control On Create is triggered when the control is painted to the GUI.

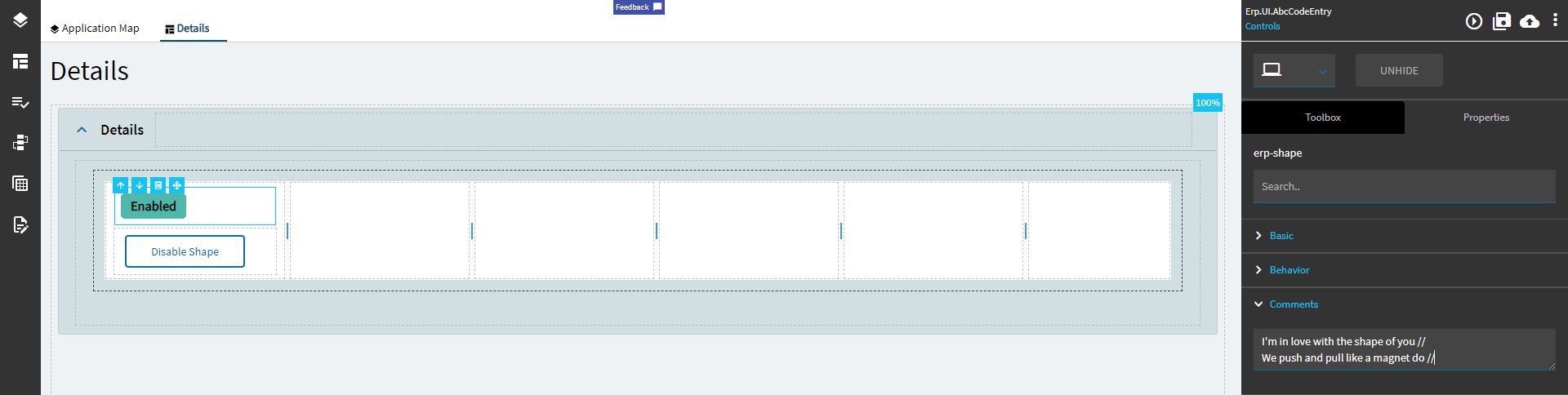

Comments	Comments	Add some developer notes to the control. These are not customer-facing and are only visible in App Studio (Fig. A)
Data	Key Field	Indicates that a bound component is a key field. If true, the field is enabled if there is no current record, allowing the user to select an existing record or create a new one.
Data	EpBinding	Bind the control to a DataView.Column. Set this to apply row rules to the shape.
Layout	Alignment	Sets the alignment of the control. (Fig. B)
State	Personalizable	If true, a user can personalize this component(hide/show)
State	Customizable	If true, a user can customize this component in child layers
State	Hidden	Hides the control from view.
State	Disabled	Disables the control. The control will not allow editing or focus.
State	Read Only	Makes the control read only so that it will not allow editing. The control can still be focused.
Advanced	Enabled Caption	Set the text to show when the shape is enabled.
Advanced	Disabled Caption	Set the text to show when the shape is disabled.
Advanced	Status	Set the status to change the color of the shape. Valid options include: OK, Warning, Stop, Global, and None which are Green, Yellow, Red, Blue, and None, respectively.

Figure A: Comments

Figure B: Alignment
